Volk Racing NE24 (Fitment and Availability Consult)

Volk Racing NE24 (Fitment and Availability Consult)

$100.00 USD
$1,162.00 USD $100.00 USD
Sale Sold out
Shipping calculated at checkout.

NE24 Fitment and Availability Consult

Wheel Consults go towards any future wheel orders made within 12 months. Non Refundable. Please include proper contact information email/phone number when ordering.

We will discuss fitment, size options, color options and availability to fine tune the right wheel spec for your build.

Entering a new generation of sports wheels.

Designed with a racing-based name for the first time in seven years, the new NE24 is a wheel that transforms conventional ideas and evokes a feel of “entering a new phase.”
The name of this new series consists of “N” deriving from the VOLK RACING Gr.N —the roots of the developed wheel, or Group N, the racing class for stock cars with a minimum level of modifications—and “E,” the common initial for the existing series such as TE, CE, and ZE, meaning “evolution.”
2021 will probably be a year of impact in a sense. A great number of new exciting cars are scheduled to be released by Japanese manufacturers. Also, there appears to be a flood of upcoming European C-segment sports models. These cars are elite vehicles that have been developed to compete on the global stage, and therefore wheels to be fitted to such vehicles need to match their novelty.

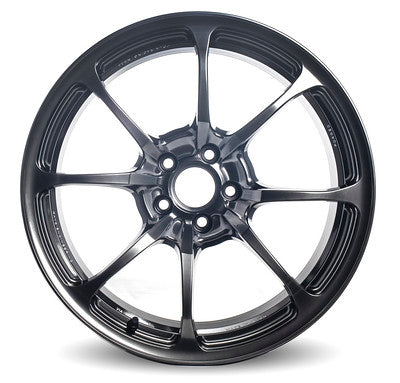

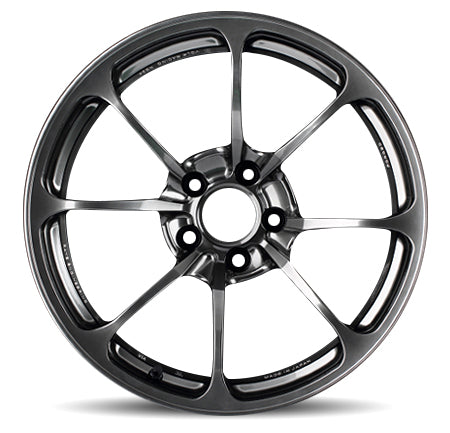

We never tried to be eccentric but still sought for something new to configure the 2×4 spoke of the NE24. Indeed, in an attempt to create an unconventional geometry, we not only secured sufficient mass at the center area, but also reduced the number of spokes while keeping a necessary volume at the center fastening area and rim joint area. Especially for the outer circumference, we adopted a high-performance design assuming that the wheel is used in combination with a tire with hard specifications.

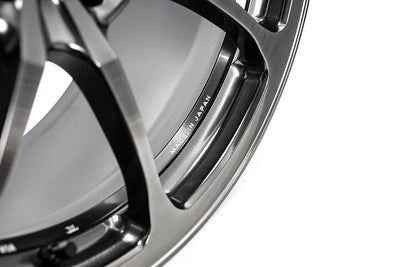

Making this design feasible essentially required steadily repeated trial and error by RAYS R&D Analytical Team. The skills to give shape to something new were necessary. In addition, using the latest forging technology also helped to achieve the delicate and slight spike. The undercut of the spoke was employed with a further increased level difference. This design is intended to ensure a stereoscopic look even when the narrow size is used.
A new thing is created by embodying something difficult to realize. We will tackle the creation of new styling and performance of street wheels, leveraging our skills and experience that have been acquired through design and development of racing wheels. We will produce both racing wheels and street wheels from the same team members and from the same factory. This is the world of VOLK RACING.

  • Method：Forged 1pc Wheel
  • RAYS original test：JWL+R Spec2

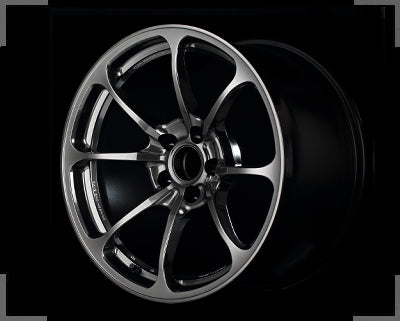

  • Color：Shining Black Metal (HM)
  • Included：Air Valve
  • Optional：Various “VR CAP MODEL-01”, EU parts set

Size Chart

INCH SIZE FACE INSET HOLE P.C.D. DRILL BORE BIG CALIPER CLEARANCE
18 7 1/2J FACE-1 48(34) 5 114.3 φ32-φ15 φ73.1
 ⊿
8J FACE-1 45(43) 5 100 φ29-φ15 φ65
 ▼
FACE-1 45(43) 5 114.3 φ32-φ15 φ73.1
 η▽θ■⊿＃▲
8 1/2J FACE-2 42(42) 5 100 φ29-φ15 φ65
 ▼
FACE-2 45(39) 5 114.3 φ32-φ15 φ73.1
 ηθ■⊿
FACE-2 35(49)
 η▽θ■⊿＃△○★
9J FACE-2 45(45) 5 114.3 φ32-φ15 φ73.1
 η▽θ■⊿＃△○★
9 1/2J FACE-3 43(40) 5 100 φ29-φ15 φ65
 ▼
FACE-3 38(45) 5 114.3 φ32-φ15 φ73.1
 η▽θ■⊿＃△○★◆
FACE-3 45(38)
 ηθ■⊿
FACE-4 22(41)
 η▽θ■⊿◎＃□▲α●★◇
10J FACE-4 33(37) 5 114.3 φ32-φ15 φ73.1
 ηθ■⊿◎□α●◇
10 1/2J FACE-4 15(61) 5 114.3 φ32-φ15 φ73.1
 η▽θ■⊿◎＃△○☆◇
11J FACE-5 13(59) 5 114.3 φ32-φ15 φ73.1
 η▽θ■⊿◎＃△○☆◇
12J FACE-5 26(59) 5 114.3 φ32-φ15 φ73.1
 η▽θ■⊿◎＃△○☆◇
Caution
  • [ MARK of BIG CALIPER CLEARANCE ]
  • ※Big caliper clearance marks are not suggestions for fitment.
  • ▼： IMPREZA (GDB 4POT), 86/BRZ Brembo
  • ▽： IMPREZA (GDB & GRB 4POT)
  • θ： WRX STI
  • η： WRX STI (6POT)
  • ■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
  • ⊿： IS-F
  • ◎： RC-F
  • ＃： SILVIA
  • △： SKYLINE (R34GT-R, CPV35, CKV36, HV37)
  • ▲： SKYLINE (R34 GT-R)
  • α： SKYLINE (CKV36)
  • ○： FAIRLADY Z (Z33, Z34)
  • ●： FAIRLADY Z (Z34)
  • ☆： LANCER EVO.(VII～IX, X)
  • ★： LANCER EVO.X
  • ◇： GT-R (R35/φ380, φ390 rotor)
  • ◆： GT-R (R35/φ380 rotor)
INCH SIZE FACE INSET HOLE P.C.D. DRILL BORE SAMPLE FITMENT
18 7 1/2J FACE-1 41 5 112 φ32-φ15 φ66.6 MINI JCW（F56）
8J FACE-1 45 5 112 φ32-φ15 φ66.6 GOLF
8 1/2J FACE-2 38 5 112 φ32-φ15 φ66.6 Audi A3, S3, RS3, A4, S4, Q3, BMW X1, X2
FACE-2 45 φ32-φ15 φ66.6 AUDI TT, VW GOLF R, BENZ AMG A35,A45
9J FACE-3 23 5 120 φ32-φ15 φ72.6 BMW M2 Fr
9 1/2J FACE-3 45 5 120 φ32-φ15 φ72.6 HONDA CIVIC FK8
FACE-4 20 5 112 φ32-φ15 φ66.6 TOYOTA SUPRA Fr
10J FACE-4 34 5 120 φ32-φ15 φ72.6 BMW M2 Rr
10 1/2J FACE-4 30 5 112 φ32-φ15 φ66.6 TOYOTA SUPRA Rr
Caution
  • All 5H-P.C.D.112/120: Cannot fit Mercedes(GL Class, GLS Class, R550 4Matic, R350 4Matic 2012-, ML63 4Matic, S550 Plug in Hybrid, V class[W447], GLE63S 4Matic), Rolls-Royce, Bentley, Maybach(57,62), BMW X5 (7seater), BMW X5 (F15), BMW X6 (Active Hybrid), Land Rover.
  • ※Fitments listed in this SAMPLE FITMENT are for reference only and do not guarantee inspection, clearance, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
  • ※ * ：Tuner size. (Tire and or wheel may interfere or protrude from the body/fender on normal based vehicles.



INCH SIZE FACE INSET HOLE P.C.D. DRILL BORE BIG CALIPER CLEARANCE
19 8J FACE-2 48 5 114.3 φ32-φ15 φ73.1
 ⊿
81/2J FACE-2 45 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿＃▲〓
FACE-2 38 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○★◇〓
9J FACE-2 38 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○☆◇〓
91/2J FACE-3 45 5 114.3 φ32-φ15 φ73.1
 θη■⊿◎〓
FACE-3 38 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○★◇〓
FACE-3 35 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○★◇〓
FACE-4 30 5 114.3 φ32-φ15 φ73.1
 η■⊿◎□α●◇〓
FACE-3 22 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○☆◇〓
10J FACE-4 35 5 114.3 φ32-φ15 φ73.1
 θη■⊿◎□α●◇〓
101/2J FACE-5 22 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○★◇〓
FACE-5 15 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○☆◇〓
11J FACE-5 15 5 114.3 φ32-φ15 φ73.1
 ▽θη■⊿◎＃△○☆◇〓
Caution
  • Hub clearance is the measurement to the center cap attachment. Measurements will differ depending on the center cap used. Please refer to the option parts tab for more information on center cap clearance.
  • [ MARK of BIG CALIPER CLEARANCE ]
  • ※Big caliper clearance marks are not suggestions for fitment.
  • ▽： IMPREZA (GDB & GRB 4POT)
  • θ： WRX STI
  • η： WRX STI (6POT)
  • ■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
  • ⊿： IS-F
  • ◎： RC-F
  • ＃： SILVIA
  • △： SKYLINE (R34GT-R, CPV35, CKV36, HV37,RV37/400R)
  • ▲： SKYLINE (R34 GT-R)
  • α： SKYLINE (CKV36)
  • □： SKYLINE (CKV36, HV37, RV37/400R)
  • ◇： GT-R (R35/φ380, φ390 rotor)
  • ○： FAIRLADY Z (Z33, Z34)
  • ●： FAIRLADY Z (Z34)
  • ☆： LANCER EVO.(VII～IX, X)
  • ★： LANCER EVO.X
  • 〓：GR YARIS (RZ)



INCH SIZE FACE INSET HOLE P.C.D. DRILL BORE CALIPER CLEARANCE
19 8J FACE-2 38 5 112 φ32-φ15 φ66.6 MINI JCW(F56)
81/2J FACE-2 45 5 108 φ32-φ15 φ73.1 LAND ROVER EVOQUE, DISCOVERY SPORT,
VOLVO XC40
FACE-2 45 5 112 φ32-φ15 φ66.6 VW GOLF 7*/7.5*, AUDI A4, TT
9J FACE-2 45 5 112 φ32-φ15 φ66.6 BENZ A45S
FACE-3 30 5 112 φ32-φ15 φ66.6 TOYOTA SUPRA(A90)Fr
FACE-3 23 5 120 φ32-φ15 φ72.6 BMW M2(F87)Fr
91/2J FACE-4 25 5 112 φ32-φ15 φ66.6 TOYOTA SUPRA(A90)Fr*
FACE-3 45 5 120 φ32-φ15 φ72.6 HONDA CIVIC(FK8*,FL5*)
FACE-3 35 5 120 φ32-φ15 φ72.6 HONDA CIVIC(FK8*,FL5*)
10J FACE-4 37 5 112 φ32-φ15 φ66.6 TOYOTA SUPRA(A90)Rr*
FACE-4 34 5 120 φ32-φ15 φ72.6 BMW M2(F87)Rr
101/2J FACE-4 35 5 112 φ32-φ15 φ66.6 TOYOTA SUPRA(A90) Rr*
11J FACE-5 35 5 112 φ32-φ15 φ66.6 TOYOTA SUPRA(A90) Rr*
Caution
  • All 5H-P.C.D.108/112/120: Cannot fit Volvo (XC90 Plug-in hybrid), Mercedes(GL Class, GLS Class, R550 4Matic, R350 4Matic 2012-, ML63 4Matic, S550 Plug-in Hybrid, V class[W447], GLE63S (4Matic), Rolls-Royce, Bentley, Maybach (57,62), BMW X5 (7seater), BMW X5 (F15), BMW X6 (Active Hybrid), Land Rover (only for 5H-120), TESLA (Model X).
  • ※Vehicles listed in CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
  • ※ * ：Tuner size. (Tire and or wheel may interfere or protrude from the body/fender on normal based vehicles.
