IAG Performance Stage 2.5 International Hybrid EJ25 Closed Deck Short Block, use w/ EJ20 Heads

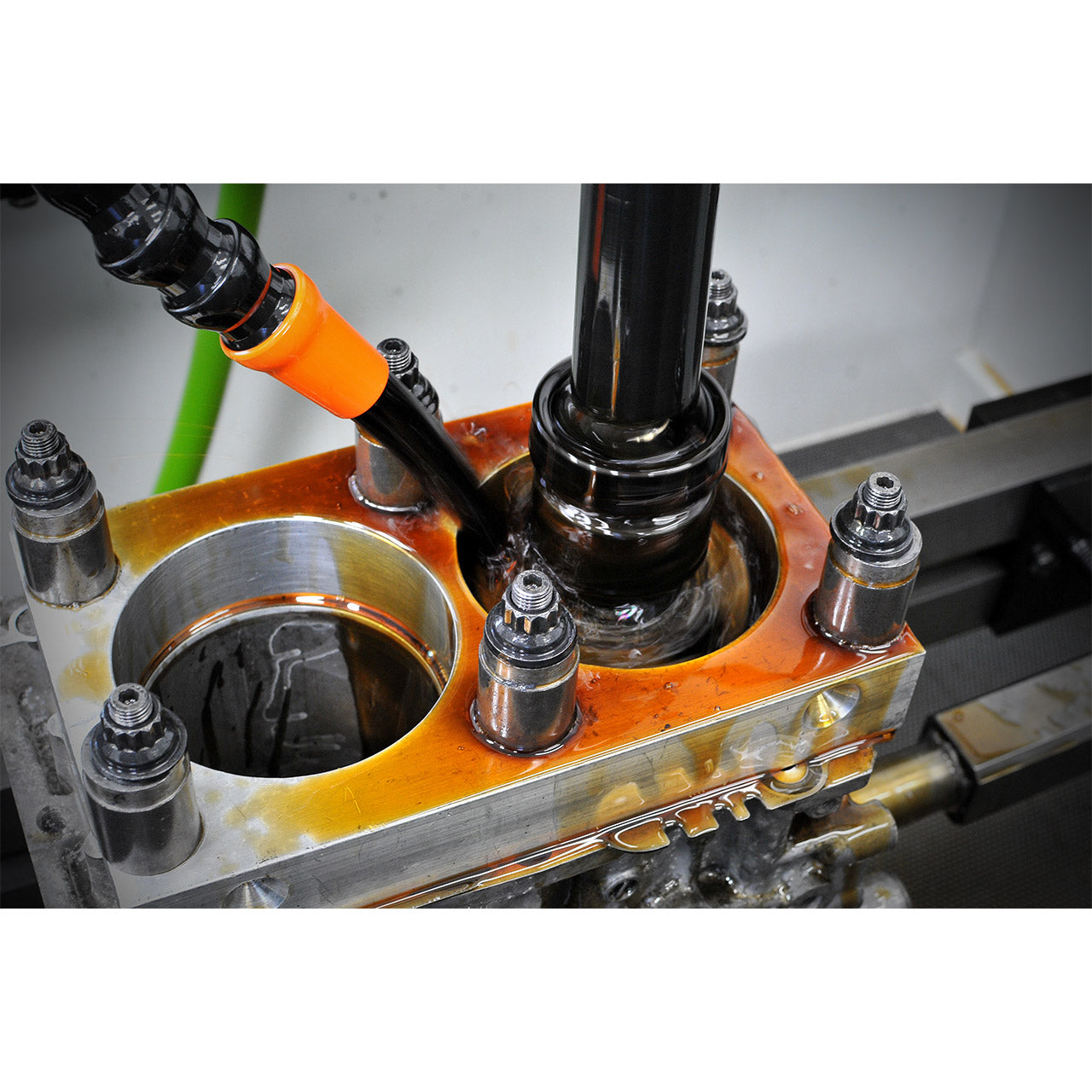

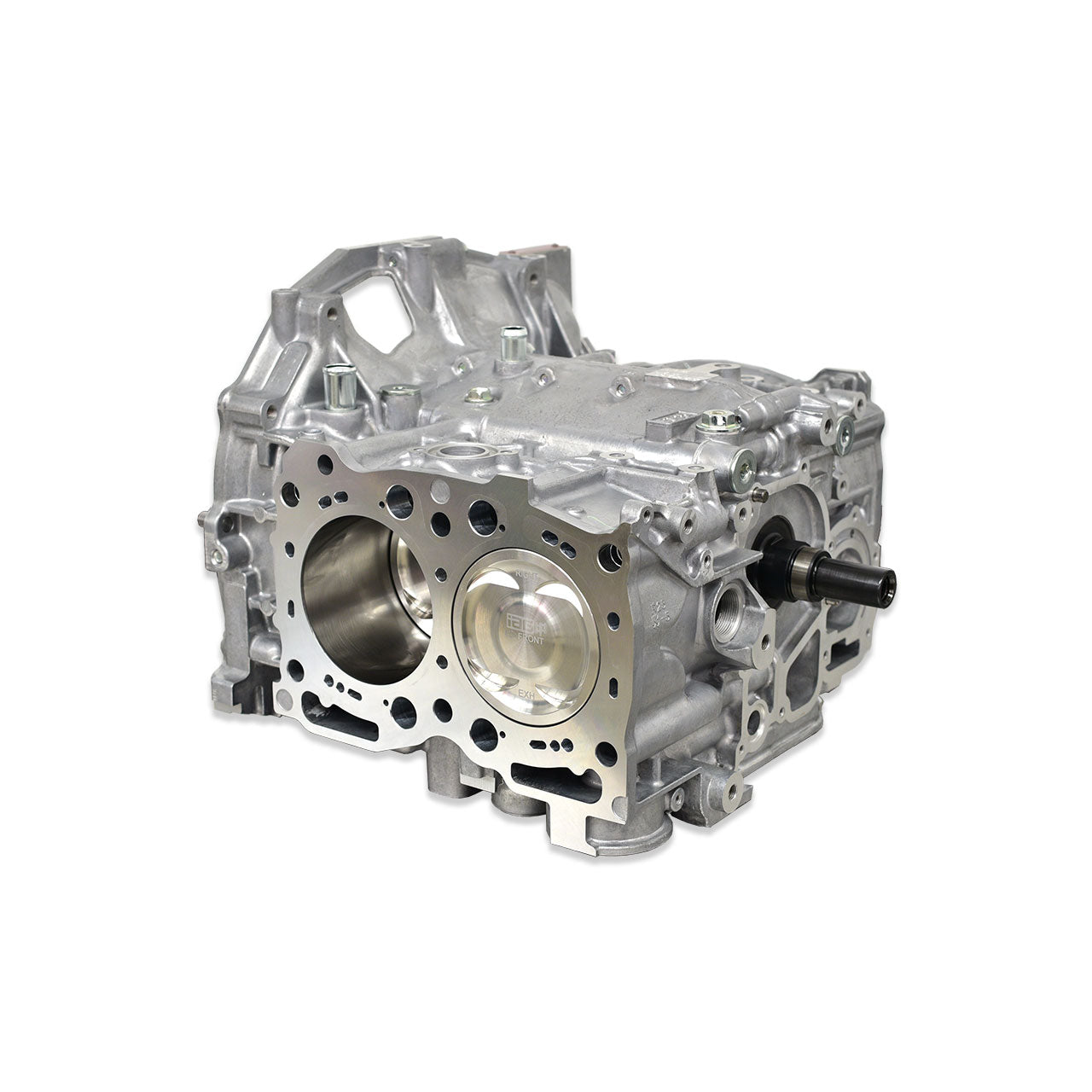

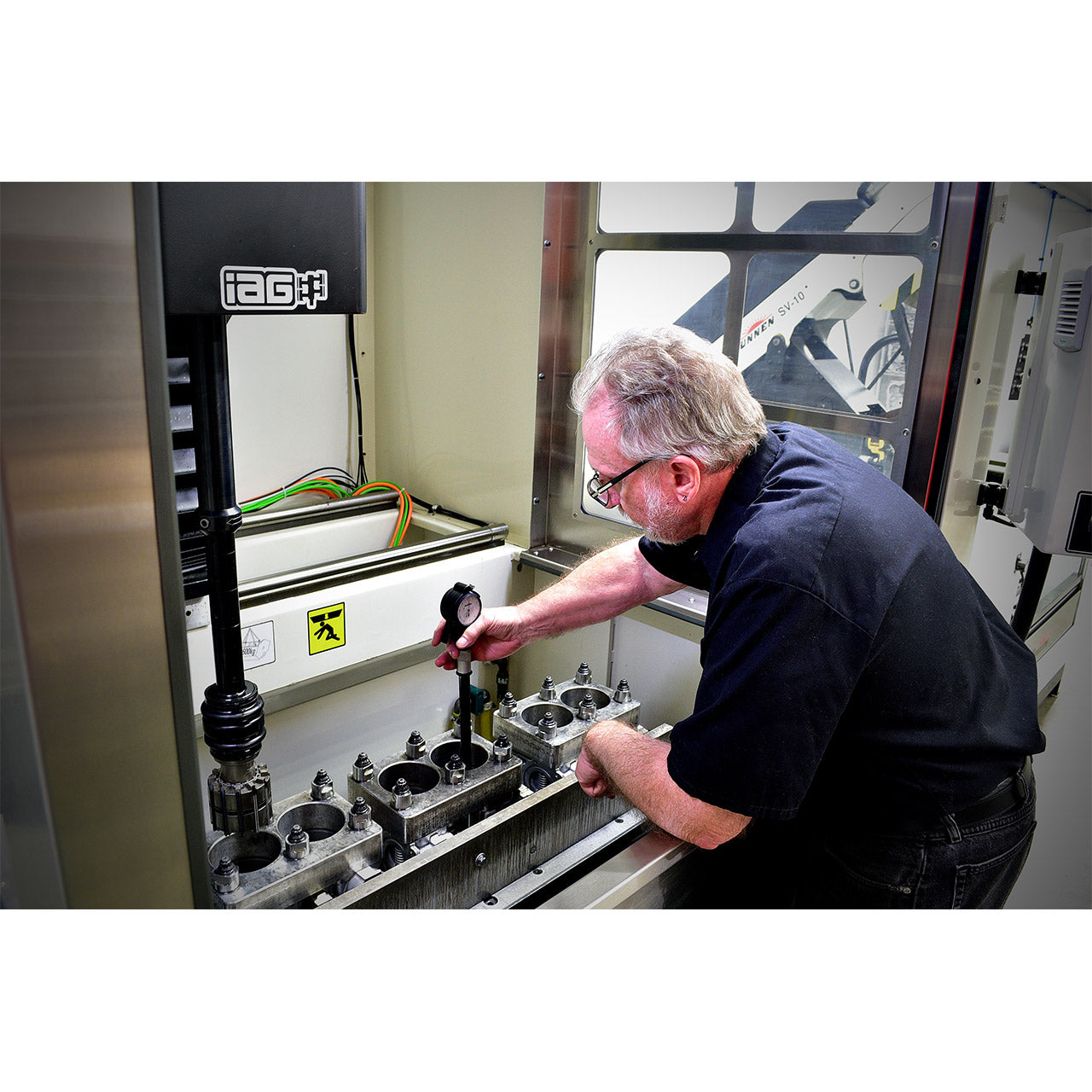

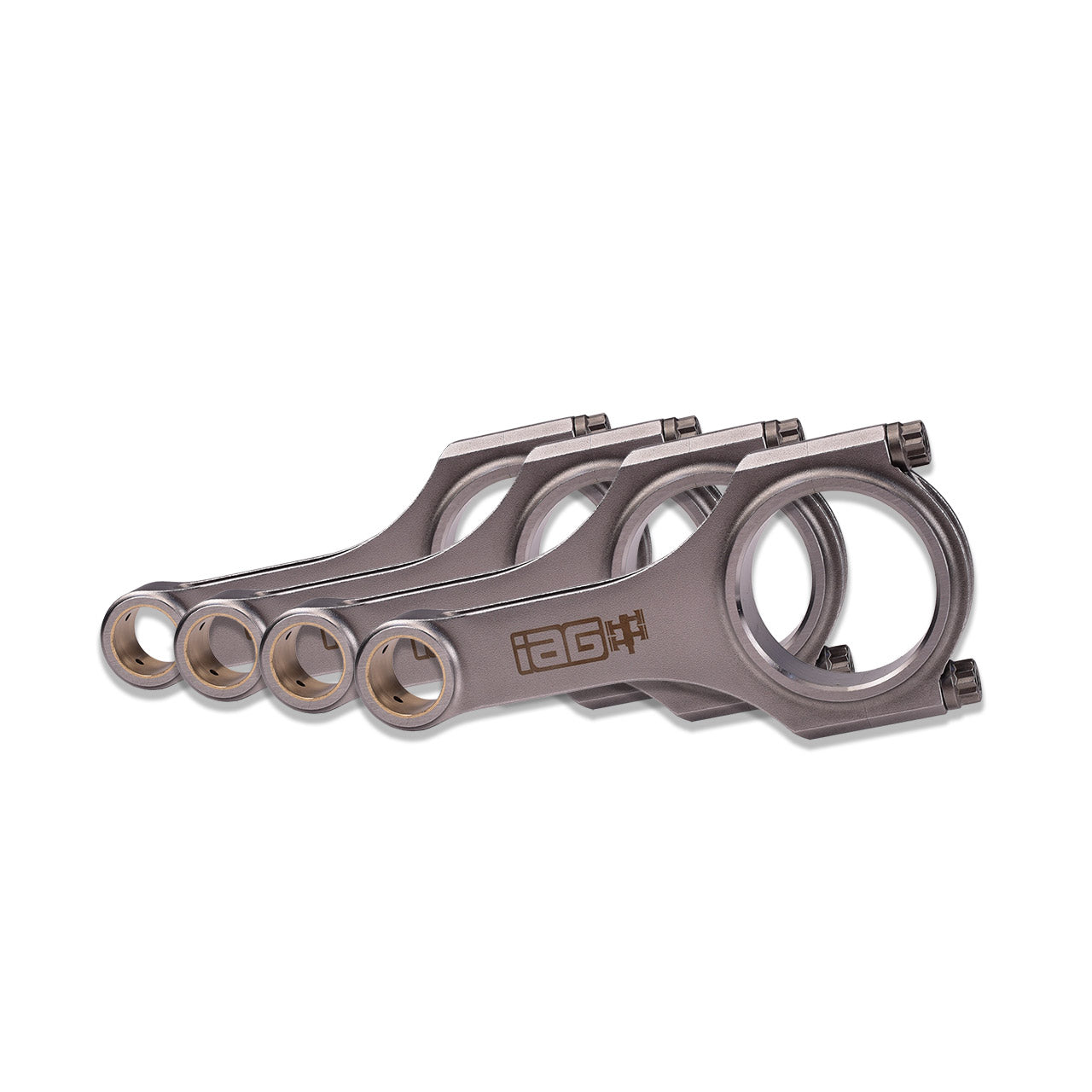

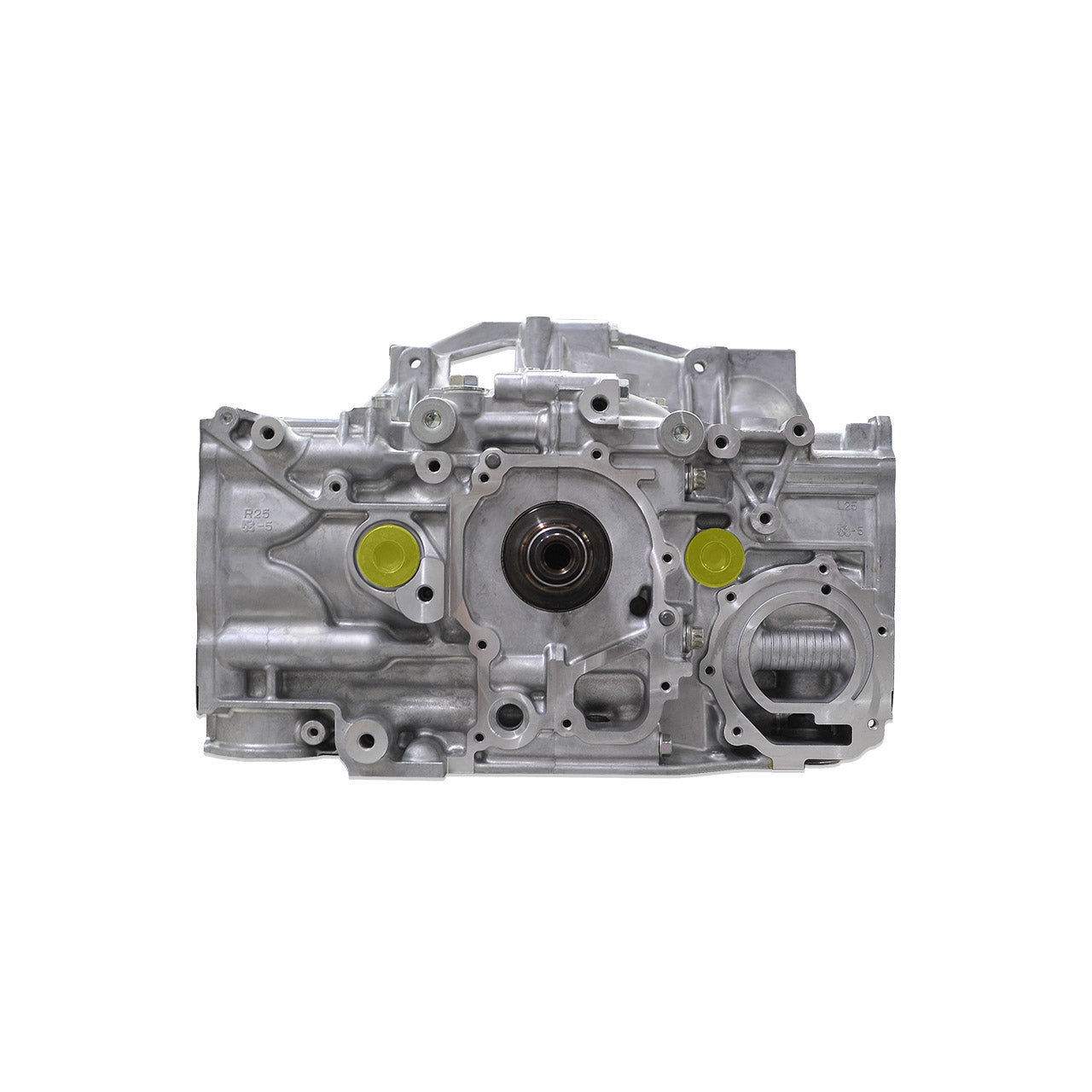

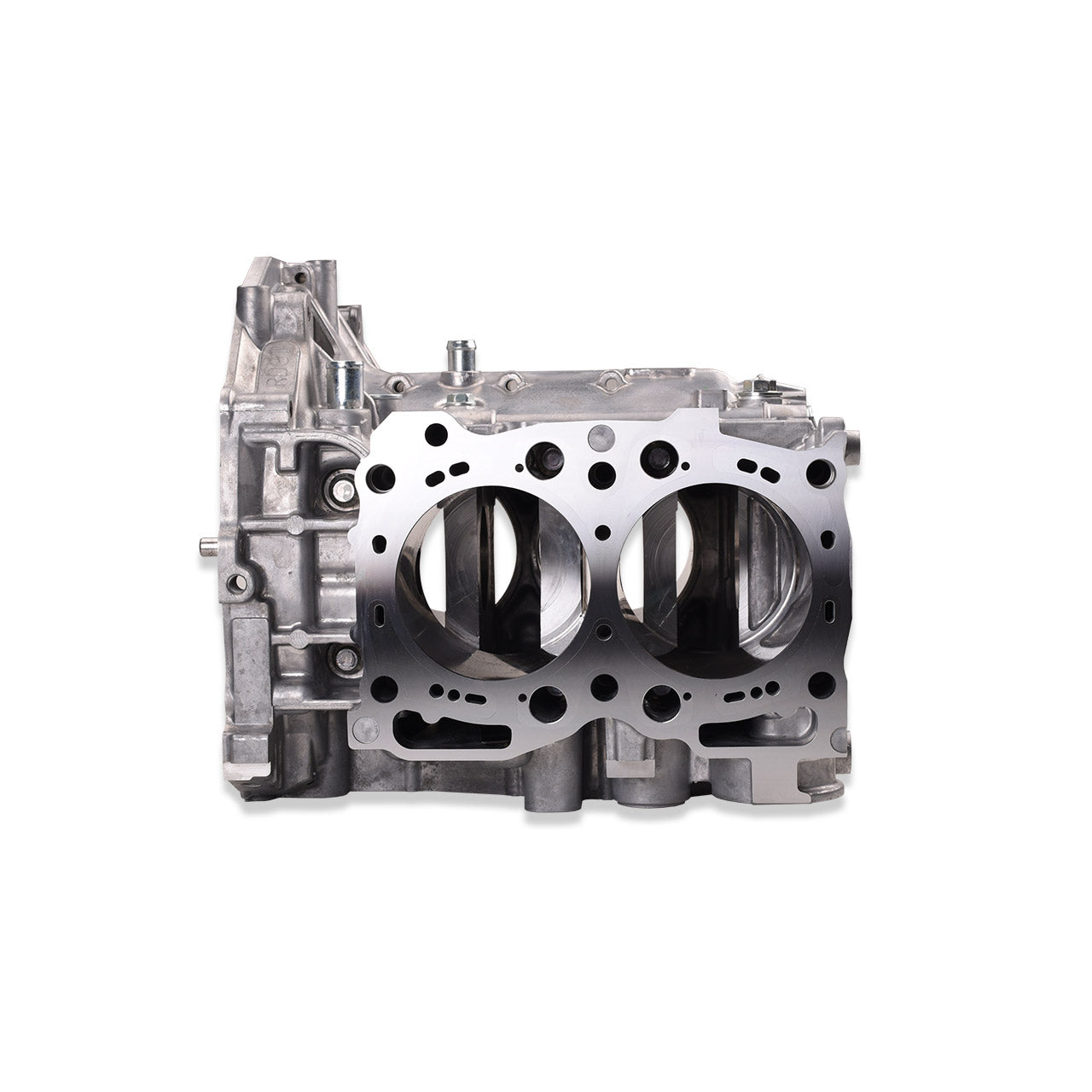

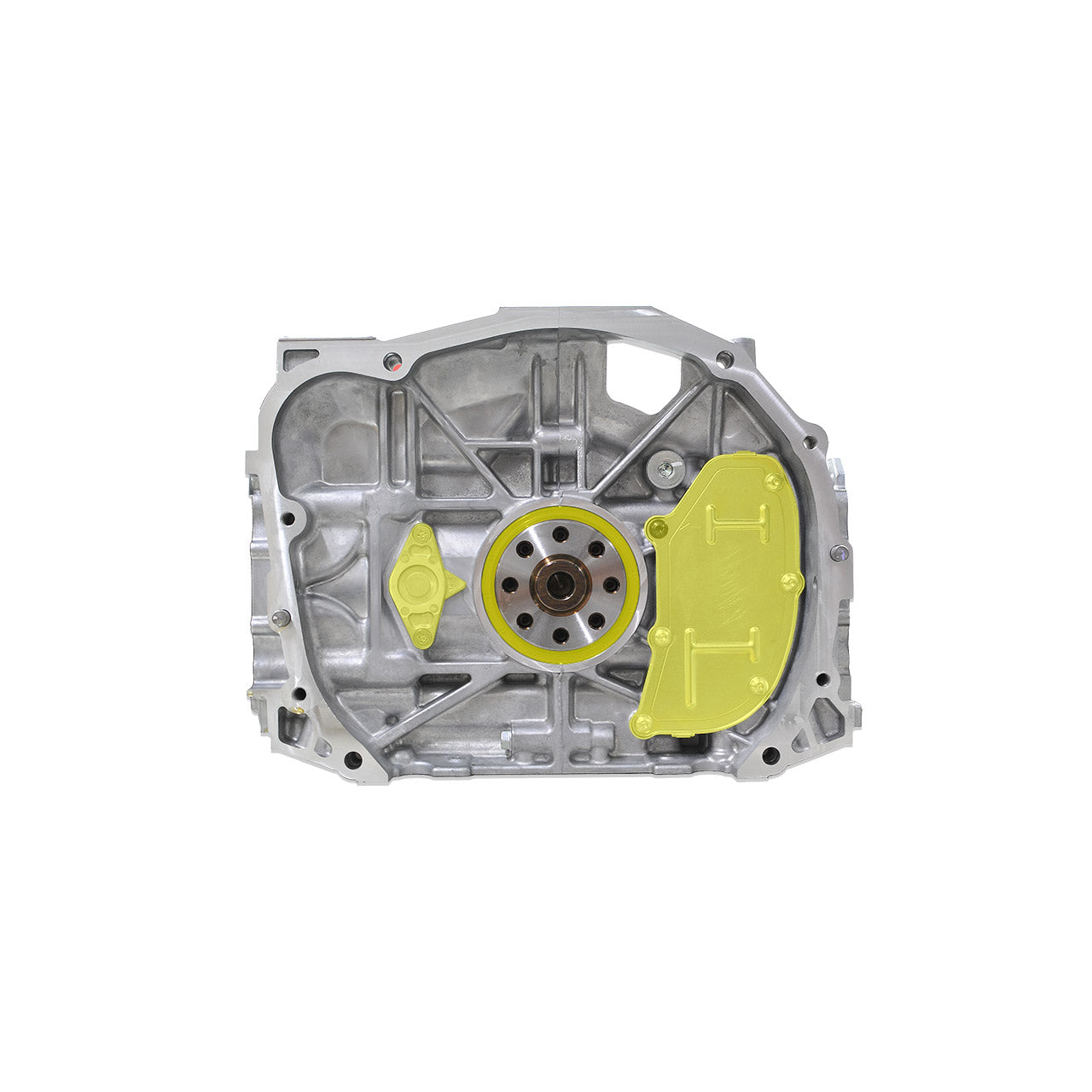

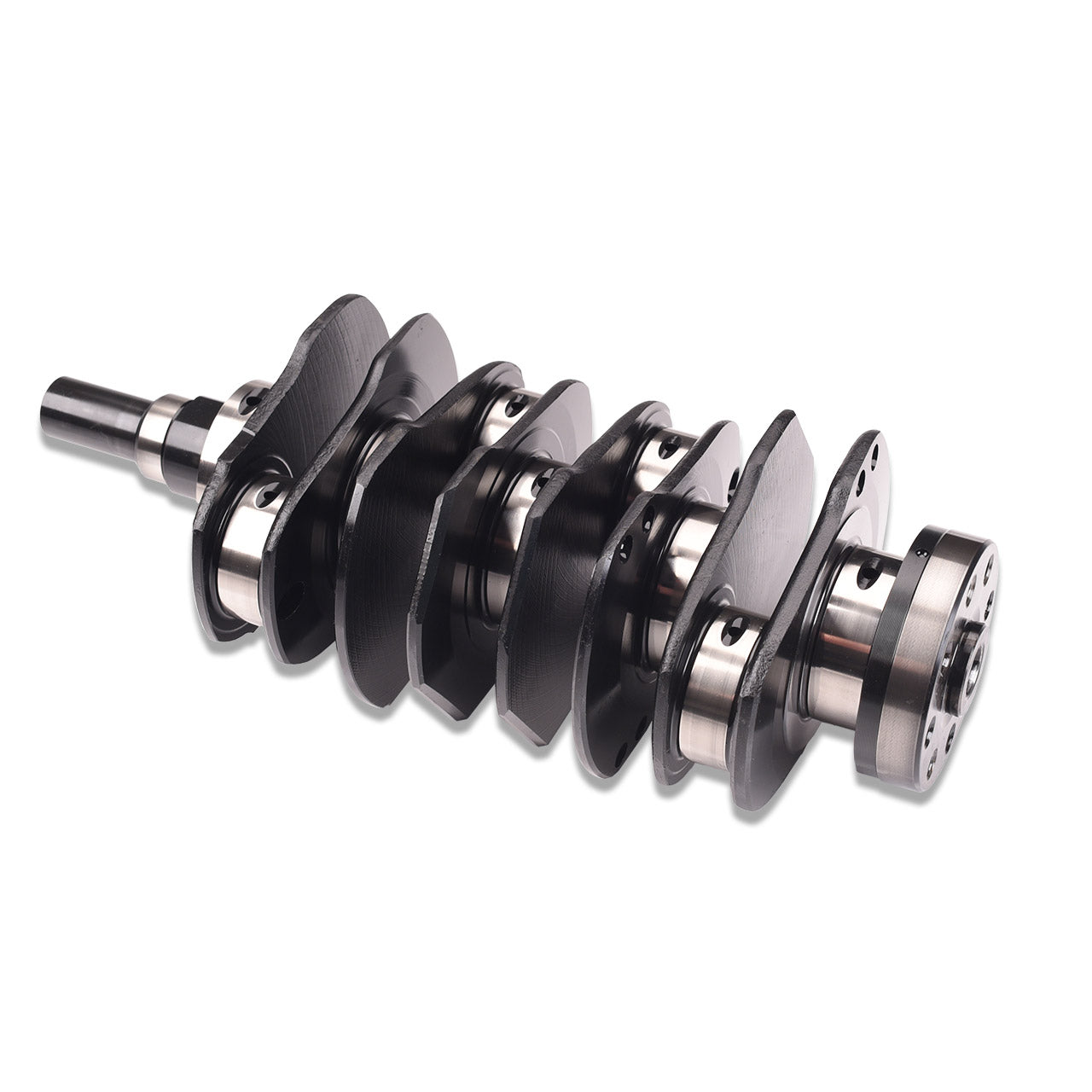

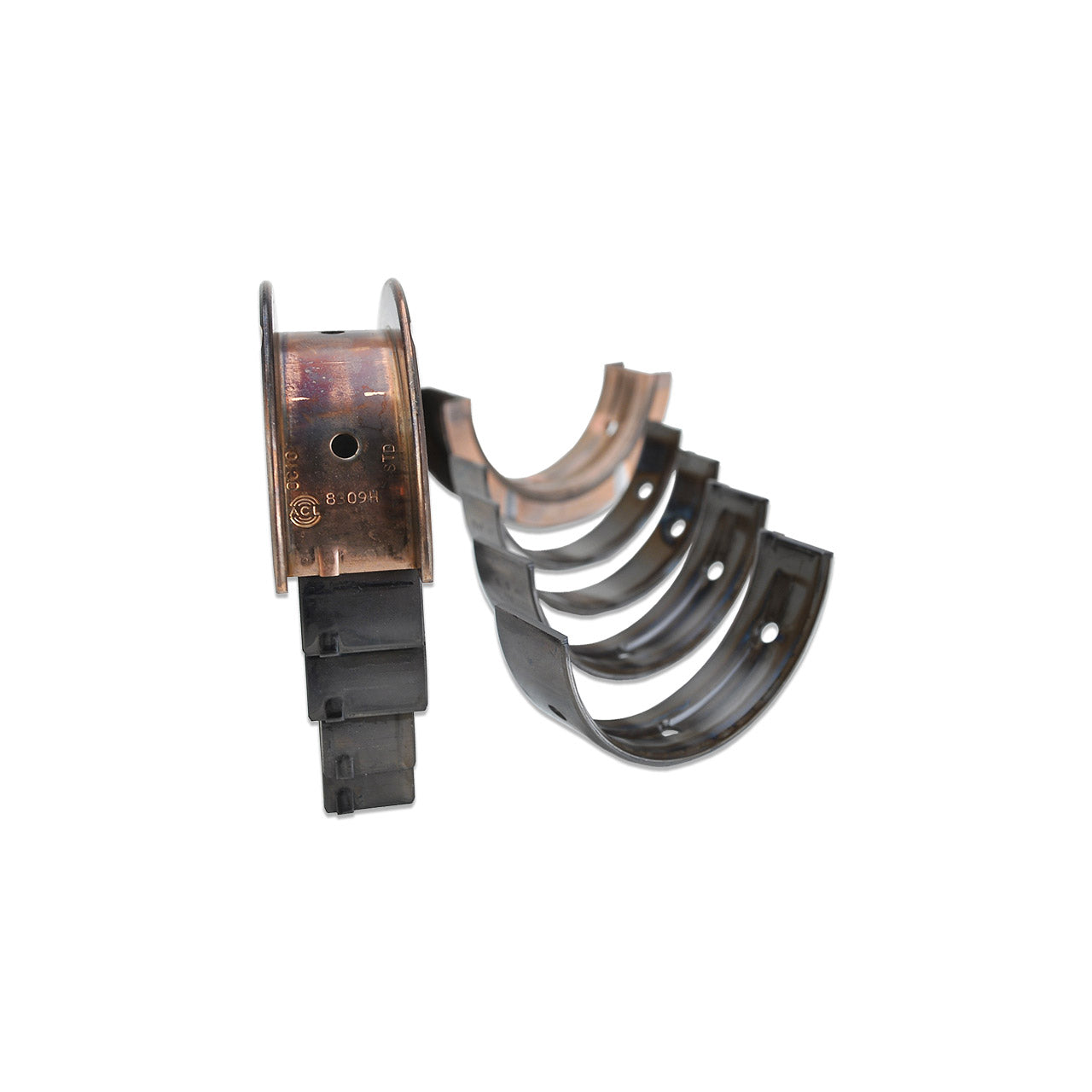

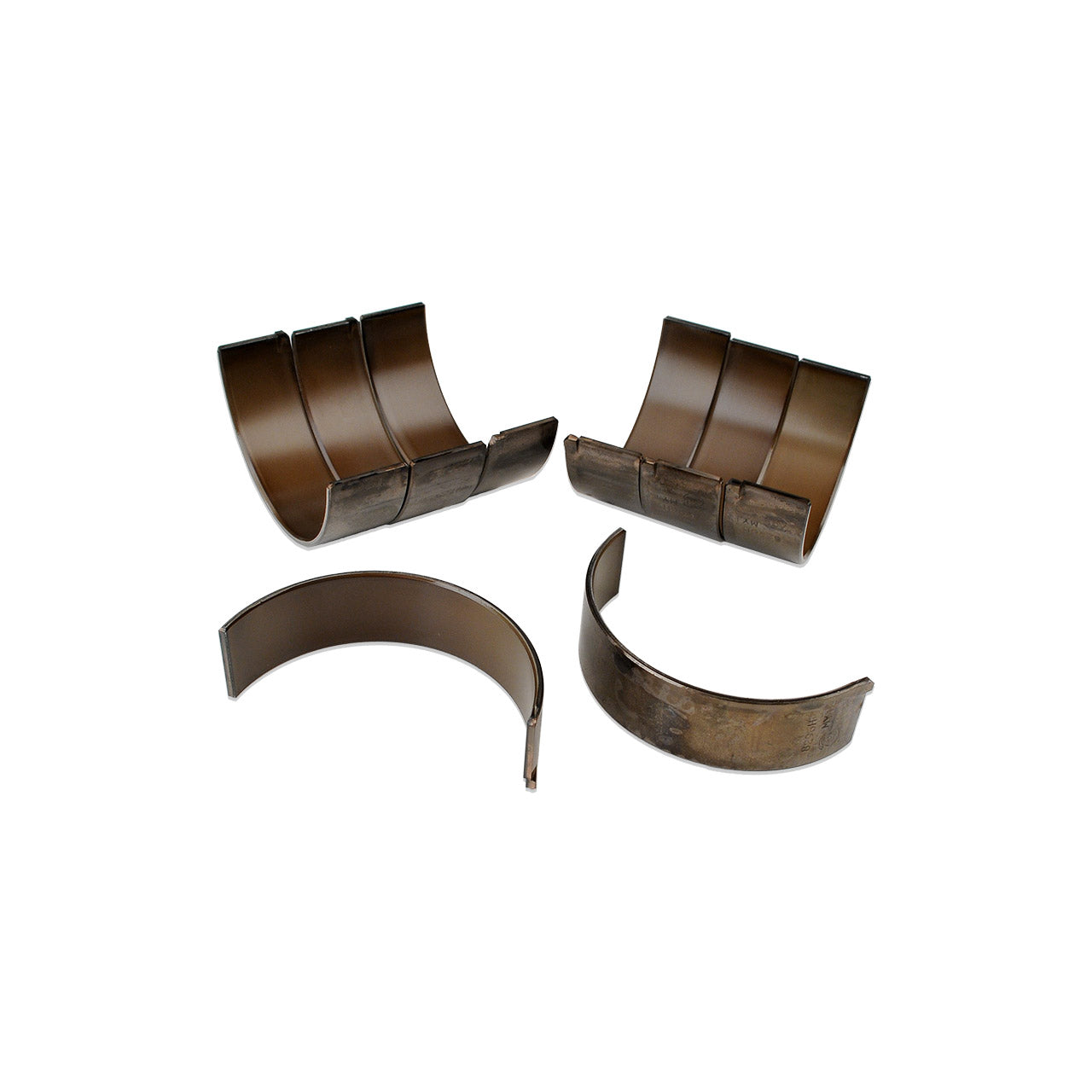

IAG Stage 2.5 International Hybrid Subaru EJ25 Closed Deck Short Block The IAG Stage 2.5 Short Block International Hybrid is designed for our clients who want a strong 2.5 liter shortblock to be used in conjunction with EJ20 cylinder heads. The short block starts with brand new Subaru 2.5L engine case halves. IAG machines the case halves assembled together in our Haas VF-4SS CNC mill to accept the IAG CLOSED Deck Inserts that transform the block into a solid deck. The unique inserts feature small passages that allow needed coolant flow to the deck surface. Next, the short block is Deck Plate bored and honed to 99.75mm in our in-house Sunnen SV-30 the most advanced automotive cylinder hone available. IAG's in-house honing process is able to set custom piston to wall clearances to best fit your needs. The modified case halves are then assembled using a new 2017+ Subaru 2.5L nitride treated STI crankshaft that is matched to ACL or King race main bearings. IAG-Spec Tuff H-Beam connecting rods and ARP rod bolts are utilized along with ACL or King race rod bearings. The case halves are sealed with new OEM main/case bolts and sealant (upgrading to ARP mains requires line honing). Finally, IAG-Spec 99.75mm JE FSR 2618 Forged Hybrid Pistons with .210" 9310 Steel Wrist Pins are added to finish the Stage 2.5 short block.
