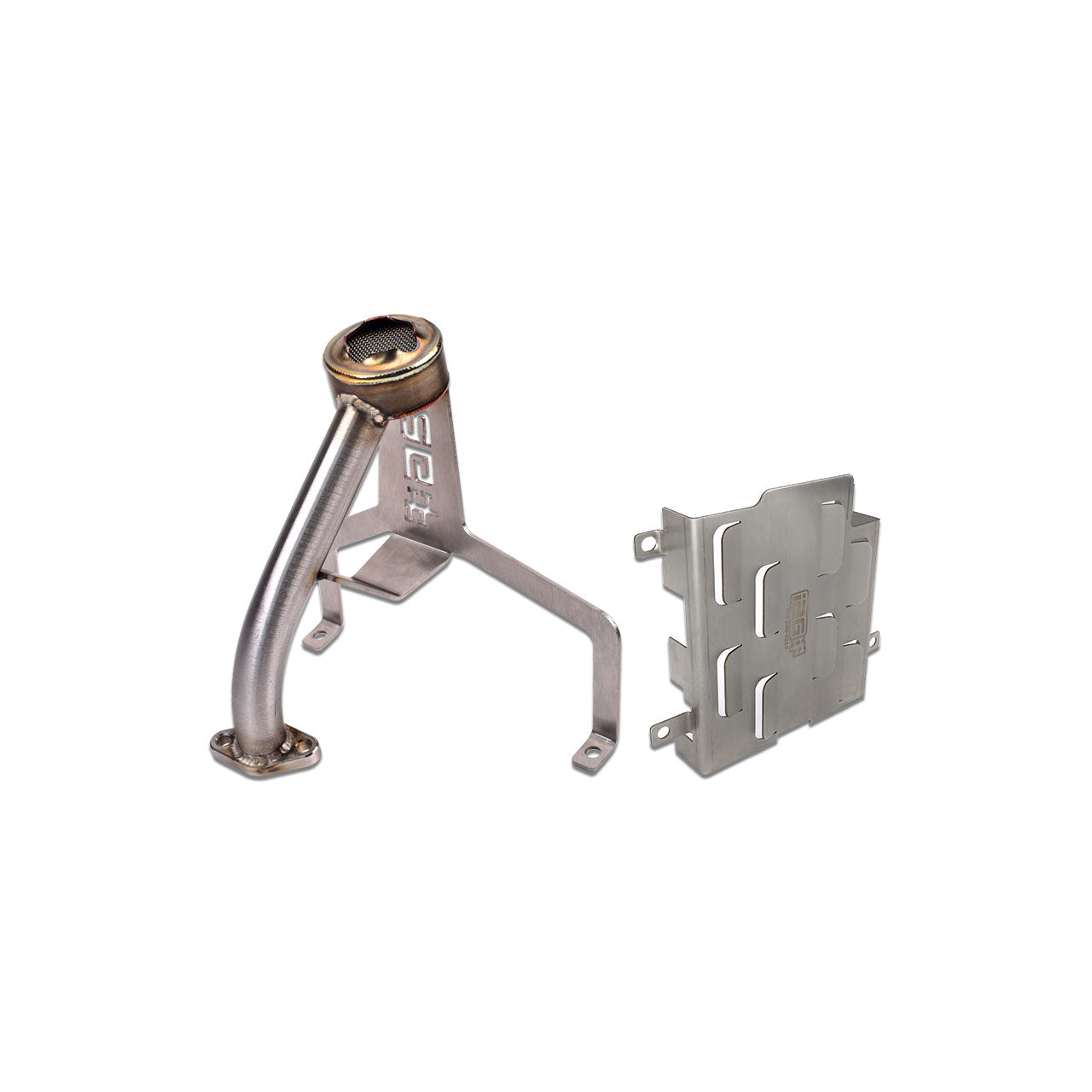

IAG Performance IAG-ENG-2220 IAG Upper Windage Tray & Oil Pickup Combo.

IAG's Upper Windage Tray & Oil Pickup is now available as a combo kit. The products fit the 2002-14 WRX, 2004-21 STI, 2005-09 Legacy GT, and 2004-13 Forester XT, Oil Pickup: The IAG Version 2 Subaru WRX / STI oil pickup replaces the OEM EJ25 oil pickup which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which in most cases destroys your motor from lack of oil pressure. The original IAG Performance pickup design has been improved in this all-new stainless steel version. To avoid the cracking failures seen in the OEM oil pickup tubes, the oil pickup is manufactured from stainless steel tubing that is 2x thicker than OEM. Additionally, it features a flange machined from 3/8" stainless steel to mate with the block, sealed with a Viton O-ring. The integrated heavy-duty stainless steel mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration. The TIG-welded oil pickup increased material thickness matched with the two-point heavy-duty mounting bracket helps ensure it does not fatigue and fail over time like an OEM unit, Windage Tray: The IAG Windage Tray is designed to limit potential blow-by in your Subaru's WRX / STI EJ engine during high rpm driving. The job of the windage tray is to help direct oil from the upper crankcase down into the lower crankcase and oil pan area. The precision-formed louvers direct oil downwards and help to prevent oil that is draining from the cylinder heads in the lower crankcase area from sloshing upwards into the path of the crankshaft and connecting rods, thus reducing aeration, The IAG V2 Subaru EJ25 Oil Pickup and Windage Tray is manufactured proudly in the United States at the IAG facility in Westminster, Maryland.

This Part Fits:

Year	Make	Model	Submodel	Notes
2005	Saab	9-2X	Aero
2006	Saab	9-2X	Aero
2004	Subaru	Baja	Turbo
2005	Subaru	Baja	Turbo
2006	Subaru	Baja	Turbo
2008	Subaru	Forester	2.5 XT
2008	Subaru	Forester	Sports 2.5 XT
2010	Subaru	Forester	XT Sports
2011	Subaru	Forester	XT Sports
2012	Subaru	Forester	XT Sports
2011	Subaru	Forester	XT Touring
2012	Subaru	Forester	XT Touring
2013	Subaru	Forester	XT Touring
2009	Subaru	Impreza	2.5 GT
2010	Subaru	Impreza	2.5 GT
2002	Subaru	Impreza	WRX
2003	Subaru	Impreza	WRX
2004	Subaru	Impreza	WRX
2005	Subaru	Impreza	WRX
2006	Subaru	Impreza	WRX
2007	Subaru	Impreza	WRX
2008	Subaru	Impreza	WRX
2009	Subaru	Impreza	WRX
2010	Subaru	Impreza	WRX
2011	Subaru	Impreza	WRX
2012	Subaru	Impreza	WRX
2013	Subaru	Impreza	WRX
2014	Subaru	Impreza	WRX
2010	Subaru	Impreza	WRX GT
2009	Subaru	Impreza	WRX Premium
2010	Subaru	Impreza	WRX Premium
2011	Subaru	Impreza	WRX Premium
2012	Subaru	Impreza	WRX Premium
2013	Subaru	Impreza	WRX Premium
2014	Subaru	Impreza	WRX Premium
2010	Subaru	Impreza	WRX SE
2004	Subaru	Impreza	WRX STI
2005	Subaru	Impreza	WRX STI
2006	Subaru	Impreza	WRX STI
2007	Subaru	Impreza	WRX STI
2008	Subaru	Impreza	WRX STI
2009	Subaru	Impreza	WRX STI
2010	Subaru	Impreza	WRX STI
2011	Subaru	Impreza	WRX STI
2012	Subaru	Impreza	WRX STI
2013	Subaru	Impreza	WRX STI
2014	Subaru	Impreza	WRX STI
2010	Subaru	Impreza	WRX STI Special Edition
2006	Subaru	Impreza	WRX TR
2007	Subaru	Impreza	WRX TR
2010	Subaru	Legacy	2.5GT
2011	Subaru	Legacy	2.5GT
2012	Subaru	Legacy	2.5GT
2006	Subaru	Legacy	GT spec.B
2007	Subaru	Legacy	GT spec.B
2008	Subaru	Legacy	GT spec.B
2009	Subaru	Legacy	GT spec.B
2008	Subaru	Outback	2.5 XT
2005	Subaru	Outback	XT
2006	Subaru	Outback	XT
2007	Subaru	Outback	XT
2008	Subaru	Outback	XT
2005	Subaru	Outback	XT Limited
2006	Subaru	Outback	XT Limited
2007	Subaru	Outback	XT Limited
2008	Subaru	Outback	XT Limited
2009	Subaru	Outback	XT Limited
2013	Subaru	WRX	Base
2014	Subaru	WRX	Base
2013	Subaru	WRX	Limited
2014	Subaru	WRX	Limited
2012	Subaru	WRX	STI
2013	Subaru	WRX	STI
2014	Subaru	WRX	STI
2015	Subaru	WRX	STI
2016	Subaru	WRX	STI
2013	Subaru	WRX STI	Base
2014	Subaru	WRX STI	Base
2015	Subaru	WRX STI	Base
2016	Subaru	WRX STI	Base
2017	Subaru	WRX STI	Base
2018	Subaru	WRX STI	Base
2019	Subaru	WRX STI	Base
2020	Subaru	WRX STI	Base
2021	Subaru	WRX STI	Base
2020	Subaru	WRX STI	Kanrai Edition
2015	Subaru	WRX STI	Launch Edition
2015	Subaru	WRX STI	Limited
2016	Subaru	WRX STI	Limited
2017	Subaru	WRX STI	Limited
2018	Subaru	WRX STI	Limited
2019	Subaru	WRX STI	Limited
2020	Subaru	WRX STI	Limited
2021	Subaru	WRX STI	Limited
2019	Subaru	WRX STI	S209
2016	Subaru	WRX STI	Series.HyperBlue
2017	Subaru	WRX STI	Sport
2018	Subaru	WRX STI	Sport
2019	Subaru	WRX STI	Sport
2020	Subaru	WRX STI	Sport
2018	Subaru	WRX STI	STI
2019	Subaru	WRX STI	STI
2020	Subaru	WRX STI	STI
2014	Subaru	WRX STI	Tsurugi Edition
2018	Subaru	WRX STI	Type RA
