IAG Performance IAG-ENG-1206 IAG Stage 2 FA20 DIT Subaru Short Block for 2015-21 WRX.

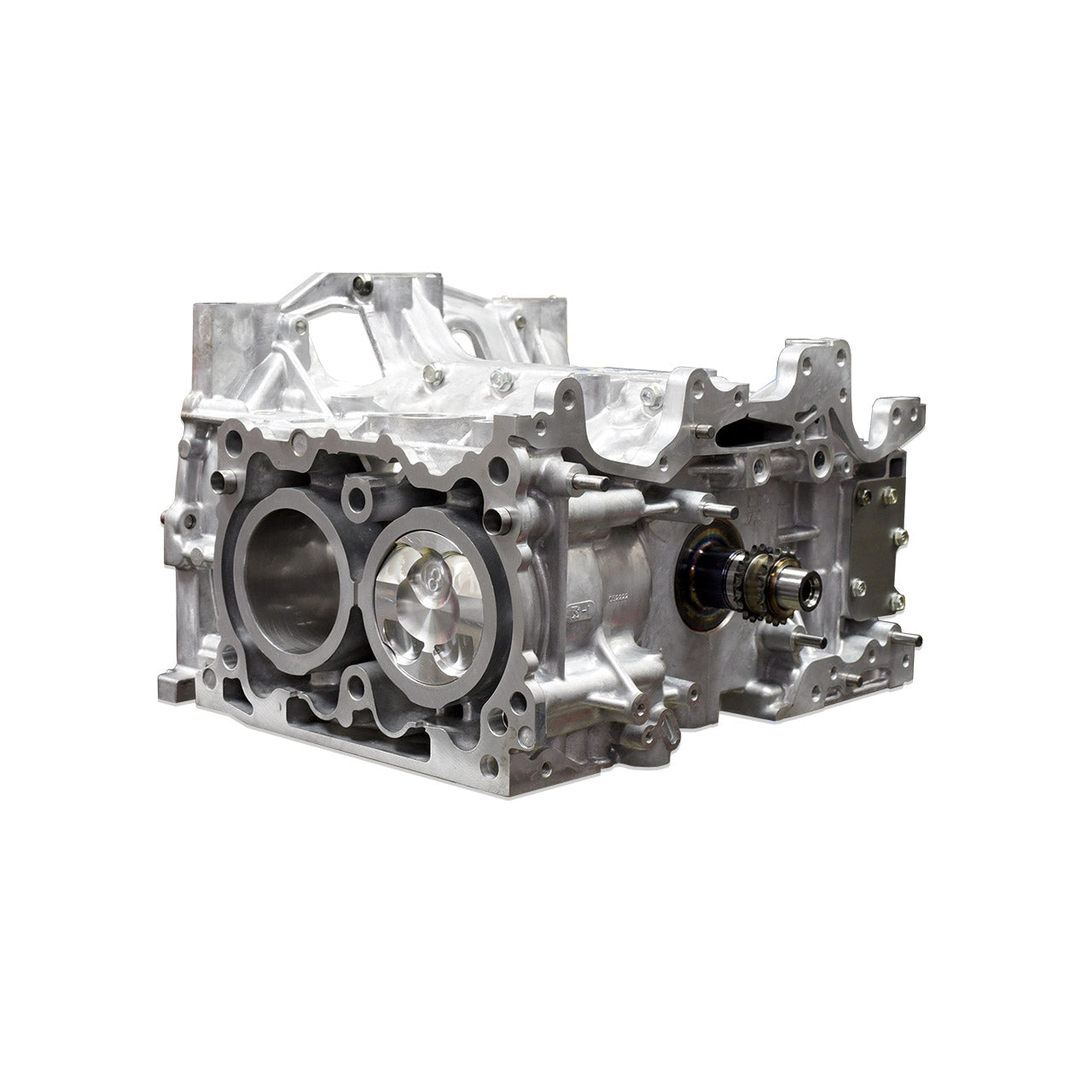

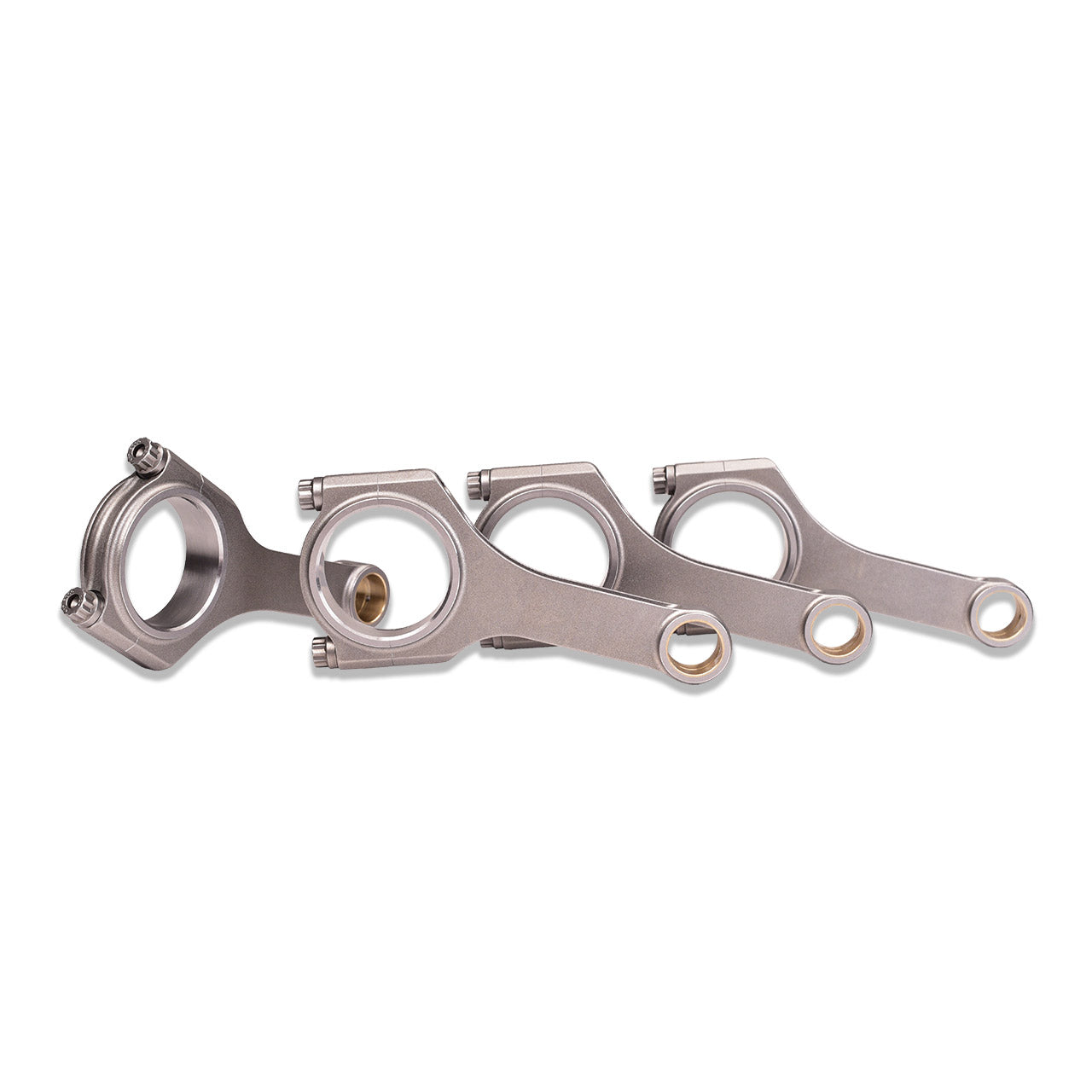

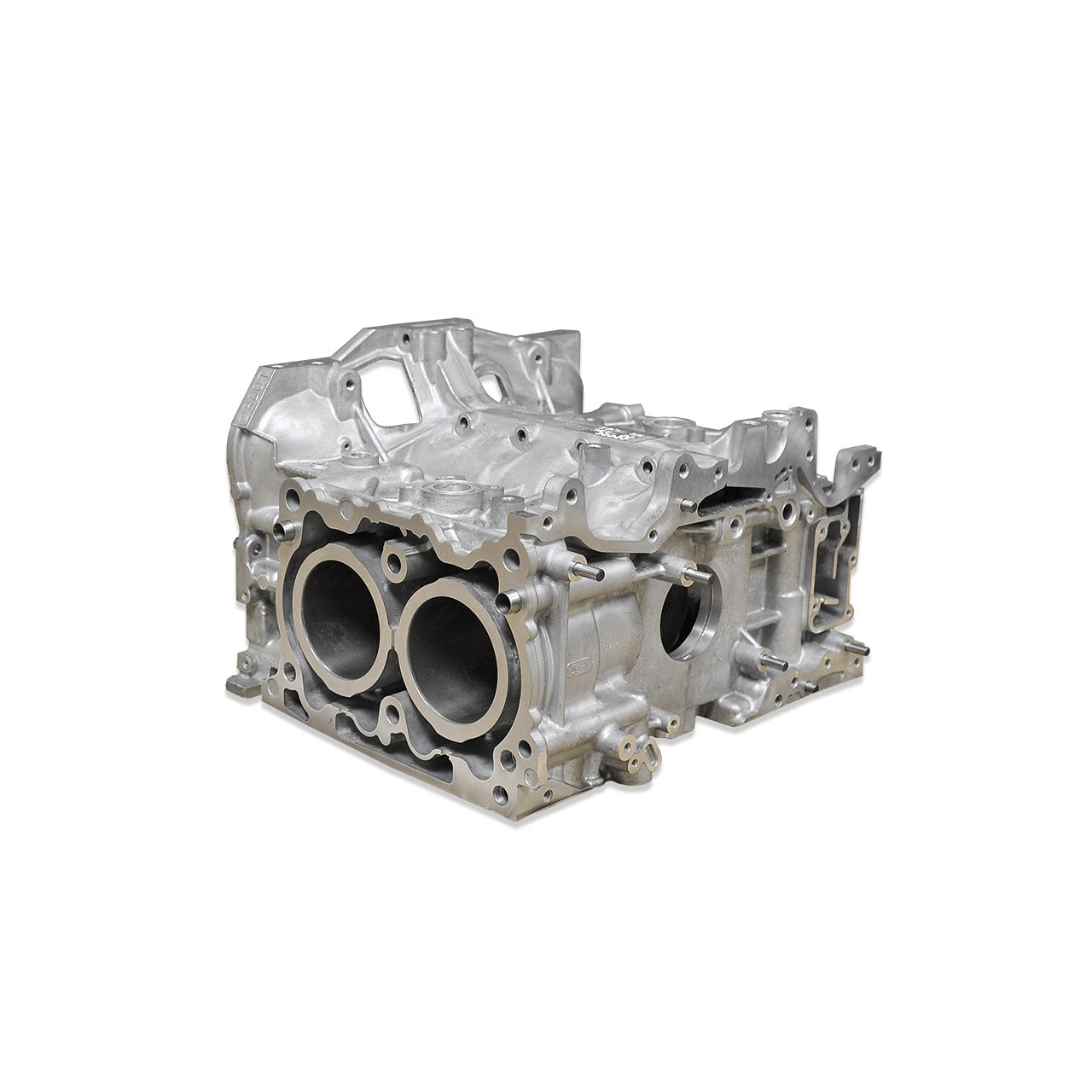

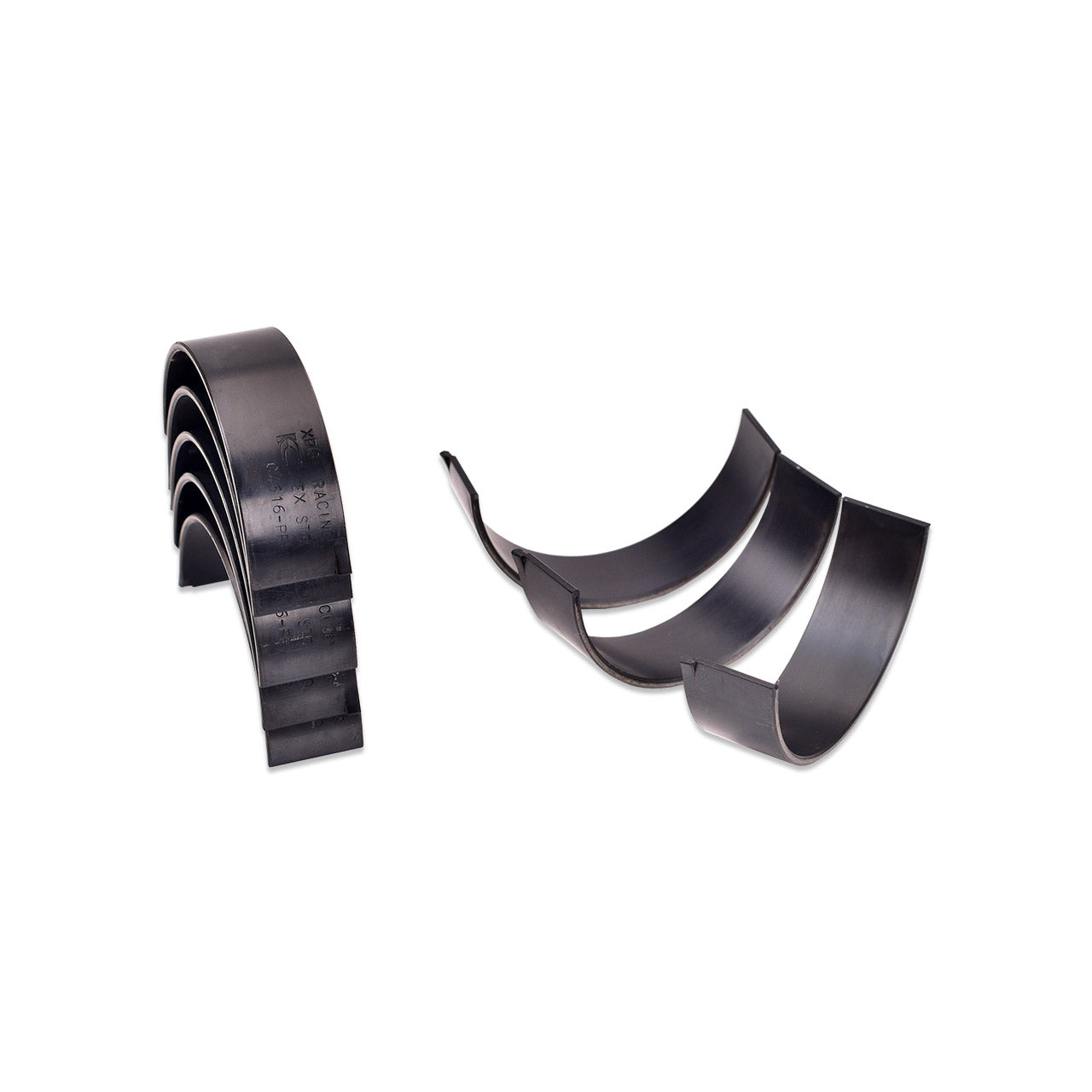

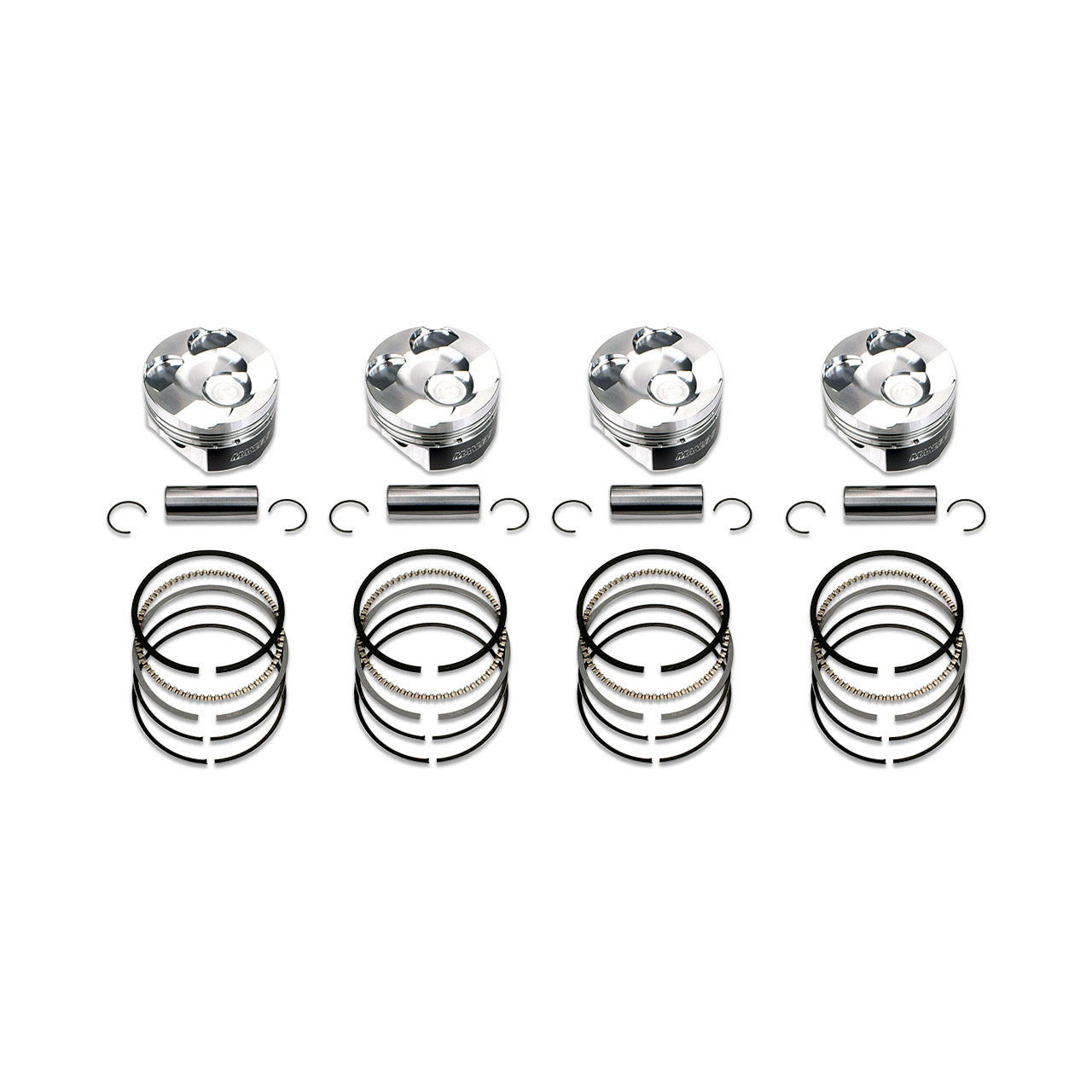

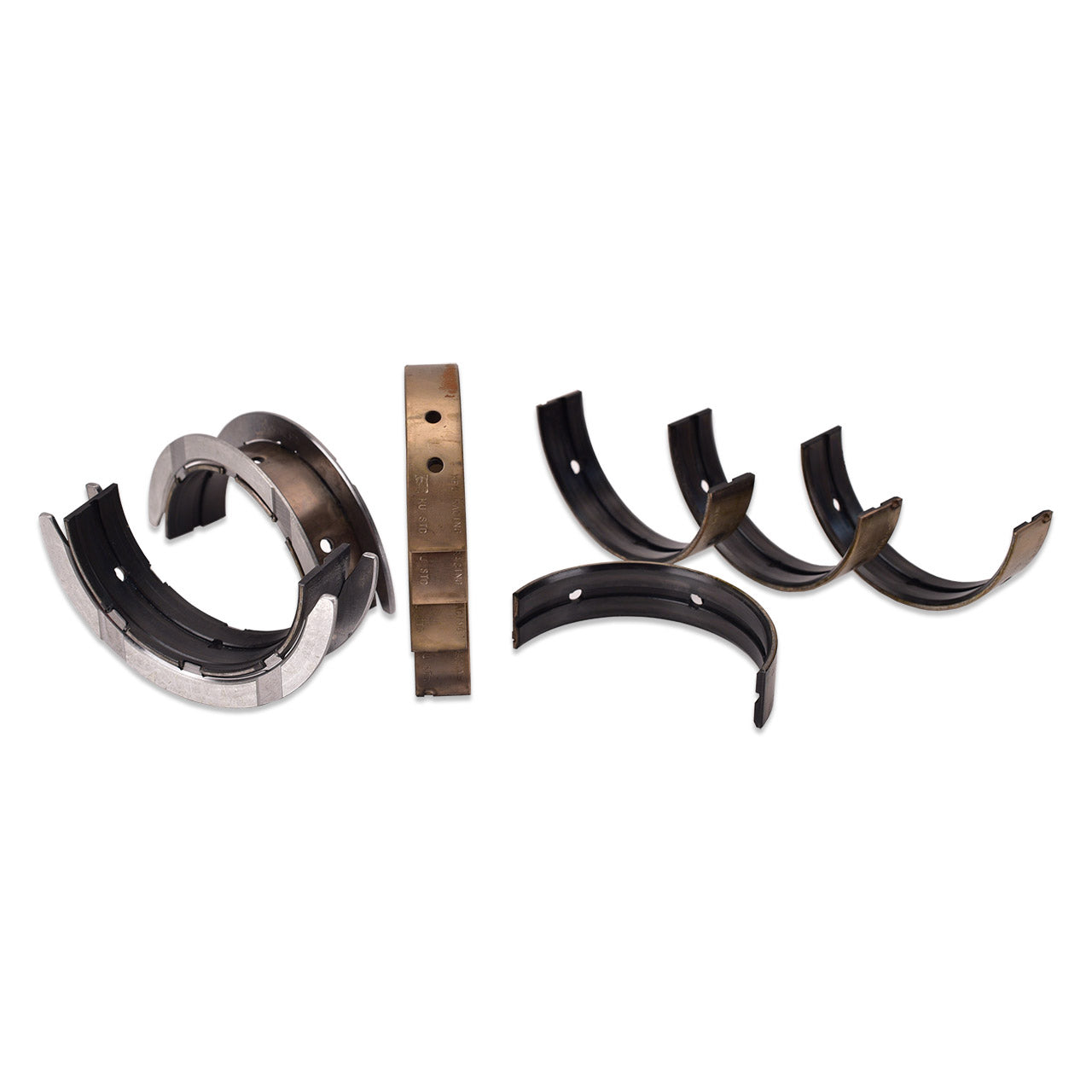

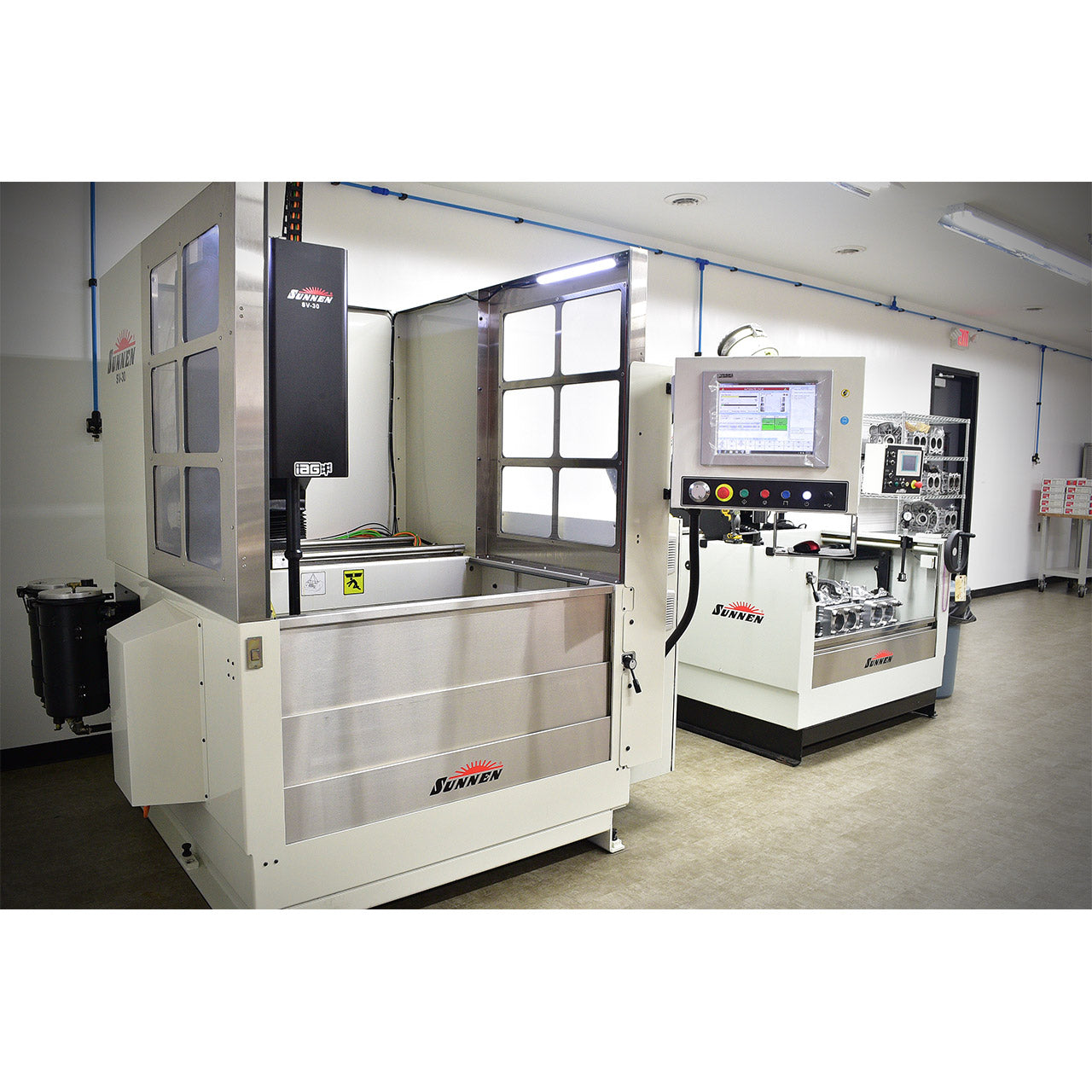

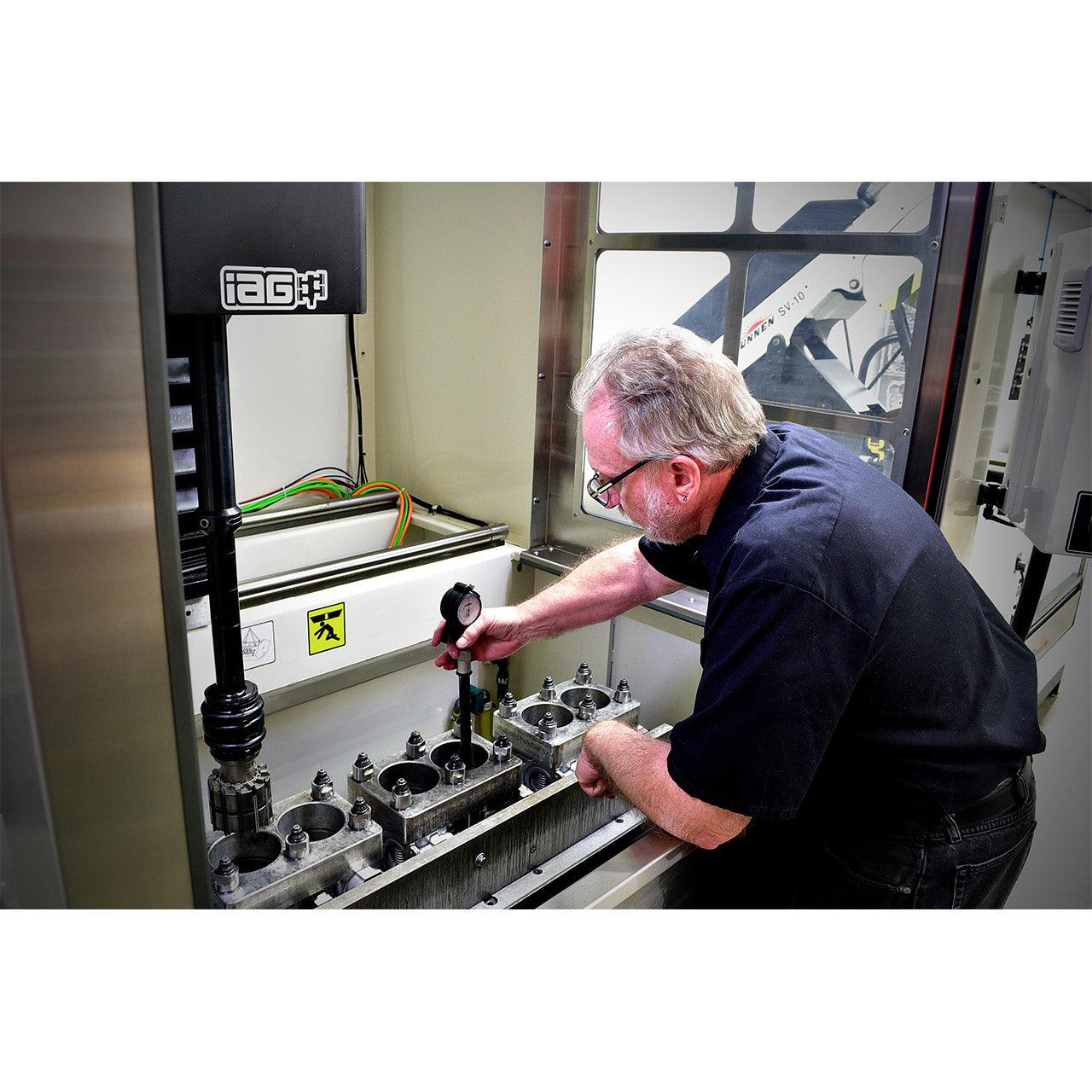

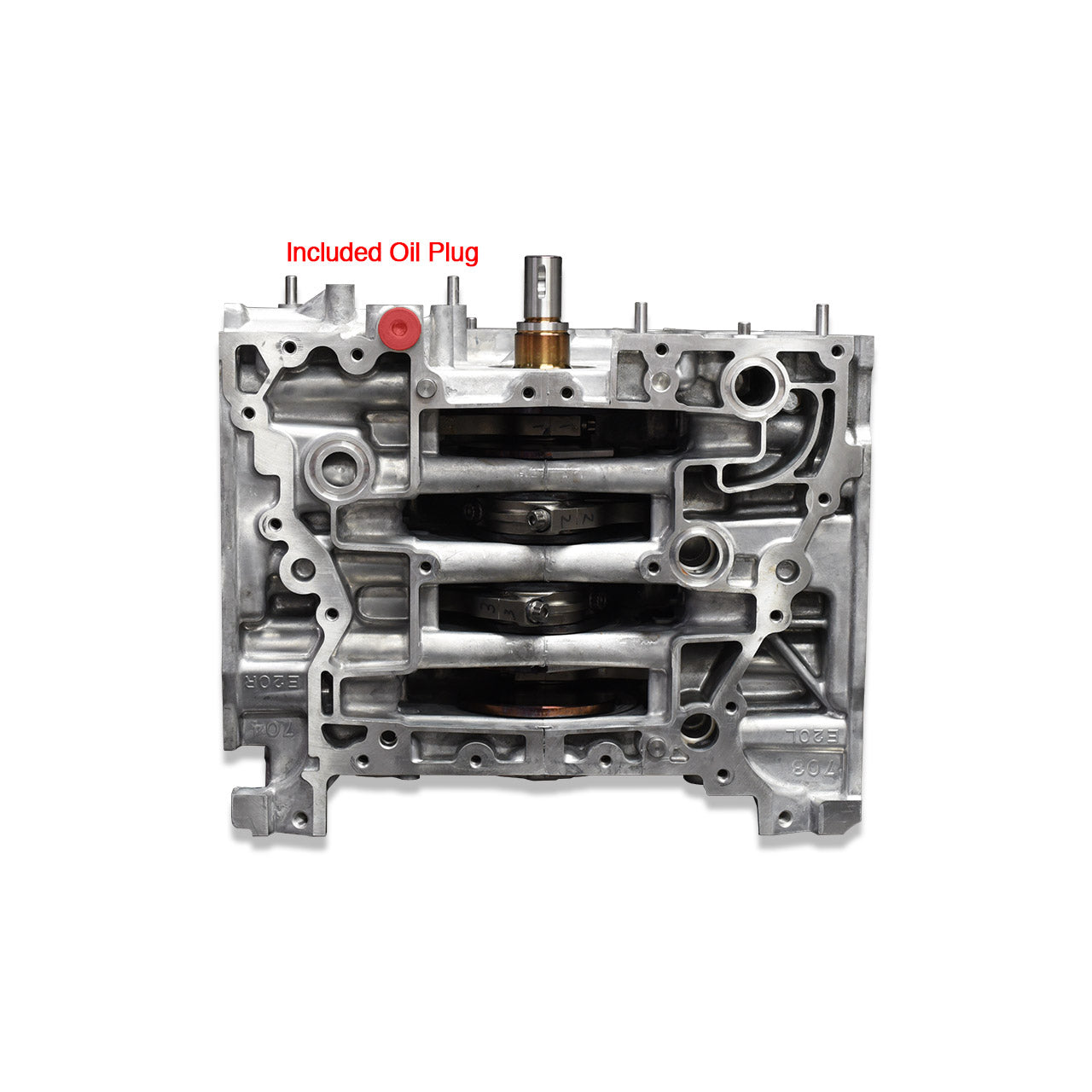

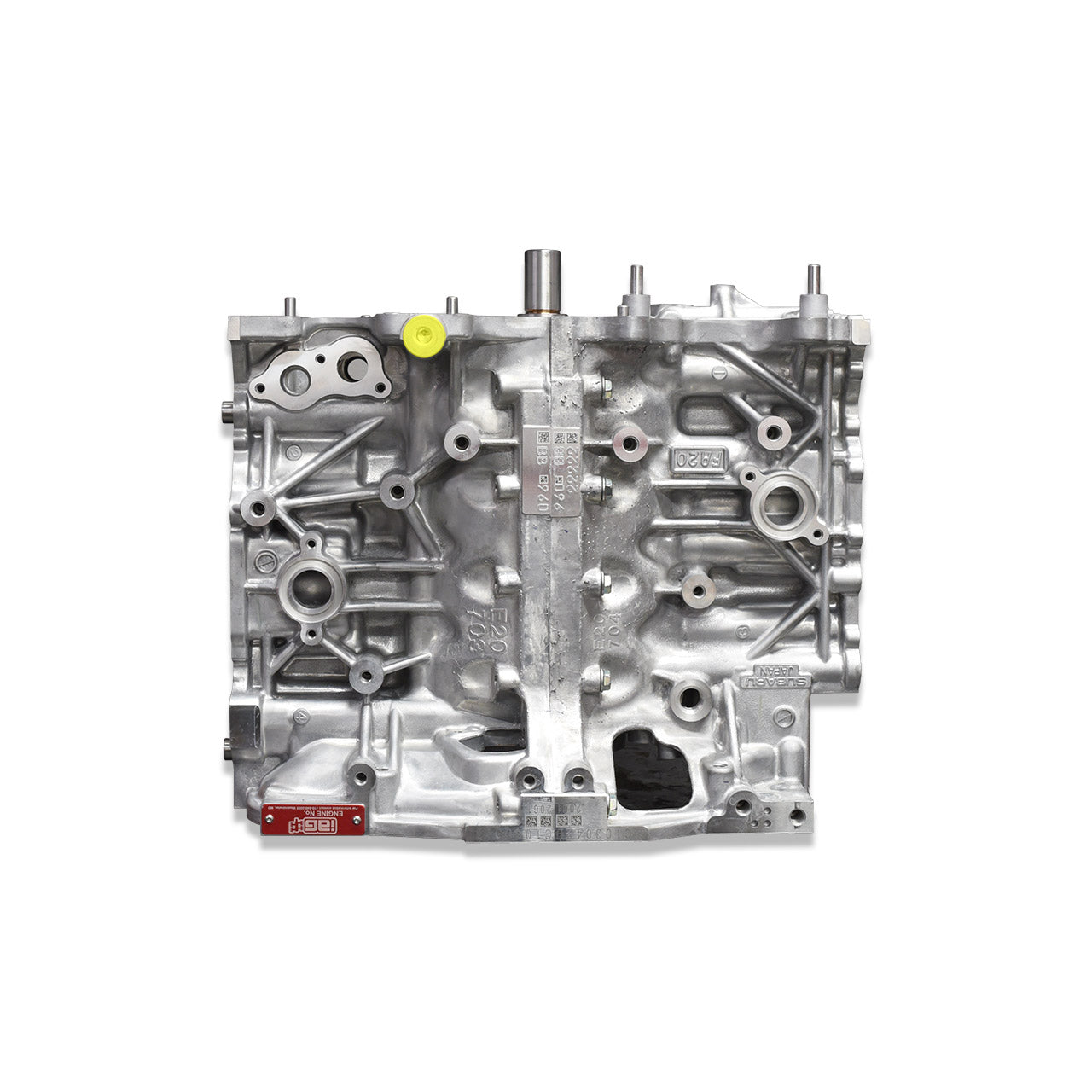

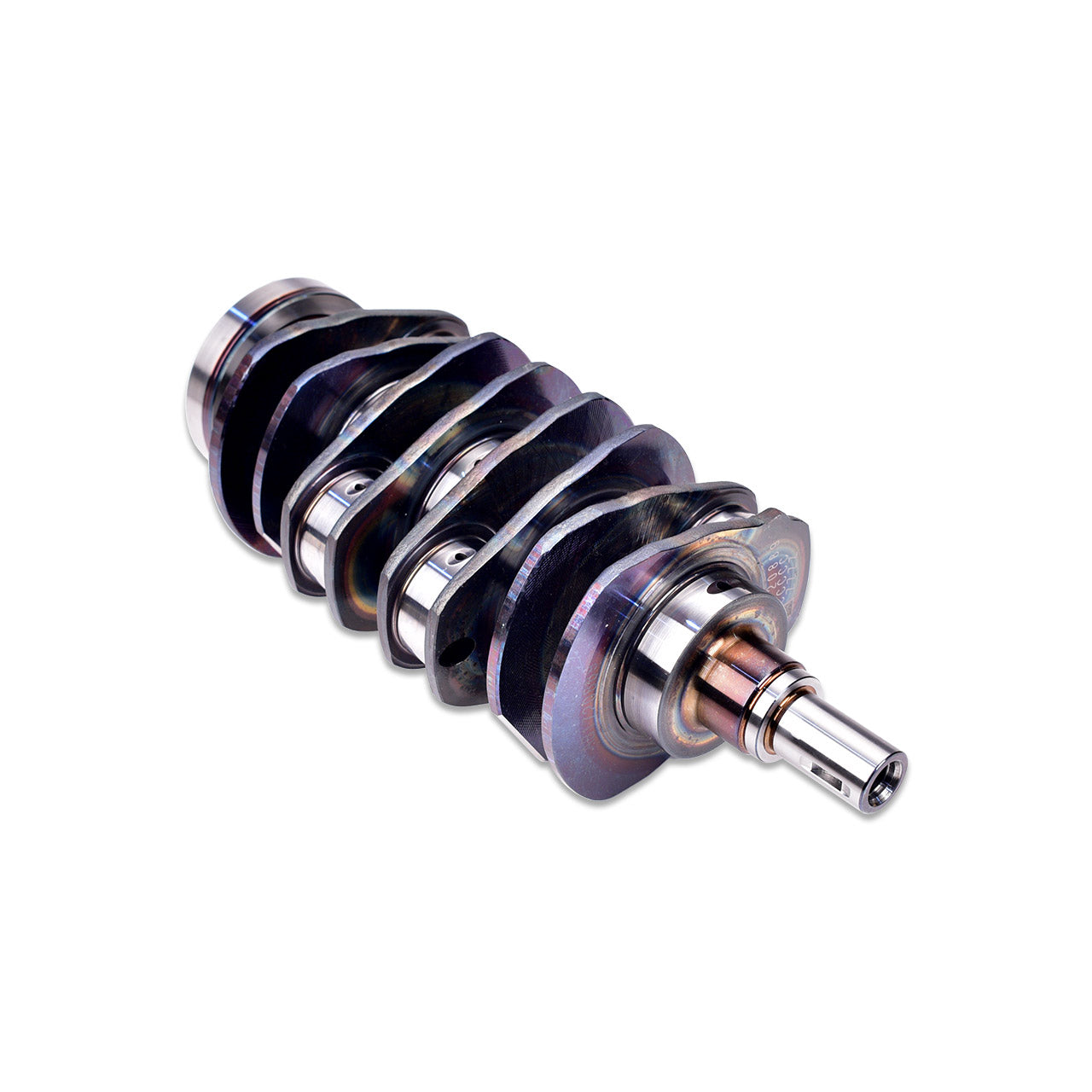

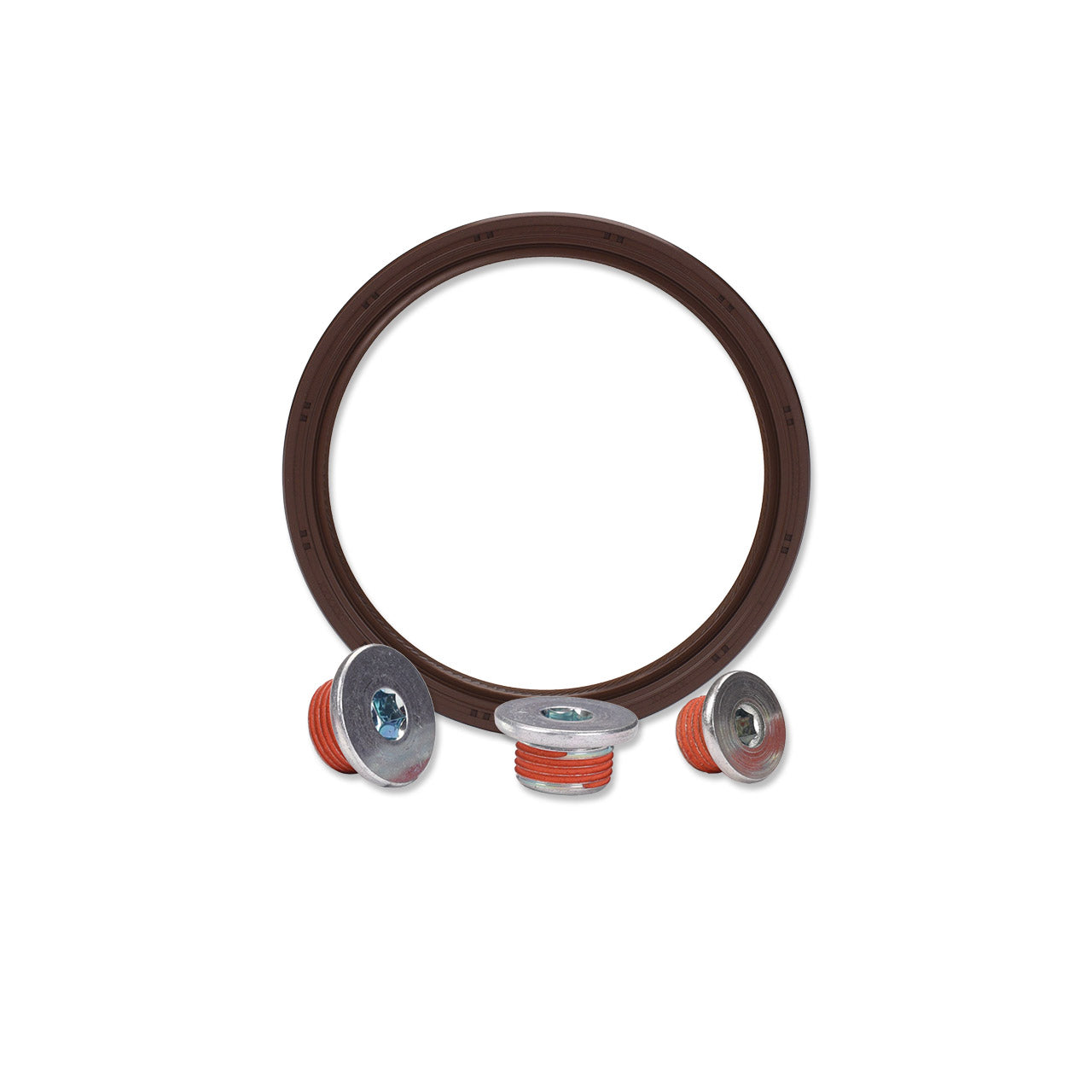

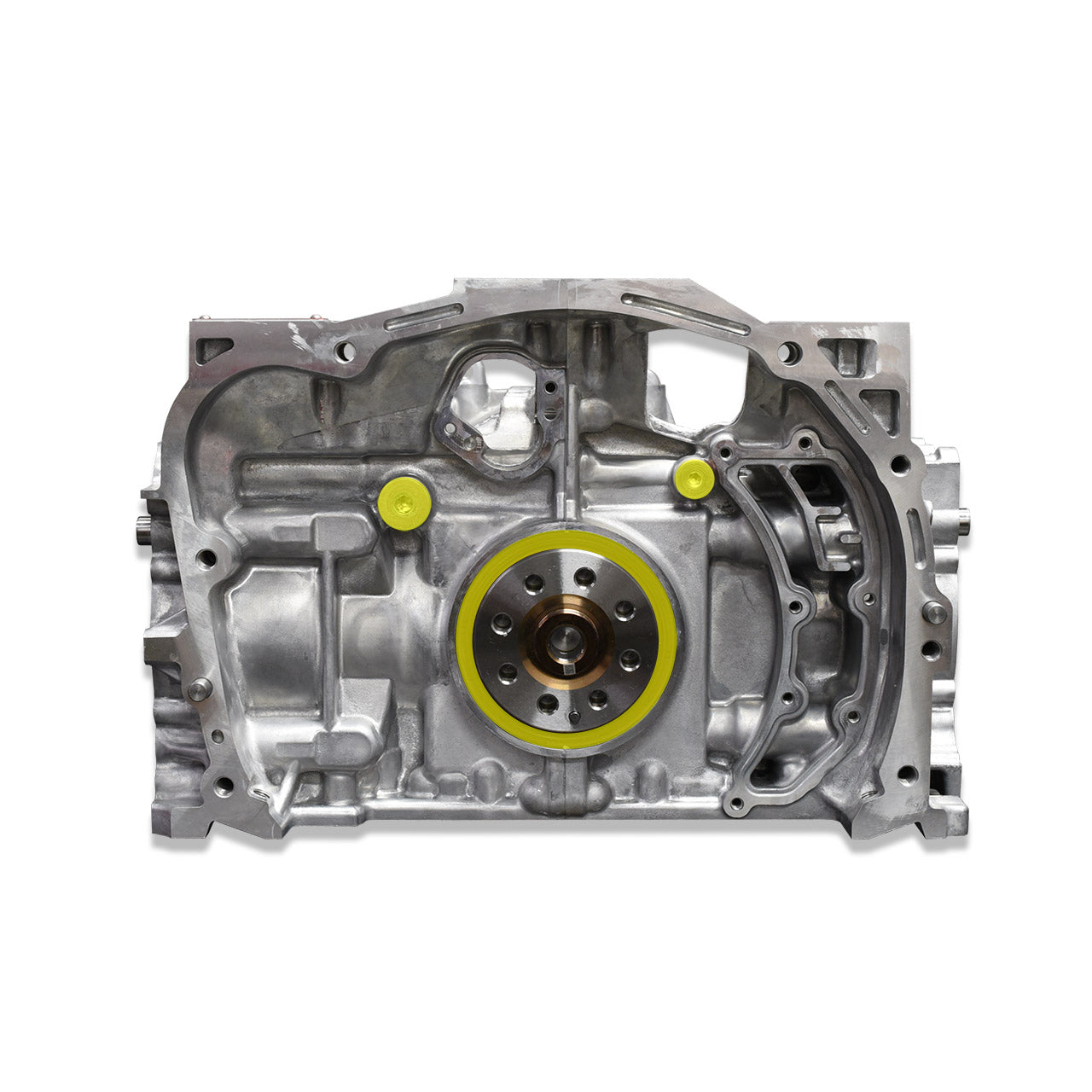

IAG Stage 2 FA20 DIT Short Block The IAG Stage 2 short block starts with new Subaru FA 2.0L engine case halves that are machined for improved oiling. Then the case is bored and honed to 86.1mm on our in-house Sunnen SV-30 the most advanced automotive cylinder hone available. IAG's in-house honing process is able to set piston to wall clearances tighter for a quieter running engine. The short block is measured and assembled using a new 2015-20 Subaru 2.0L WRX crankshaft that is matched to King main bearings. Brian Crower H-Beam rods with ARP2000 rod bolts are utilized along with King or ACL rod bearings. The case halves are sealed with new OEM case bolts and sealant. Finally, IAG-Spec 86.1mm forged pistons are spec'd and installed along with an OEM oil plug finishing off the short block. Additional Options Available: Oil Plugs & Rear Main Seal - (x1) 11021AA190 Plug, (x2) 11024AA141 Plugs , (x1) 806792010 Rear Main Seal - $36.99

This Part Fits:

Year	Make	Model	Submodel	Notes
2014	Subaru	Forester
2015	Subaru	Forester
2016	Subaru	Forester
2017	Subaru	Forester
2018	Subaru	Forester
2015	Subaru	WRX
2016	Subaru	WRX
2017	Subaru	WRX
2018	Subaru	WRX
2019	Subaru	WRX
2020	Subaru	WRX
2021	Subaru	WRX
