IAG Performance IAG-ENG-2240 IAG Stage 2 CNC Ported Oil Pump for EJ20/EJ25
IAG Performance IAG-ENG-2240 IAG Stage 2 CNC Ported Oil Pump for EJ20/EJ25
Regular price
$479.99 USD
Regular price
$479.99 USD
Sale price
$479.99 USD
Unit price
per
Shipping calculated at checkout.

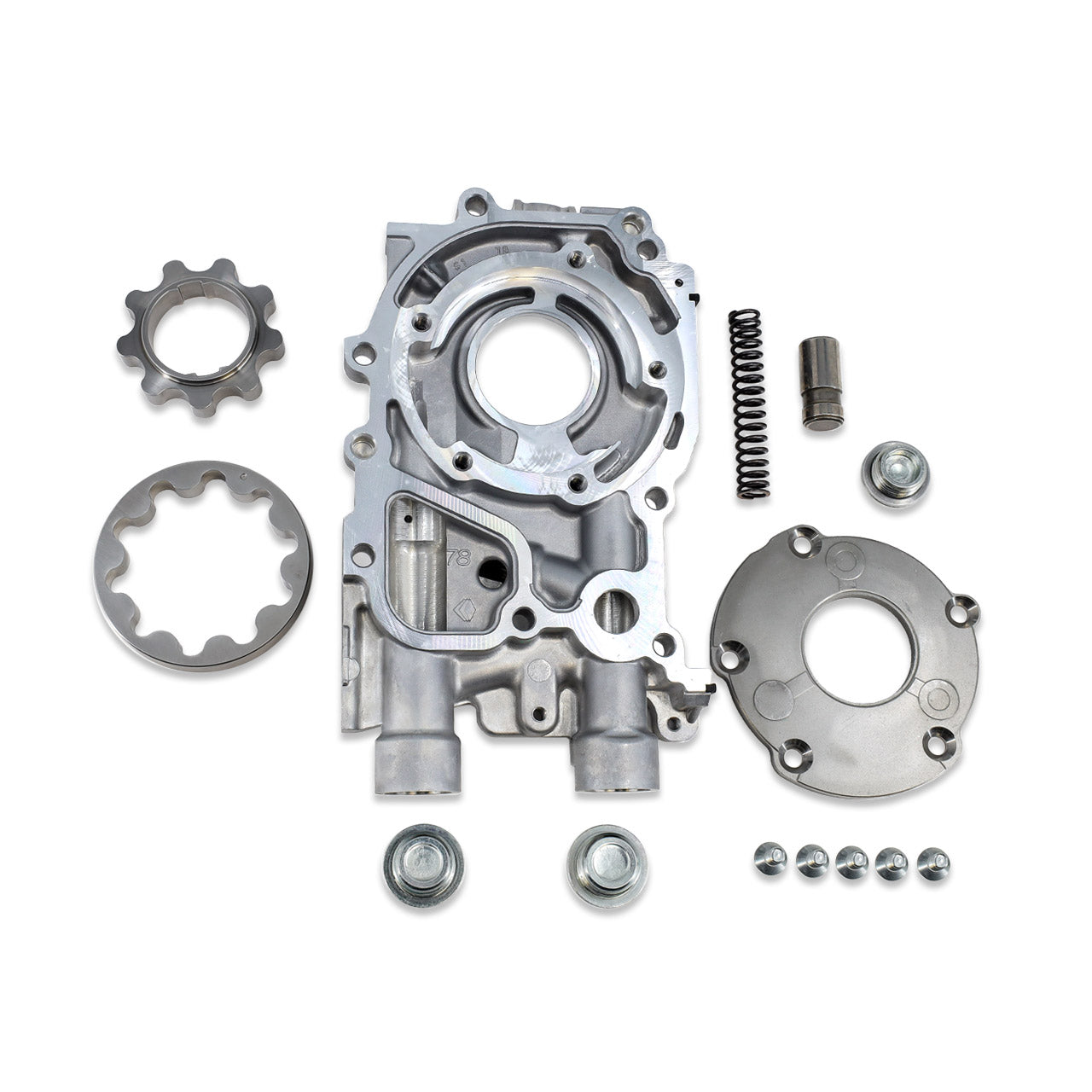

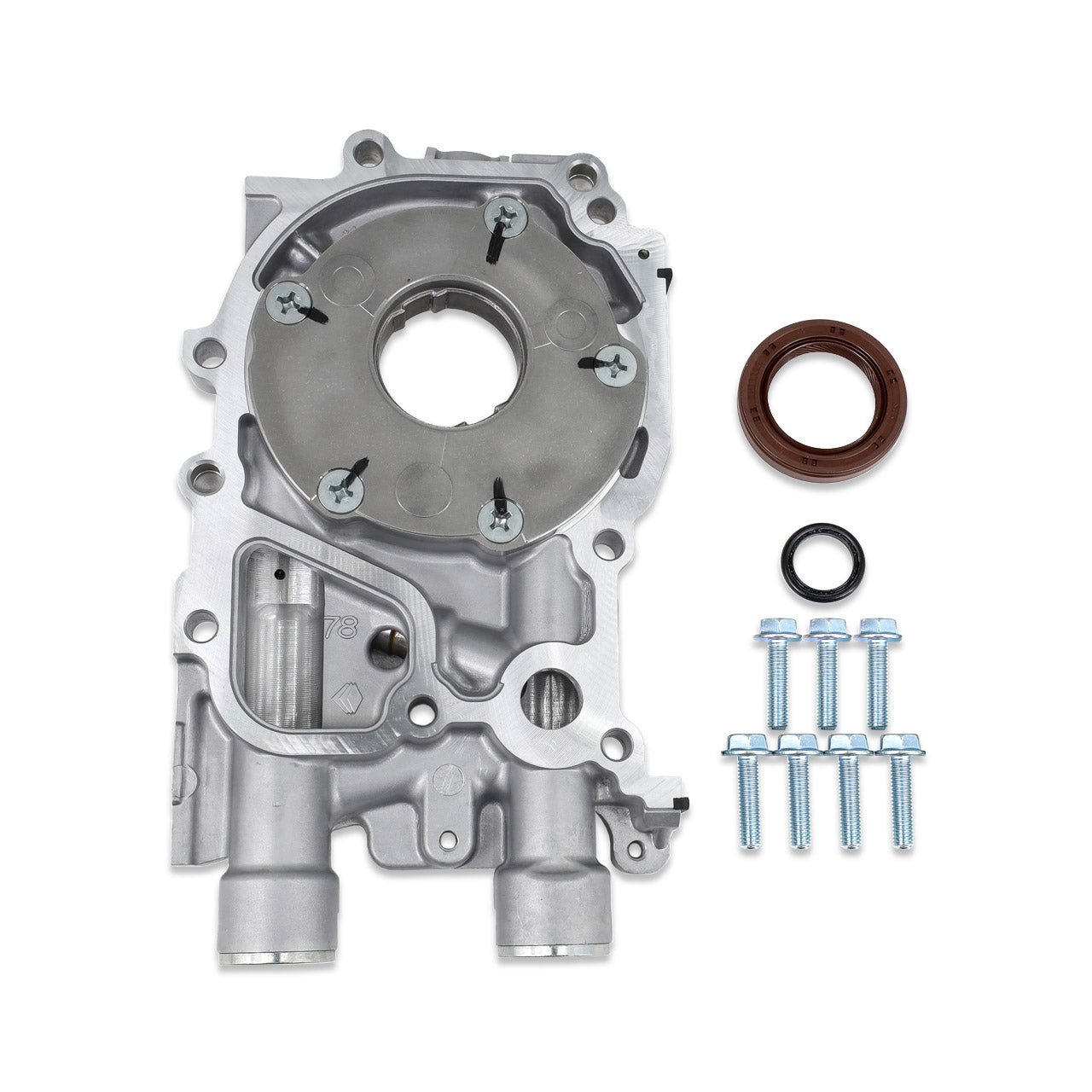

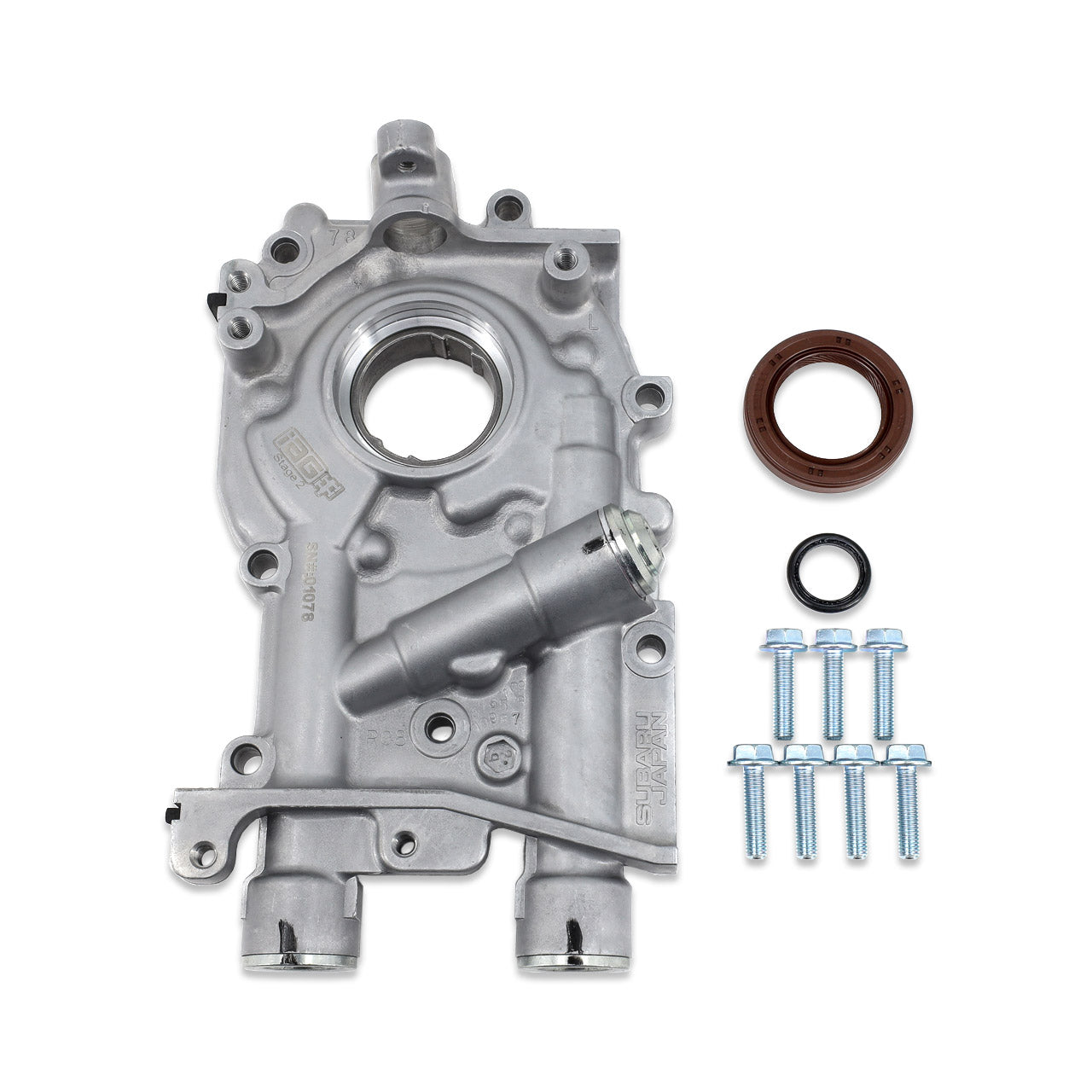

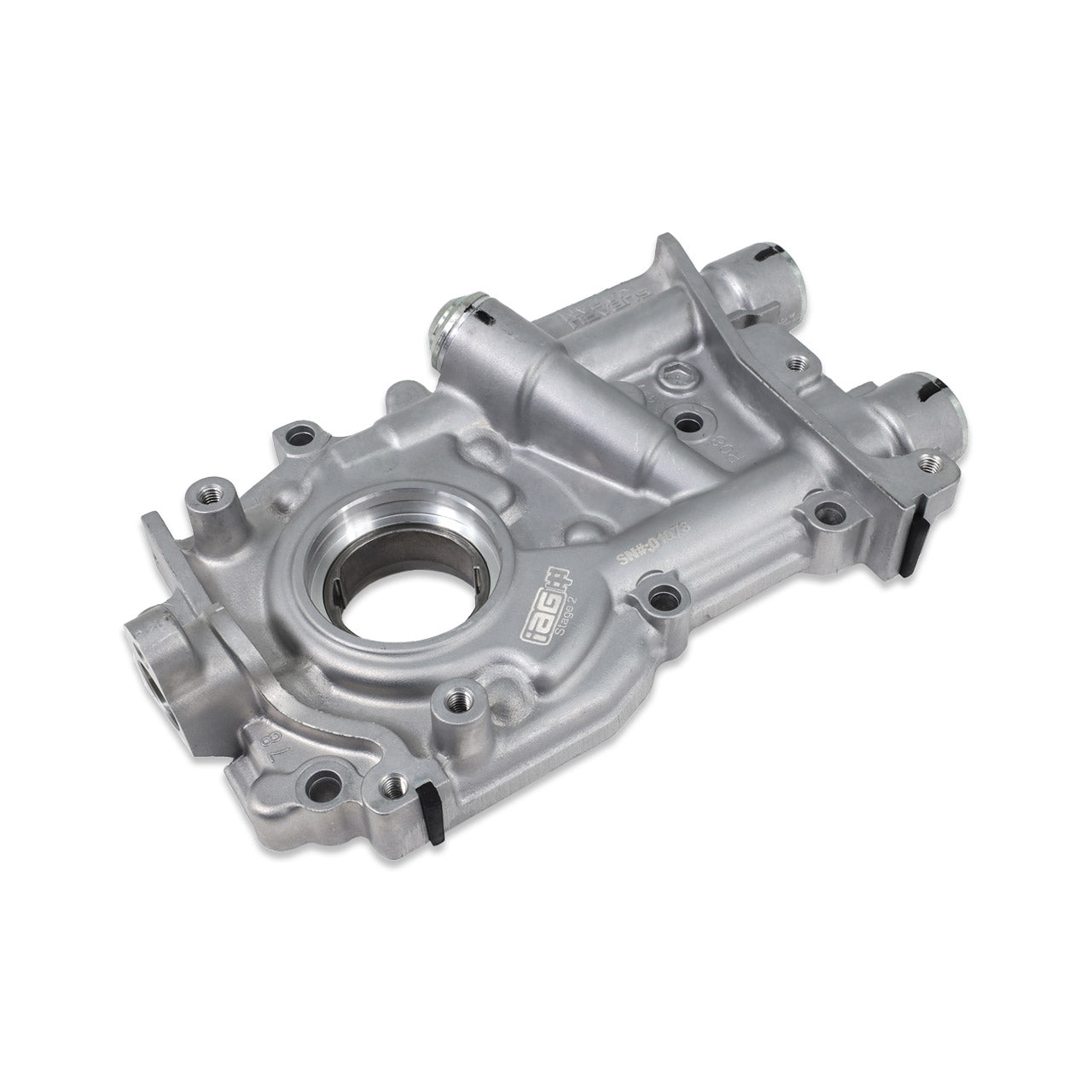

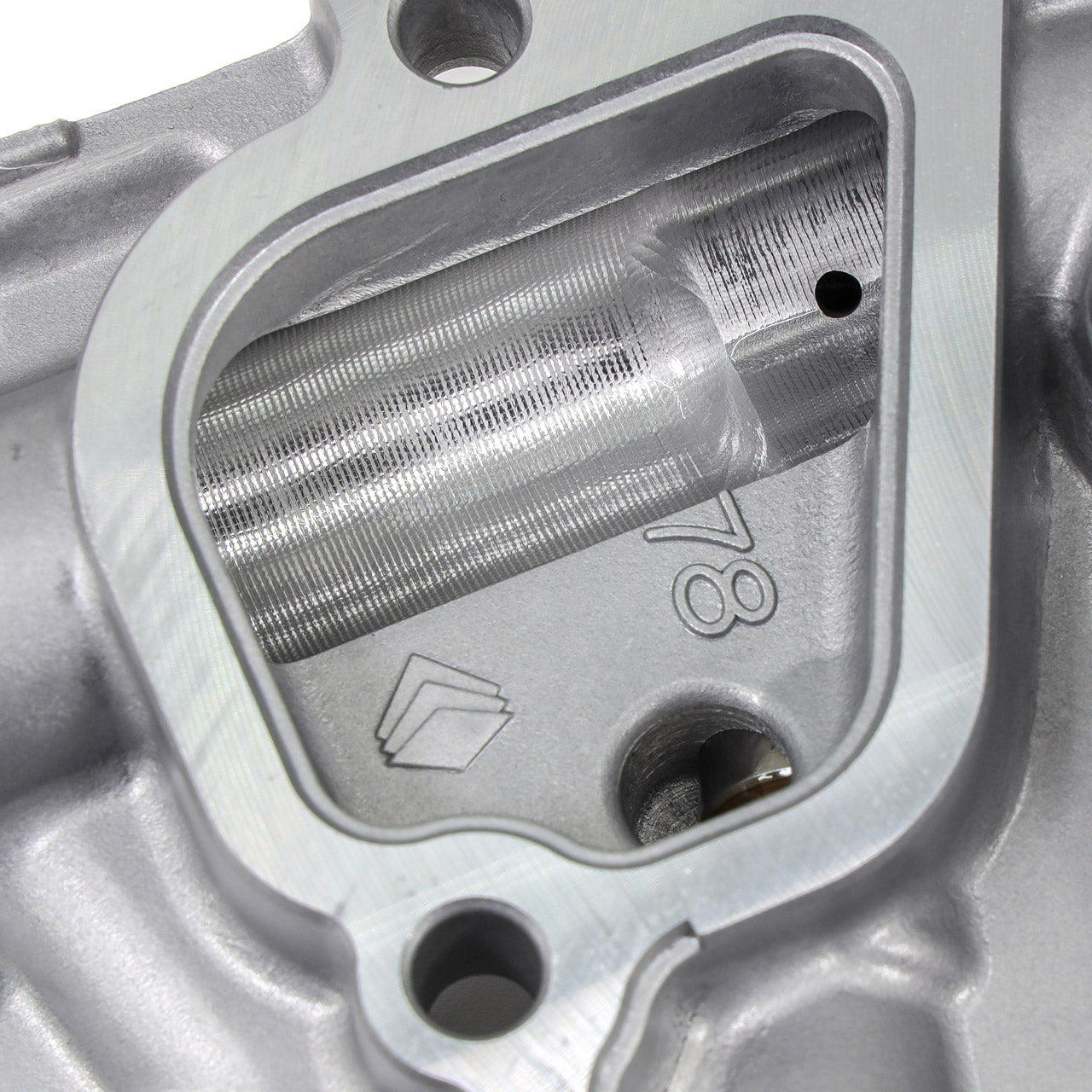

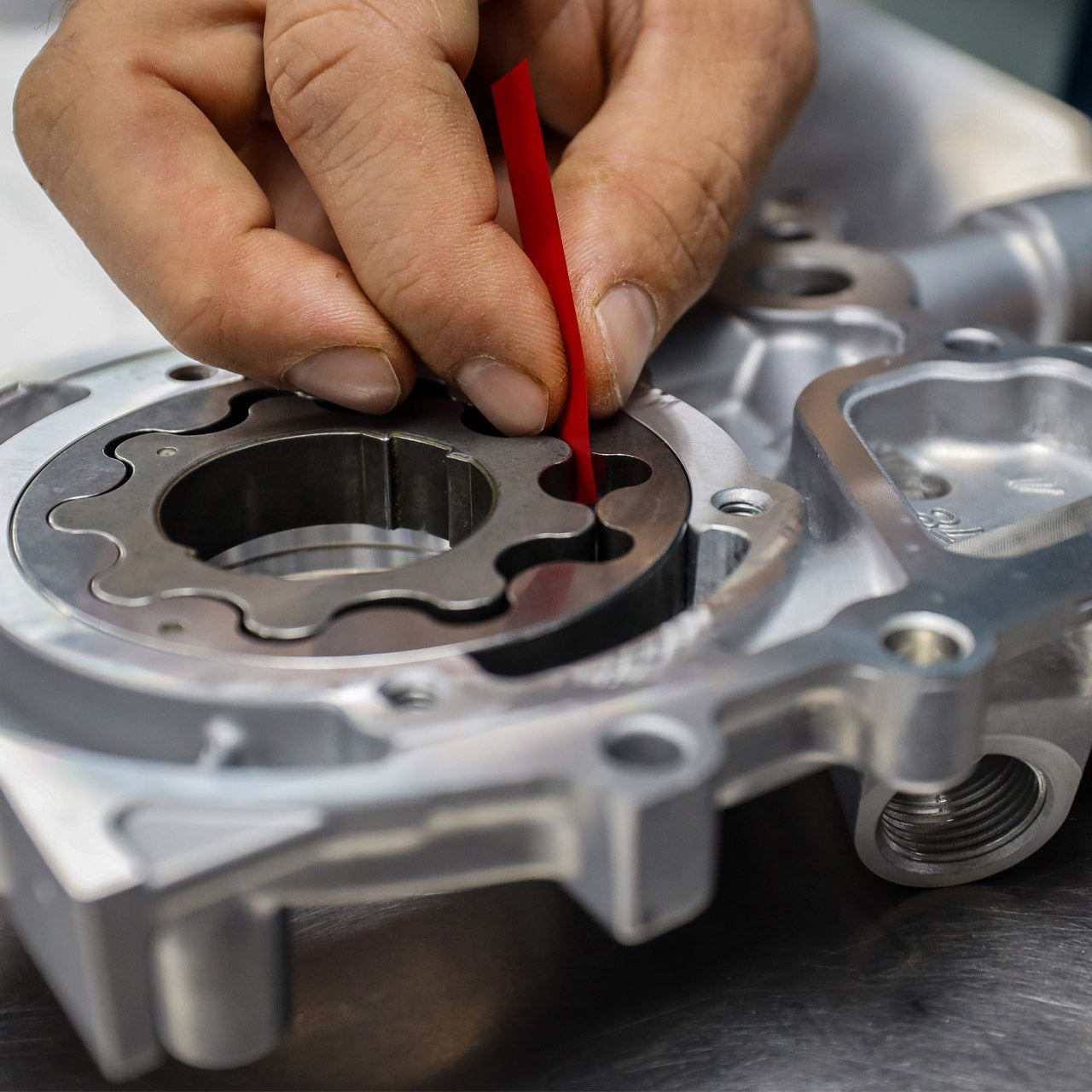

Each IAG Stage 2 oil pump starts life as an OEM spec 11mm oil pump, straight from Subaru. IAG completely disassembles the new oil pump including pulling the rotors, backing plate & pressure relief valve. Next, the main body is fixtured in our in-house 5-Axis Centroid CNC machine where the inlet and outlet passageways are CNC ported. This allows for a larger, more consistent pathway for the oil into and out of the gerotor internals and helps to prevent cavitation. The Oil Pump Outlet where it meets the engine block is also CNC “Port Matched”, for a perfect transition into the engine block. The Inlet and Outlet sides of the gerotor are also opened up on the CNC mill to reduce inlet side cavitation, and to reduce outlet side pressure drops. The pressure relief valve piston is REM Polished, which provides a non-directional, low Ra, polished finish. This reduces friction, heat and possibility of the relief valve piston galling and sticking, a common failure point on the OEM pumps. The piston is reinstalled and confirmed to operate correctly. The rotors are measured and checked to be within the manufacturer's specification - aka Blueprinted, and installed next. The pump is then put together with a light coating of assembly lube to reduce friction and scuffing and aid in priming on first start up. Finally, the backing plate is installed. Loctite is added to the hardware, and each piece receives a painted mark after it is correctly torqued. The pump ships ready to install, with all hardware and seals required for installation.
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Saab | 9-2X | Aero | |
| 2006 | Saab | 9-2X | Aero | |
| 2004 | Subaru | Baja | Turbo | |
| 2005 | Subaru | Baja | Turbo | |
| 2006 | Subaru | Baja | Turbo | |
| 2008 | Subaru | Forester | 2.5 XT | |
| 2008 | Subaru | Forester | Sports 2.5 XT | |
| 2010 | Subaru | Forester | XT Sports | |
| 2011 | Subaru | Forester | XT Sports | |
| 2012 | Subaru | Forester | XT Sports | |
| 2011 | Subaru | Forester | XT Touring | |
| 2012 | Subaru | Forester | XT Touring | |
| 2013 | Subaru | Forester | XT Touring | |
| 2009 | Subaru | Impreza | 2.5 GT | |
| 2010 | Subaru | Impreza | 2.5 GT | |
| 2002 | Subaru | Impreza | WRX | |
| 2003 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX | |
| 2005 | Subaru | Impreza | WRX | |
| 2006 | Subaru | Impreza | WRX | |
| 2007 | Subaru | Impreza | WRX | |
| 2008 | Subaru | Impreza | WRX | |
| 2009 | Subaru | Impreza | WRX | |
| 2010 | Subaru | Impreza | WRX | |
| 2011 | Subaru | Impreza | WRX | |
| 2012 | Subaru | Impreza | WRX | |
| 2013 | Subaru | Impreza | WRX | |
| 2014 | Subaru | Impreza | WRX | |
| 2010 | Subaru | Impreza | WRX GT | |
| 2009 | Subaru | Impreza | WRX Premium | |
| 2010 | Subaru | Impreza | WRX Premium | |
| 2011 | Subaru | Impreza | WRX Premium | |
| 2012 | Subaru | Impreza | WRX Premium | |
| 2013 | Subaru | Impreza | WRX Premium | |
| 2014 | Subaru | Impreza | WRX Premium | |
| 2010 | Subaru | Impreza | WRX SE | |
| 2004 | Subaru | Impreza | WRX STI | |
| 2005 | Subaru | Impreza | WRX STI | |
| 2006 | Subaru | Impreza | WRX STI | |
| 2007 | Subaru | Impreza | WRX STI | |
| 2008 | Subaru | Impreza | WRX STI | |
| 2009 | Subaru | Impreza | WRX STI | |
| 2010 | Subaru | Impreza | WRX STI | |
| 2011 | Subaru | Impreza | WRX STI | |
| 2012 | Subaru | Impreza | WRX STI | |
| 2013 | Subaru | Impreza | WRX STI | |
| 2014 | Subaru | Impreza | WRX STI | |
| 2010 | Subaru | Impreza | WRX STI Special Edition | |
| 2006 | Subaru | Impreza | WRX TR | |
| 2007 | Subaru | Impreza | WRX TR | |
| 2005 | Subaru | Legacy | GT | |
| 2006 | Subaru | Legacy | GT | |
| 2007 | Subaru | Legacy | GT | |
| 2008 | Subaru | Legacy | GT | |
| 2006 | Subaru | Legacy | GT spec.B | |
| 2007 | Subaru | Legacy | GT spec.B | |
| 2008 | Subaru | Legacy | GT spec.B | |
| 2009 | Subaru | Legacy | GT spec.B | |
| 2008 | Subaru | Outback | 2.5 XT | |
| 2005 | Subaru | Outback | XT | |
| 2006 | Subaru | Outback | XT | |
| 2007 | Subaru | Outback | XT | |
| 2008 | Subaru | Outback | XT | |
| 2005 | Subaru | Outback | XT Limited | |
| 2006 | Subaru | Outback | XT Limited | |
| 2007 | Subaru | Outback | XT Limited | |
| 2008 | Subaru | Outback | XT Limited | |
| 2009 | Subaru | Outback | XT Limited | |
| 2013 | Subaru | WRX | Base | |
| 2014 | Subaru | WRX | Base | |
| 2013 | Subaru | WRX | Limited | |
| 2014 | Subaru | WRX | Limited | |
| 2012 | Subaru | WRX | STI | |
| 2013 | Subaru | WRX | STI | |
| 2014 | Subaru | WRX | STI | |
| 2015 | Subaru | WRX | STI | |
| 2016 | Subaru | WRX | STI | |
| 2013 | Subaru | WRX STI | Base | |
| 2014 | Subaru | WRX STI | Base | |
| 2015 | Subaru | WRX STI | Base | |
| 2016 | Subaru | WRX STI | Base | |
| 2017 | Subaru | WRX STI | Base | |
| 2018 | Subaru | WRX STI | Base | |
| 2019 | Subaru | WRX STI | Base | |
| 2020 | Subaru | WRX STI | Base | |
| 2021 | Subaru | WRX STI | Base | |
| 2020 | Subaru | WRX STI | Kanrai Edition | |
| 2015 | Subaru | WRX STI | Launch Edition | |
| 2015 | Subaru | WRX STI | Limited | |
| 2016 | Subaru | WRX STI | Limited | |
| 2017 | Subaru | WRX STI | Limited | |
| 2018 | Subaru | WRX STI | Limited | |
| 2019 | Subaru | WRX STI | Limited | |
| 2020 | Subaru | WRX STI | Limited | |
| 2021 | Subaru | WRX STI | Limited | |
| 2019 | Subaru | WRX STI | S209 | |
| 2016 | Subaru | WRX STI | Series.HyperBlue | |
| 2017 | Subaru | WRX STI | Sport | |
| 2018 | Subaru | WRX STI | Sport | |
| 2019 | Subaru | WRX STI | Sport | |
| 2020 | Subaru | WRX STI | Sport | |
| 2018 | Subaru | WRX STI | STI | |
| 2019 | Subaru | WRX STI | STI | |
| 2020 | Subaru | WRX STI | STI | |
| 2014 | Subaru | WRX STI | Tsurugi Edition | |
| 2018 | Subaru | WRX STI | Type RA |
