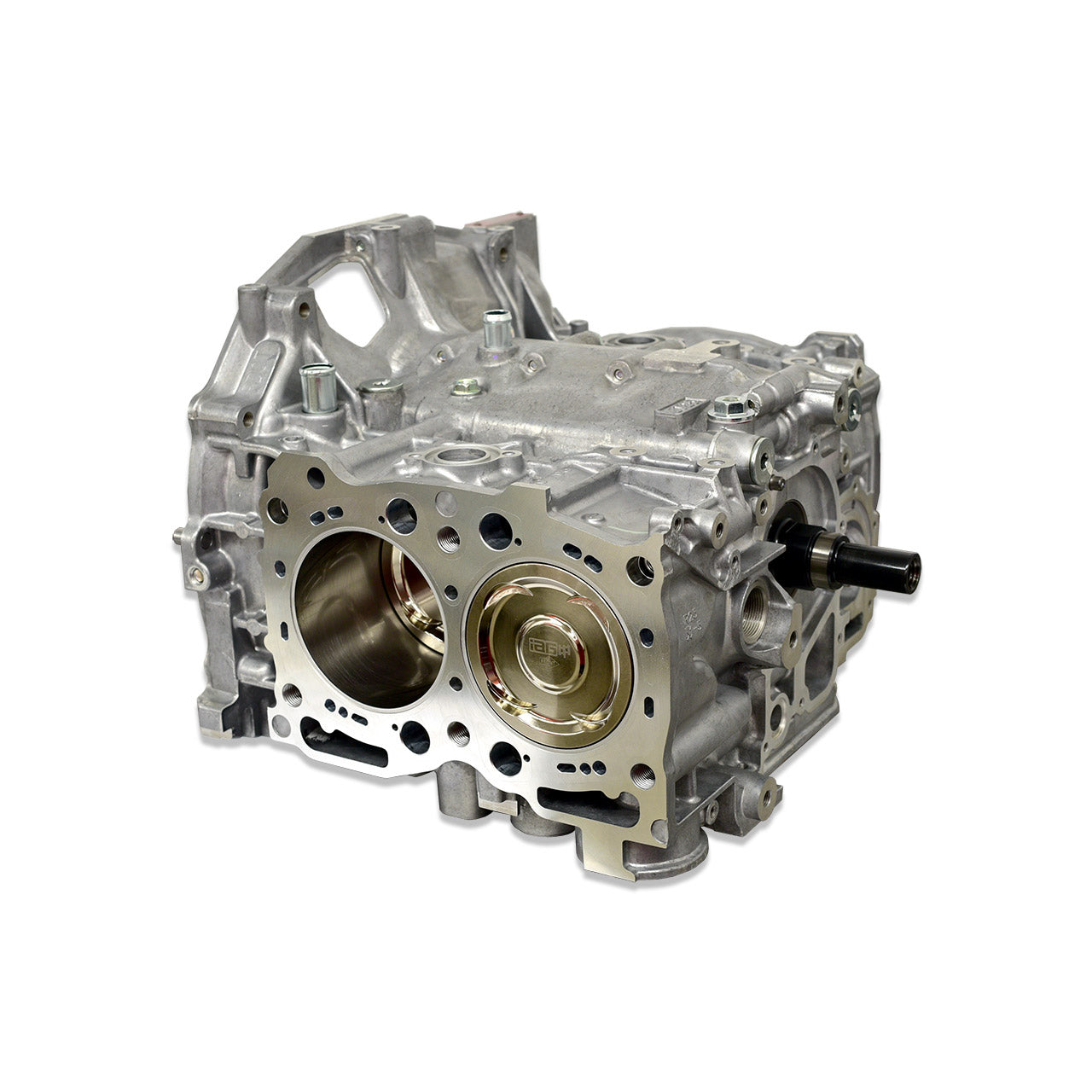

IAG Performance IAG-ENG-S950 IAG 950 EJ25 Subaru Closed Deck Short Block For WRX, STI, LGT, FXT - 950 BHP

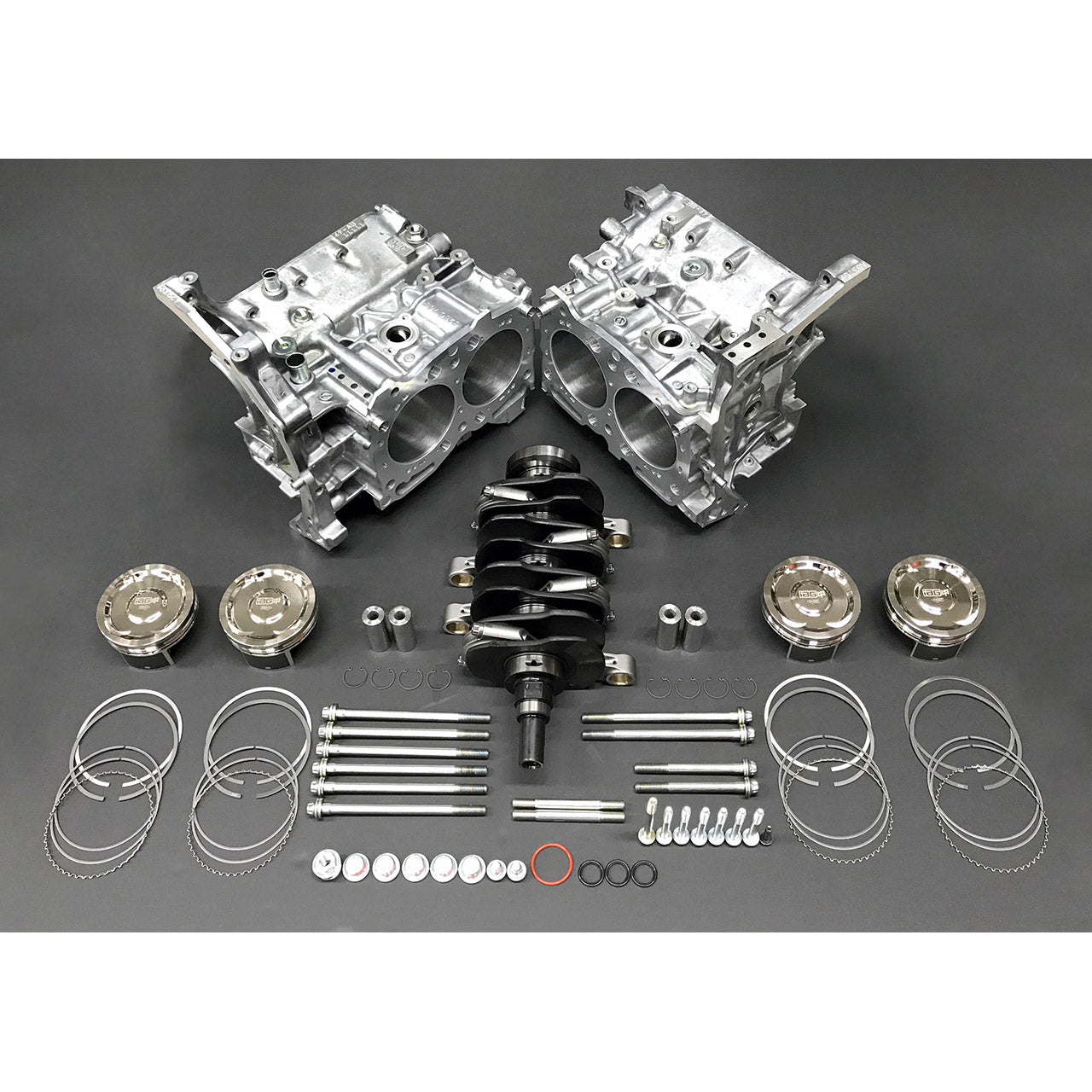

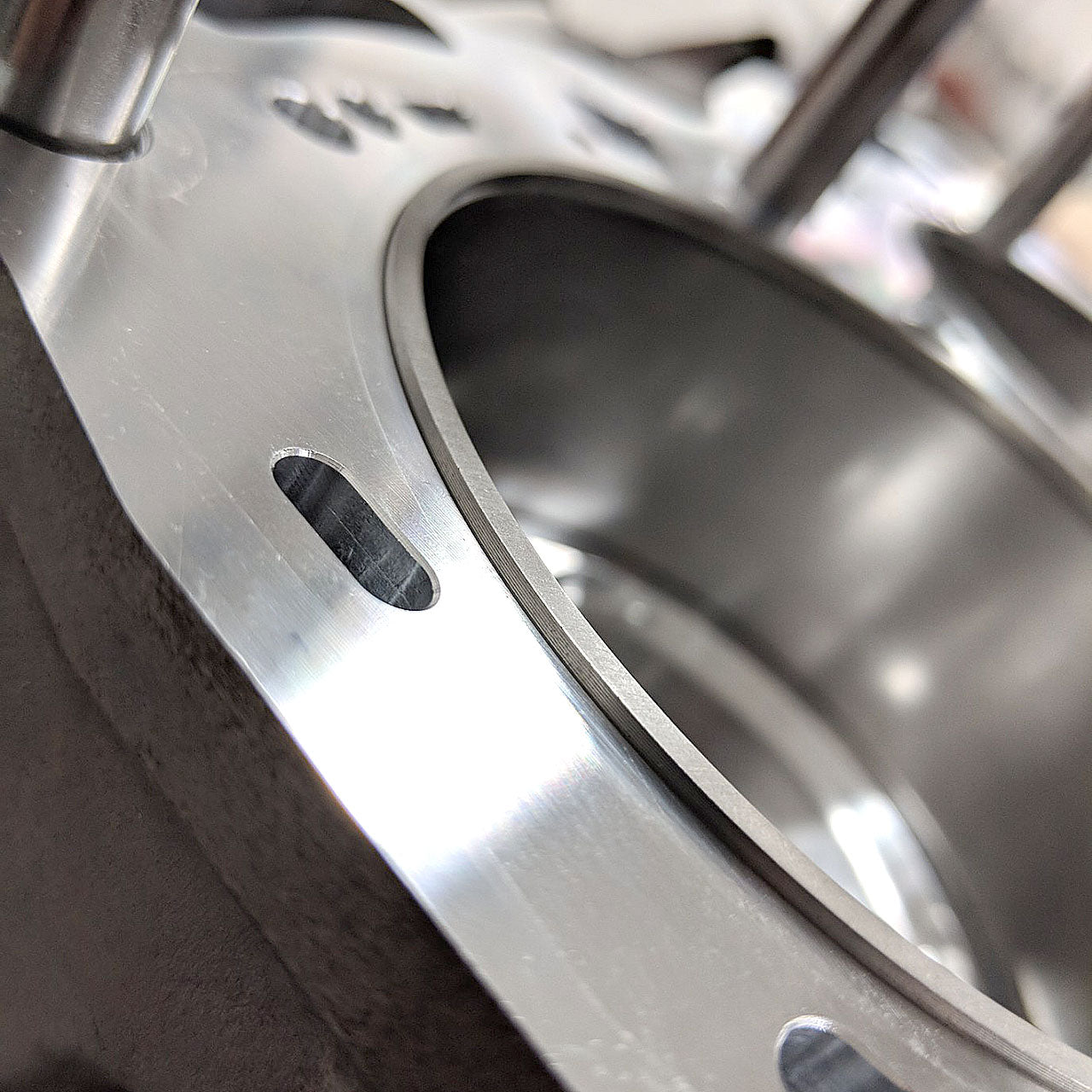

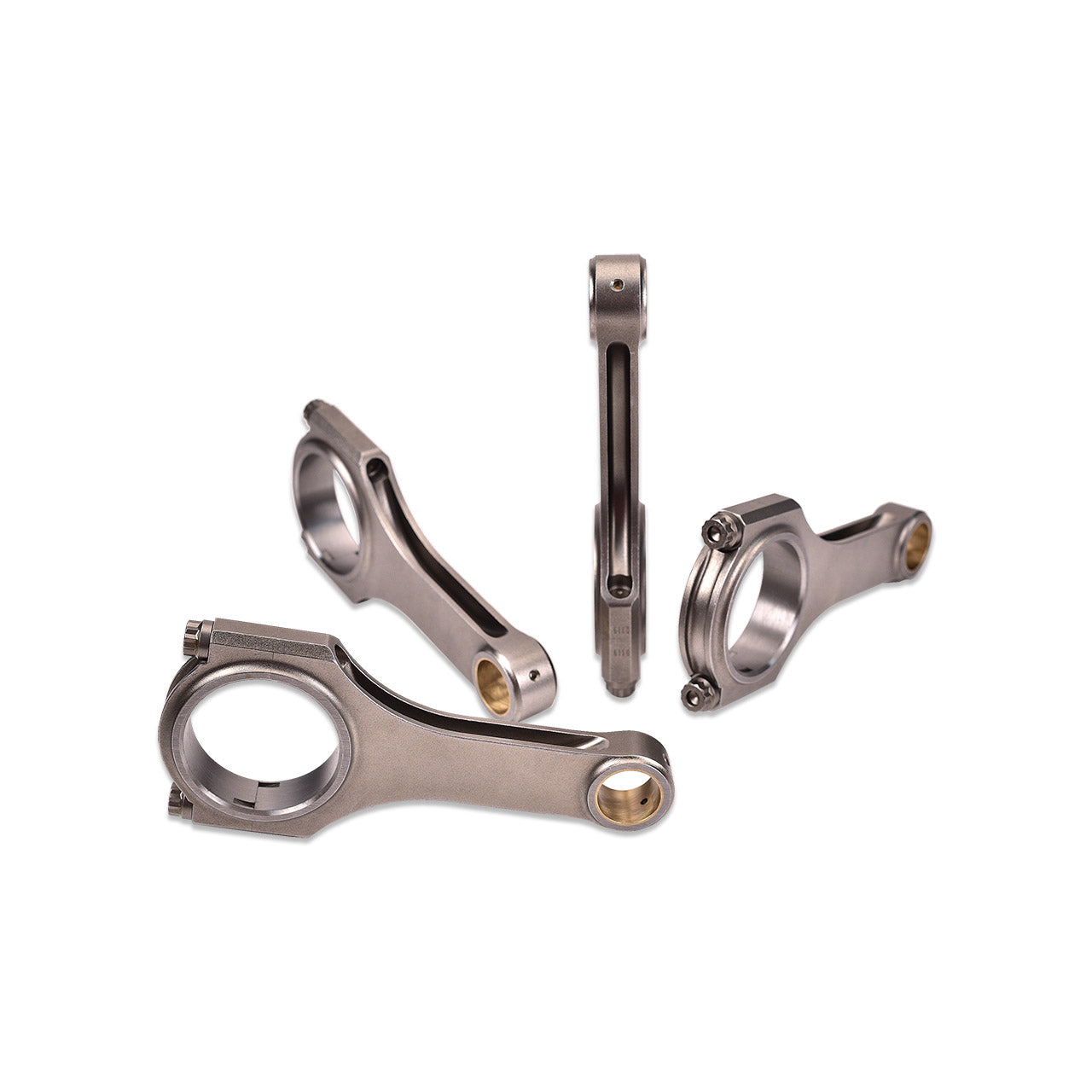

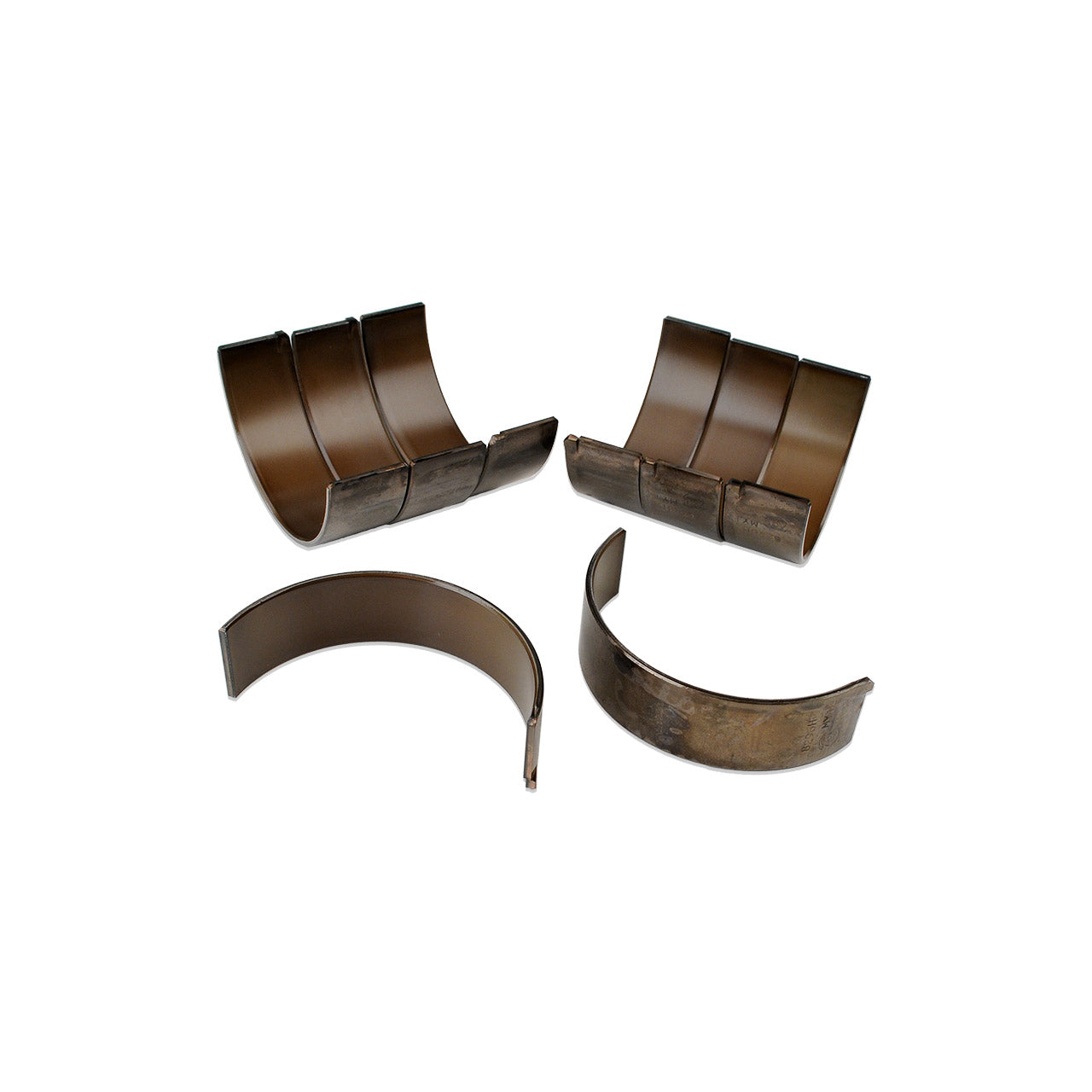

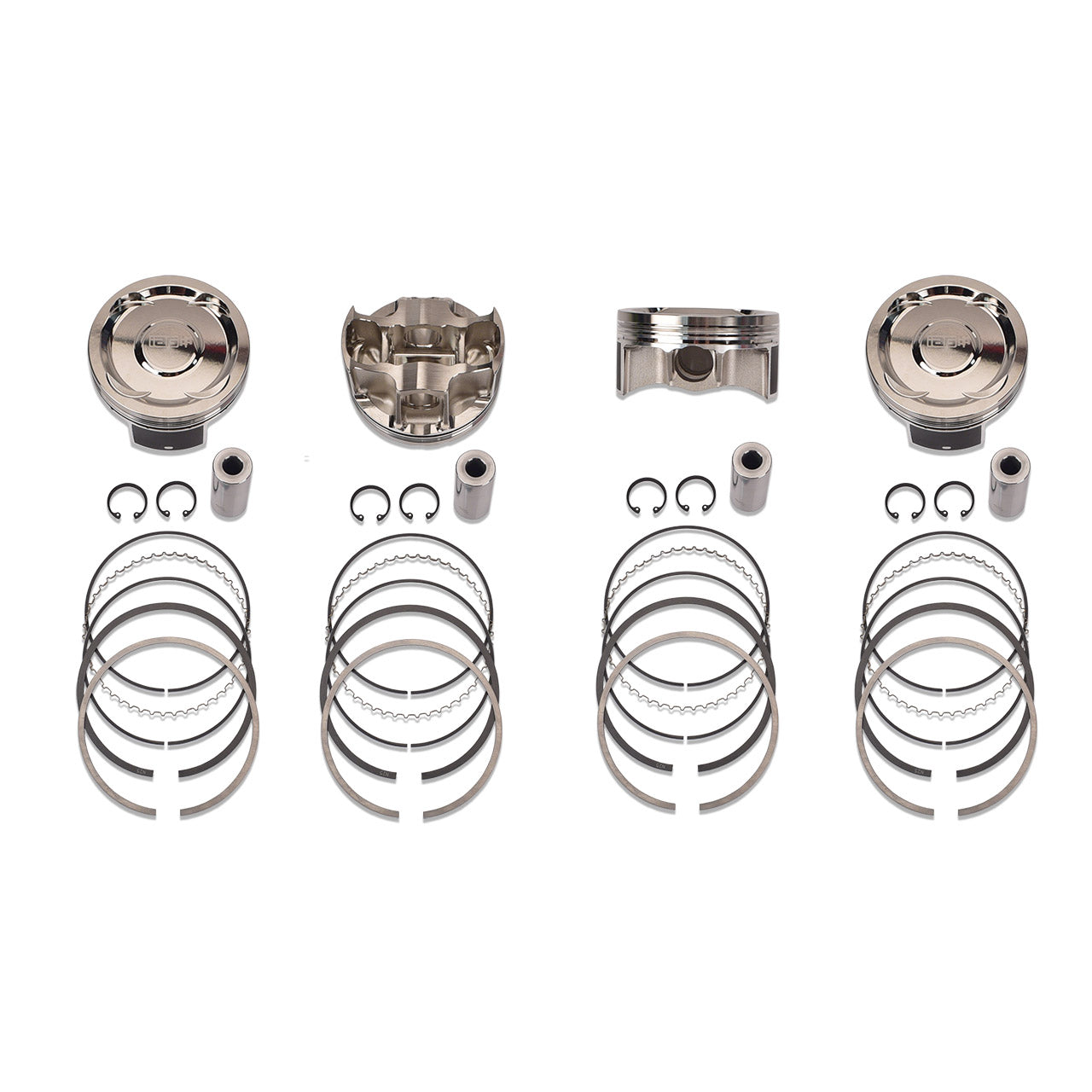

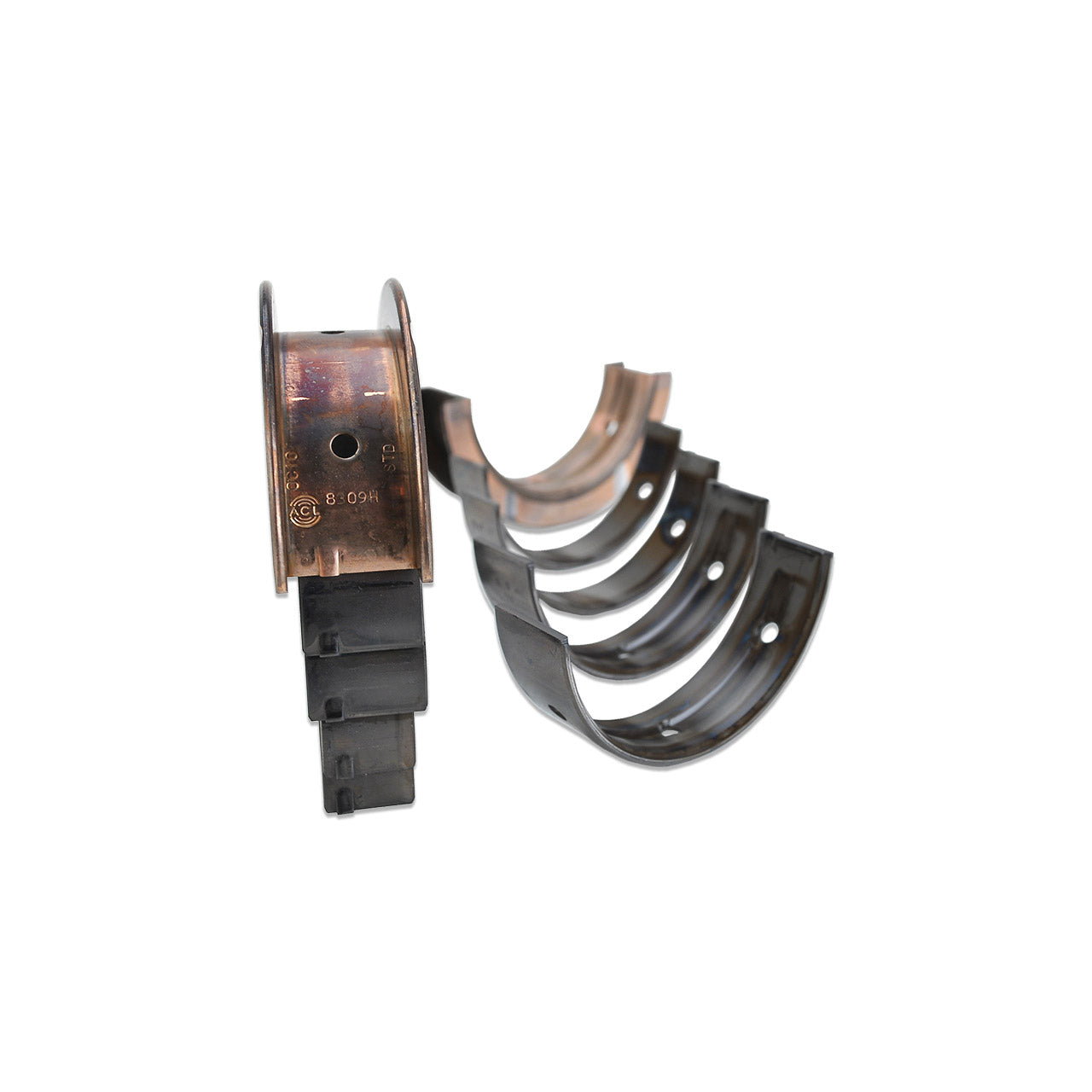

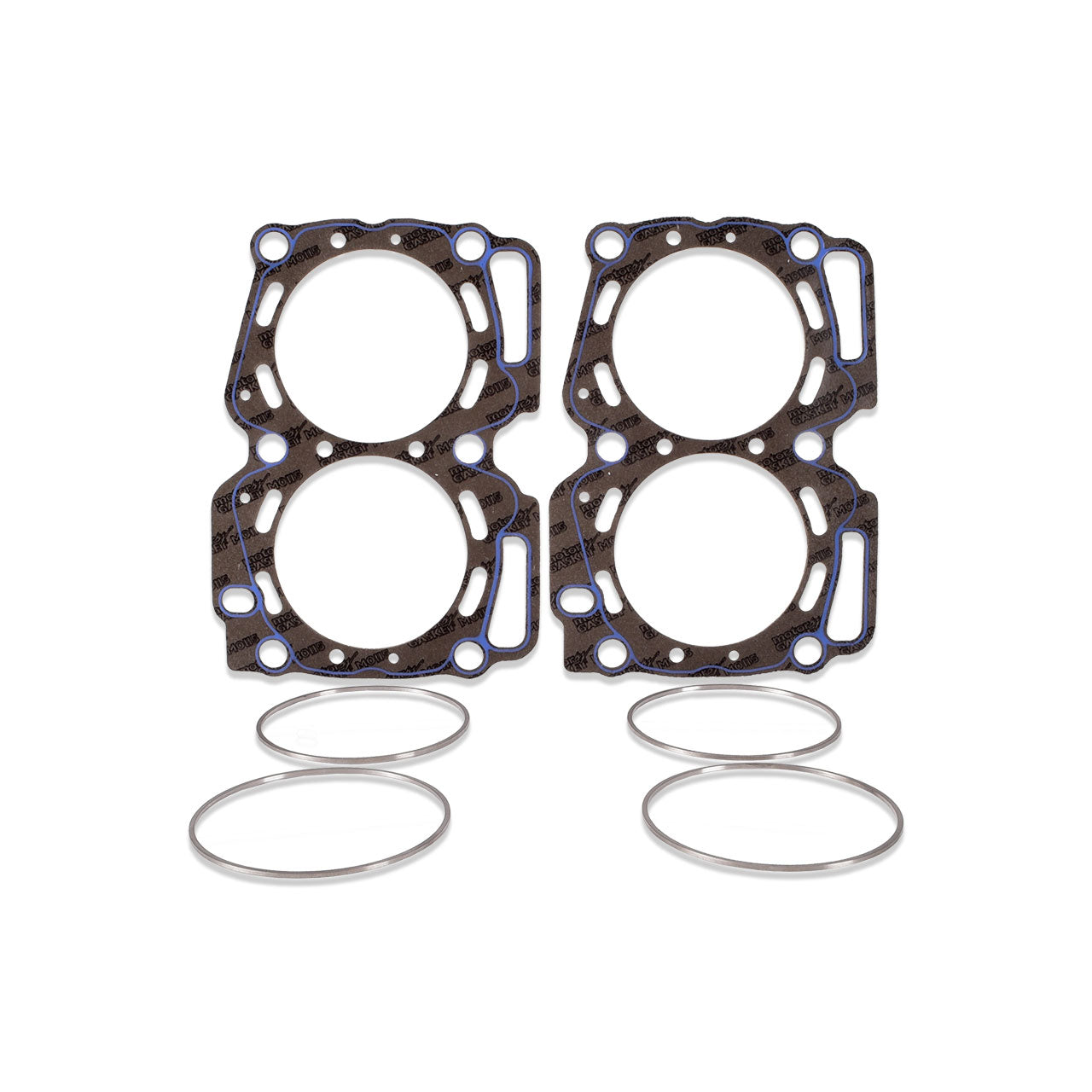

The IAG 950 Short Block is the ultimate "weekend racer" block. Built to withstand up to 950 BHP, this is our strongest "Street" short block offering. The IAG 950 short block features +2mm IAG Spec H-Beam forged connecting rods, IAG-Spec JE Pistons with electroless nickel plated coating with H13 tool steel wrist pins, and our venerable "Fire-Lock™" head gasket system for 14mm head studs. Each IAG 950 short block is hand assembled using ACL or King rod and main bearings. This combination of parts makes the IAG 950 the perfect block for drag or road racing. The IAG 950 Short Block starts with brand new Subaru 2.5L engine case halves. Our machinists machine the assembled case halves in our Haas VF-4SS CNC mill to accept the IAG Closed Deck inserts, transforming the block into a solid deck. Next, a deck pair of deck plates are attached and the short block is bored and honed to 99.75mm in our in-house Sunnen SV-30 computer controlled cylinder hone. IAG's in-house honing process allows us to set custom piston to wall clearances to ensure quiet operation and reduced oil consumption. The Haas mill also cuts a groove at the top of each cylinder to accept the Fire-Lock™ head gasket rings and drills each head bolt hole for 14mm head studs. The modified case halves are then assembled using a new 2017+ Subaru 2.5L nitride treated STI crankshaft and IAG-Spec Tuff H-Beam connecting rods with ARP rod bolts. IAG Short blocks feature ACL or King Race rod and main bearings. Finally, the case halves are sealed with new OEM main/case bolts and sealant.

This Part Fits:

Year	Make	Model	Submodel	Notes
2005	Saab	9-2X	Aero
2006	Saab	9-2X	Aero
2004	Subaru	Baja	Turbo
2005	Subaru	Baja	Turbo
2006	Subaru	Baja	Turbo
2008	Subaru	Forester	2.5 XT
2008	Subaru	Forester	Sports 2.5 XT
2010	Subaru	Forester	XT Sports
2011	Subaru	Forester	XT Sports
2012	Subaru	Forester	XT Sports
2011	Subaru	Forester	XT Touring
2012	Subaru	Forester	XT Touring
2013	Subaru	Forester	XT Touring
2009	Subaru	Impreza	2.5 GT
2010	Subaru	Impreza	2.5 GT
2002	Subaru	Impreza	WRX
2003	Subaru	Impreza	WRX
2004	Subaru	Impreza	WRX
2005	Subaru	Impreza	WRX
2006	Subaru	Impreza	WRX
2007	Subaru	Impreza	WRX
2008	Subaru	Impreza	WRX
2009	Subaru	Impreza	WRX
2010	Subaru	Impreza	WRX
2011	Subaru	Impreza	WRX
2012	Subaru	Impreza	WRX
2013	Subaru	Impreza	WRX
2014	Subaru	Impreza	WRX
2010	Subaru	Impreza	WRX GT
2009	Subaru	Impreza	WRX Premium
2010	Subaru	Impreza	WRX Premium
2011	Subaru	Impreza	WRX Premium
2012	Subaru	Impreza	WRX Premium
2010	Subaru	Impreza	WRX SE
2004	Subaru	Impreza	WRX STI
2005	Subaru	Impreza	WRX STI
2006	Subaru	Impreza	WRX STI
2007	Subaru	Impreza	WRX STI
2008	Subaru	Impreza	WRX STI
2009	Subaru	Impreza	WRX STI
2010	Subaru	Impreza	WRX STI
2011	Subaru	Impreza	WRX STI
2012	Subaru	Impreza	WRX STI
2013	Subaru	Impreza	WRX STI
2014	Subaru	Impreza	WRX STI
2010	Subaru	Impreza	WRX STI Special Edition
2006	Subaru	Impreza	WRX TR
2007	Subaru	Impreza	WRX TR
2011	Subaru	Legacy	2.5GT
2012	Subaru	Legacy	2.5GT
2006	Subaru	Legacy	GT spec.B
2007	Subaru	Legacy	GT spec.B
2008	Subaru	Legacy	GT spec.B
2009	Subaru	Legacy	GT spec.B
2008	Subaru	Outback	2.5 XT
2005	Subaru	Outback	XT
2006	Subaru	Outback	XT
2007	Subaru	Outback	XT
2008	Subaru	Outback	XT
2005	Subaru	Outback	XT Limited
2006	Subaru	Outback	XT Limited
2007	Subaru	Outback	XT Limited
2008	Subaru	Outback	XT Limited
2009	Subaru	Outback	XT Limited
2012	Subaru	WRX	STI
2015	Subaru	WRX STI
2016	Subaru	WRX STI
2017	Subaru	WRX STI
2018	Subaru	WRX STI
2019	Subaru	WRX STI
2020	Subaru	WRX STI
2021	Subaru	WRX STI
