HPS Performance 17-105WB Hot and Cold Side Charge Pipes, High Temp Reinforced Silicone Turbo CAC Boots

This HPS Hot and Cold Side Charge Pipe Kit addresses some of the most common issues that owners eventually come across on their 6.0L Powerstroke. From cracked pipes to worn out boots, HPS has the solution to keep your truck up and running regardless of how harsh the operation conditions are—even the hottest days. The factory hot side pipe is notorious for failing at the boots as it sits in the engine bay without any reinforcements to hold it in place. This puts a lot of stress on the boots and often leads to premature failure. A custom brace is included in the kit to help mount it in place and take the pressure off of the connecting points. This kit also addresses the weak and brittle plastic cold side charge pipe that some of these 6.0L Powerstroke vehicles came with. Additionally, HPS has also engineered these pipes using mandrel-bent 6061-grade aluminum tubing to reduce weight by approximately 50%. This upgraded piping, on both hot and cold sides, also boasts performance gains as the smoother pathway improves air flow, allowing better throttle response and faster acceleration for better drivability. The stock intercooler boots are made of silicone and are reinforced with just two layers of polyester. Because the 6.0L Powerstroke engines breathe a lot of oil through the turbo, these stock parts will degrade, become soft, and eventually rip or blow through. The custom boots in this kit are designed with 4-plies of high-temperature, high-pressure, and oil-resistant silicone material that will withstand the constant flow of oil without compromising their integrity. Held in place using HPS Stainless Steel Spring-Loaded T-bolt Clamps, fluctuations in temperature do not require maintenance as they provide constant tension to accommodate for these changes. Crafted to resist corrosion, these clamps will stand up against the elements with ease.

Specifications:

Clamps Included	Yes
Coupler Color	Orange
Coupler Material	Fluorolined Silicone
Pipe Color	Black
Pipe Material	Aluminum
Hot Side End 1 Outside Diameter	2.5 inch
Hot Side End 2 Outside Diameter	3 inch
Cold Side End 1 Outside Diameter	3 inch
Cold Side End 2 Outside Diameter	3 inch
Description_SHO	Charge Pipe Kit
Description_INV	HPS Turbo Charge Pipe Kit
Description_ASC	REMARK: Single Alternator Only
Description_KEY	ford, powerstroke, superduty, super duty, f250, f350, f450, f550, ford powerstroke, ford super duty, ford f250, ford f350, ford f450, ford f550, 2003, 2004, 2005, 2006, 2007, 2003 superduty, 2004 superduty, 2005 superduty, 2006 superduty, 2007 superduty, diesel, turbo, turbocharged, 6, 6L, 6.0, 6.0L, f-250, f-350, f-450, f-550, f-250 super duty, f-350 superduty, f-450 super duty, f-550 super duty, charge pipe, charge hose, hot side, cold side, intercooler, intercooler pipe, intercooler hose, intercooler boot, cac hose, cac boot, silicone, aluminum pipe, oil resistant, high temperature, high pressure, replacement hose, replacement upgrade, hps, hps performance, hps charge pipe, hps chare pipe kit, hps intercooler pipe, hps intercooler pipe kit, performance, throttle response, acceleration, turbo lag, boost leak, air leak, 17-105, 17-105wb, 17105, 17105wb, black, wrinkle black
Description_DES	Hot and Cold Side Charge Pipes, High Temp Reinforced Silicone Turbo CAC Boots
Description_ASM	Ford: F-250 Super Duty 03 - 07 6 L Engine, Ford: F-350 Super Duty 03 - 07 6 L Engine, Ford: F-450 Super Duty 03 - 07 6 L Engine, Ford: F-550 Super Duty 03 - 07 6 L Engine

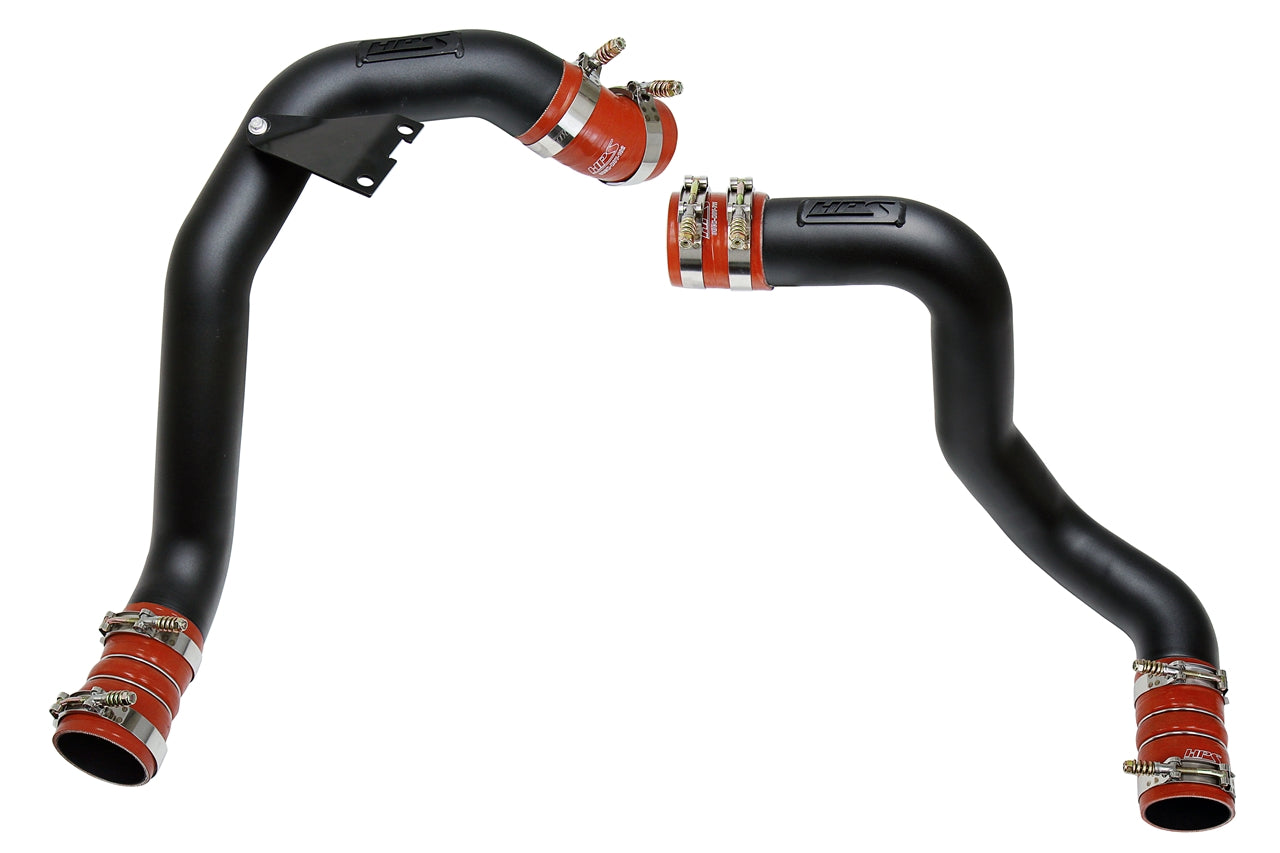

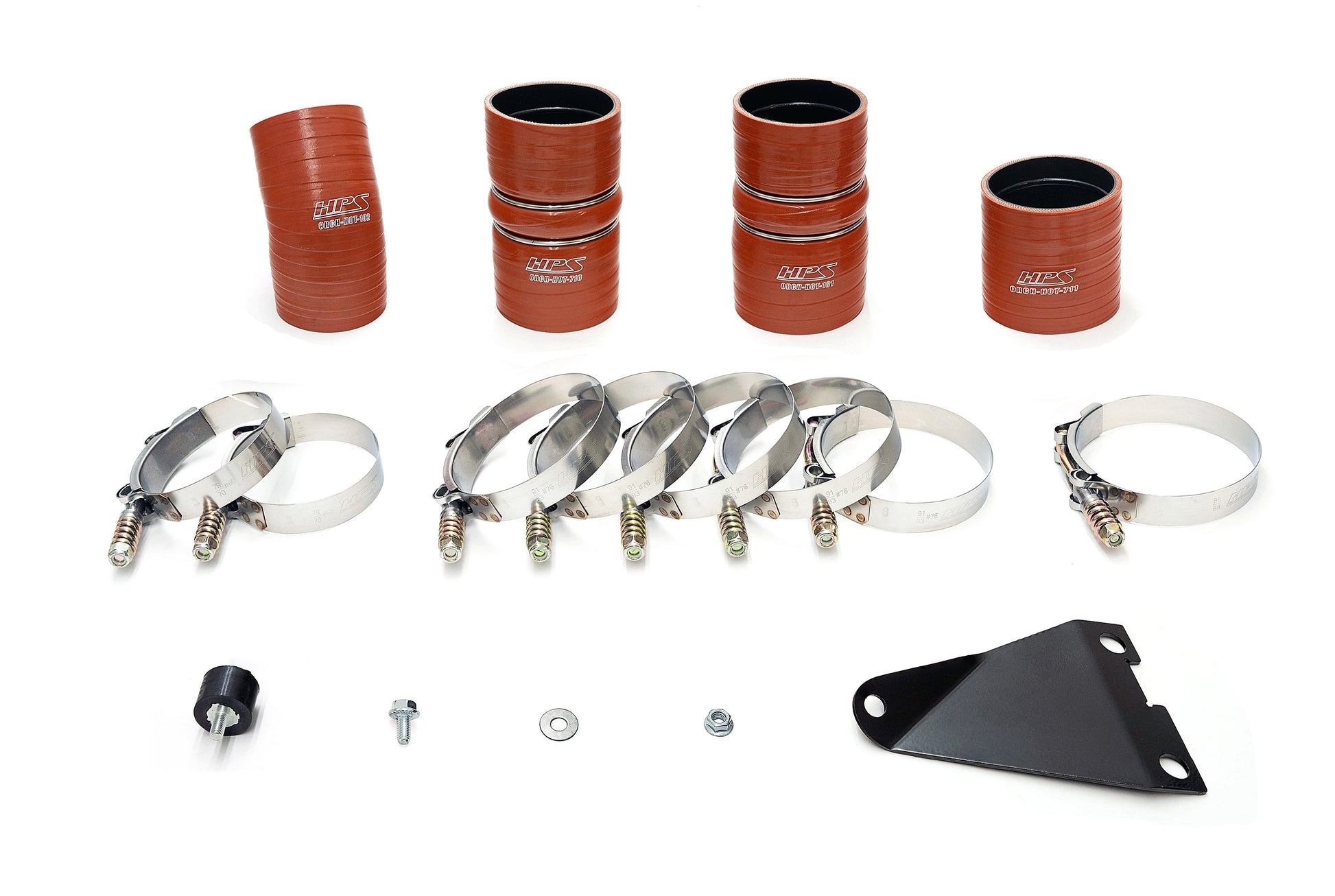

Description_EXT	Includes HPS Performance hot and cold side aluminum intercooler pipes, ultra high temp 4-ply aramid reinforced fluorolined silicone CAC boots, custom mounting bracket, and heavy duty spring loaded T-bolt clamps.
Description_MKT	This HPS Hot and Cold Side Charge Pipe Kit addresses some of the most common issues that owners eventually come across on their 6.0L Powerstroke. From cracked pipes to worn out boots, HPS has the solution to keep your truck up and running regardless of how harsh the operation conditions are—even the hottest days. The factory hot side pipe is notorious for failing at the boots as it sits in the engine bay without any reinforcements to hold it in place. This puts a lot of stress on the boots and often leads to premature failure. A custom brace is included in the kit to help mount it in place and take the pressure off of the connecting points. This kit also addresses the weak and brittle plastic cold side charge pipe that some of these 6.0L Powerstroke vehicles came with. Additionally, HPS has also engineered these pipes using mandrel-bent 6061-grade aluminum tubing to reduce weight by approximately 50%. This upgraded piping, on both hot and cold sides, also boasts performance gains as the smoother pathway improves air flow, allowing better throttle response and faster acceleration for better drivability. The stock intercooler boots are made of silicone and are reinforced with just two layers of polyester. Because the 6.0L Powerstroke engines breathe a lot of oil through the turbo, these stock parts will degrade, become soft, and eventually rip or blow through. The custom boots in this kit are designed with 4-plies of high-temperature, high-pressure, and oil-resistant silicone material that will withstand the constant flow of oil without compromising their integrity. Held in place using HPS Stainless Steel Spring-Loaded T-bolt Clamps, fluctuations in temperature do not require maintenance as they provide constant tension to accommodate for these changes. Crafted to resist corrosion, these clamps will stand up against the elements with ease.
Description_FAB	Improves acceleration and throttle response for a better driving experience.
Description_FAB	Upgraded replacement product for the inferior hot and cold side factory steel and plastic charge pipes. Does NOT require retuning or any additional modifications.

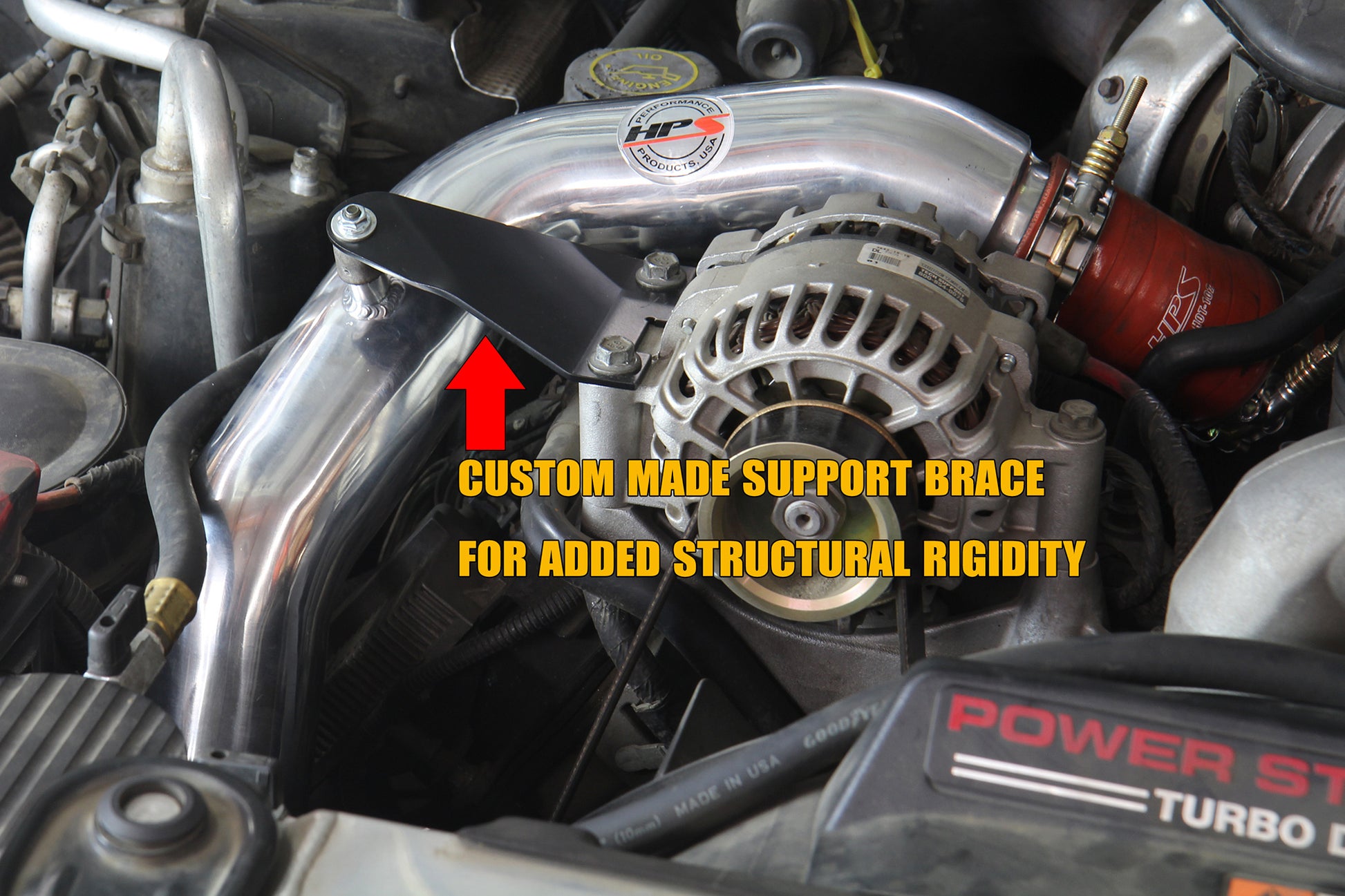

Description_FAB	Custom engineered mounting brace for the hot side pipe that adds structural rigidity.
Description_FAB	Ultra high-temperature, high-pressure-resistant, oil-resistant 4-ply aramid-reinforced silicone couplers for excellent durability against the harshest operating conditions.
Description_FAB	Includes industrial-grade, spring-loaded T-bolt clamps that provide constant tension and eliminate the need for maintenance in fluctuating temperature conditions.
Description_DEF	Intercooler Pipe

This Part Fits:

Year	Make	Model	Submodel	Notes
2003	Ford	F-250 Super Duty
2004	Ford	F-250 Super Duty
2005	Ford	F-250 Super Duty
2006	Ford	F-250 Super Duty
2007	Ford	F-250 Super Duty
2003	Ford	F-350 Super Duty
2004	Ford	F-350 Super Duty
2005	Ford	F-350 Super Duty
2006	Ford	F-350 Super Duty
2007	Ford	F-350 Super Duty
2003	Ford	F-450 Super Duty
2004	Ford	F-450 Super Duty
2005	Ford	F-450 Super Duty
2006	Ford	F-450 Super Duty
2007	Ford	F-450 Super Duty
2003	Ford	F-550 Super Duty
2004	Ford	F-550 Super Duty
2005	Ford	F-550 Super Duty
2006	Ford	F-550 Super Duty
2007	Ford	F-550 Super Duty
