HEL Performance ABS Delete Lines for Subaru Impreza WRX & STi 2002-2007, Stainless Steel Braided
HEL Performance ABS Delete Lines for Subaru Impreza WRX & STi 2002-2007, Stainless Steel Braided
Regular price
$354.51 USD
Regular price
Sale price
$354.51 USD
Unit price
per
Shipping calculated at checkout.
ABS Delete Lines
Standard OEM Replacements
Like for like replacements for the standard flexible brake hoses on your vehicle.
Want to see behind the scenes?

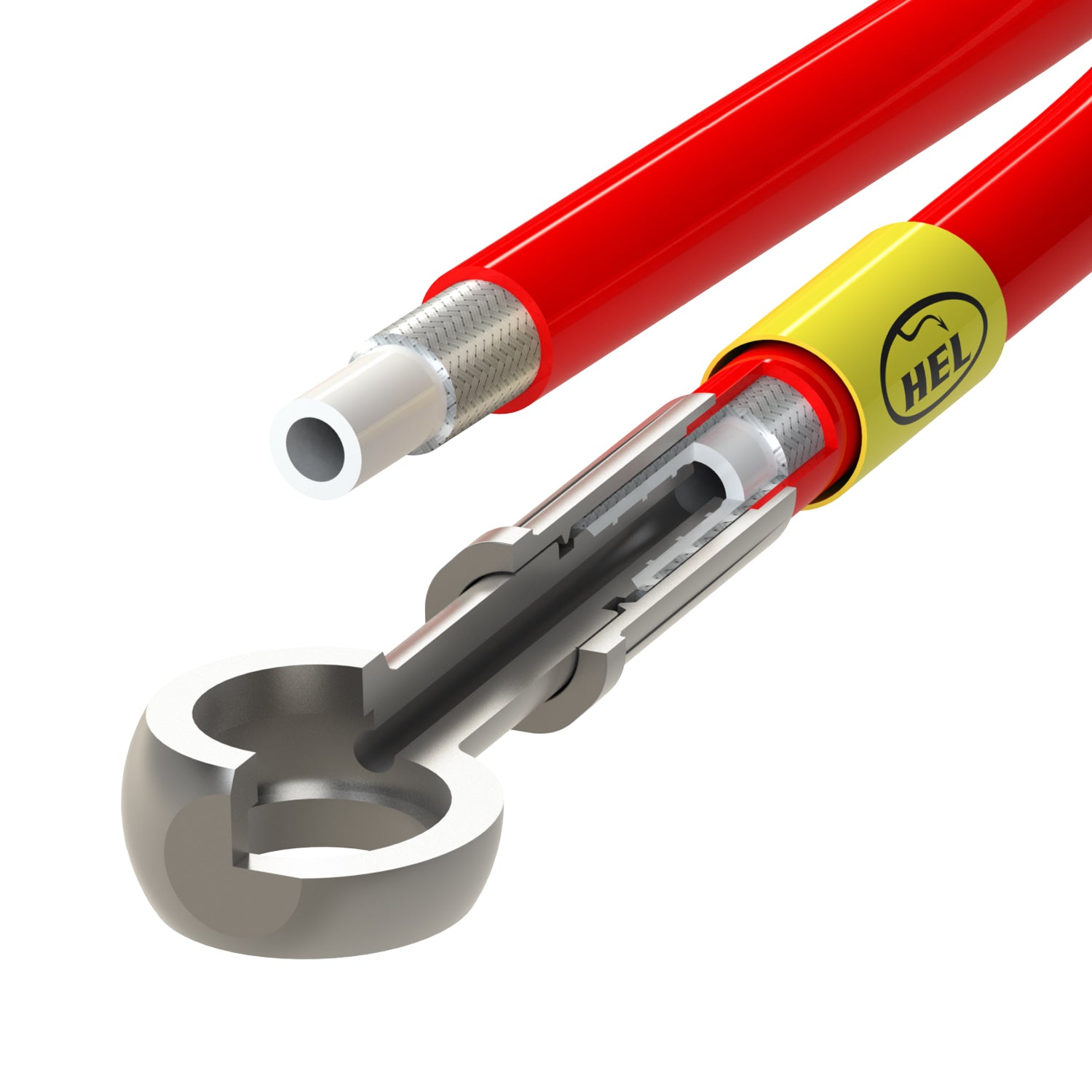

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.
Hose Specifications
| AN Hose Size | AN3, AN03, -3 |
| Internal Diameter | 3mm, 1/8" |
| External Diameter | 8mm, 5/16" |
| Weight (Per Metre) | 71g, 0.16lbs |
| Inner Material (Core) | PTFE |

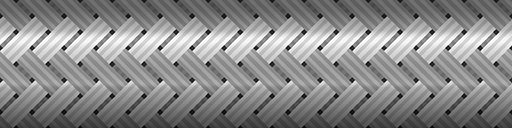

| External Material (Overbraid) | Stainless Steel - 303/304 |

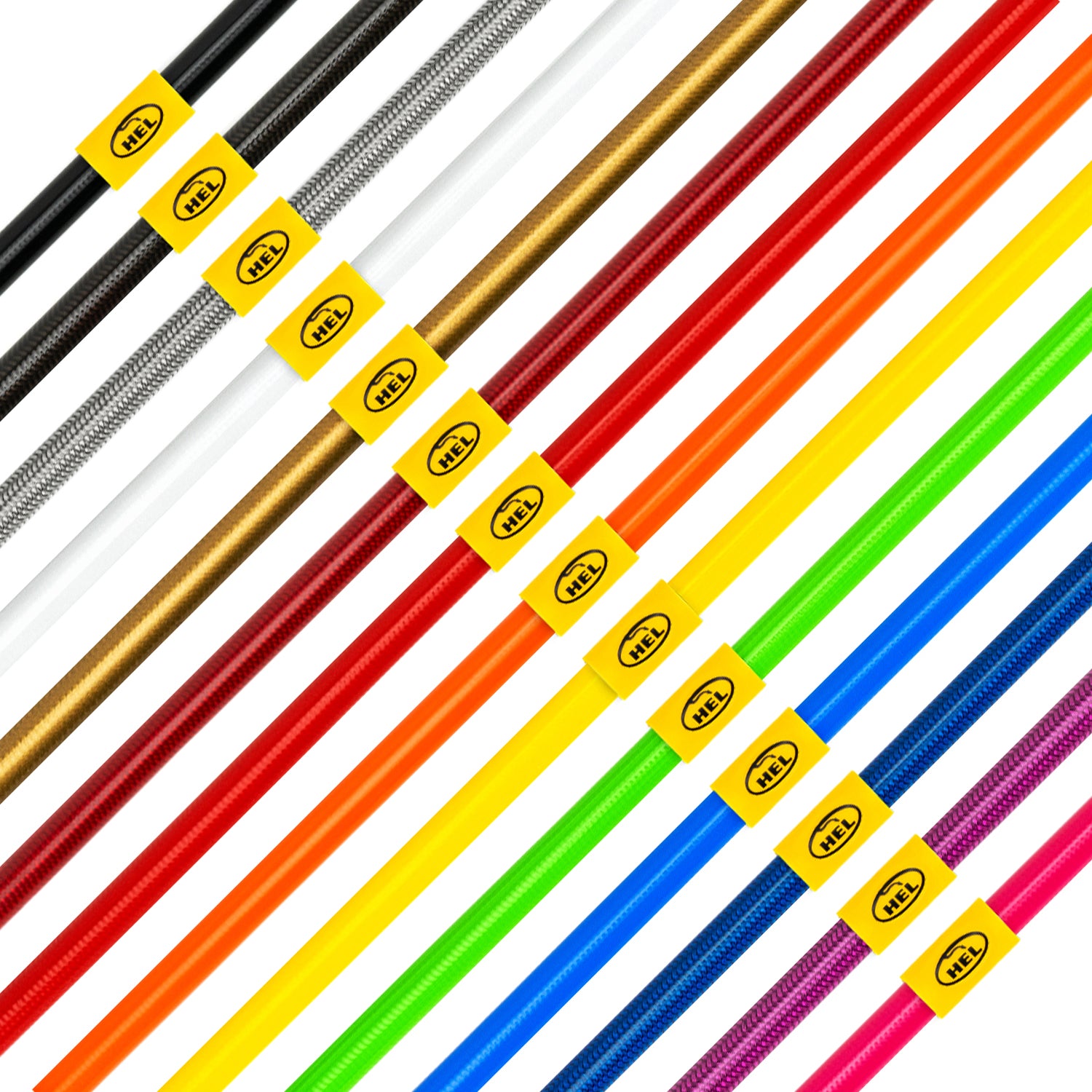

| External Material (Outer) | PVC (Transparent or Colored) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Minimum Temperature | -70°C -94°F |
| Maximum Temperature | 250°C, 482°F |
| Operating Pressure | 4206 PSI, 290 BAR |
| Burst Pressure | 12618 PSI, 870 BAR |
| Minimum Bend Radius (90°) | 19mm, 0.7" |
| Fluid Compatibility | Petrol, E5, E10, E85, Race Fuel, Methanol, Diesel, Nitrous Oxide, Engine & Hydraulic Oil, Air, CO2, Coolant, Water, Brake & Clutch Fluid (DOT) |
| Brand | HEL Performance |
