CAE Ultra Shifter GT86/GR86/BRZ Black Anodized

CAE Ultra Shifter GT86/GR86/BRZ Black Anodized

$1,060.00 USD
$1,060.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

CAE Ultra Shifter - Optimised for motor sports with the following features

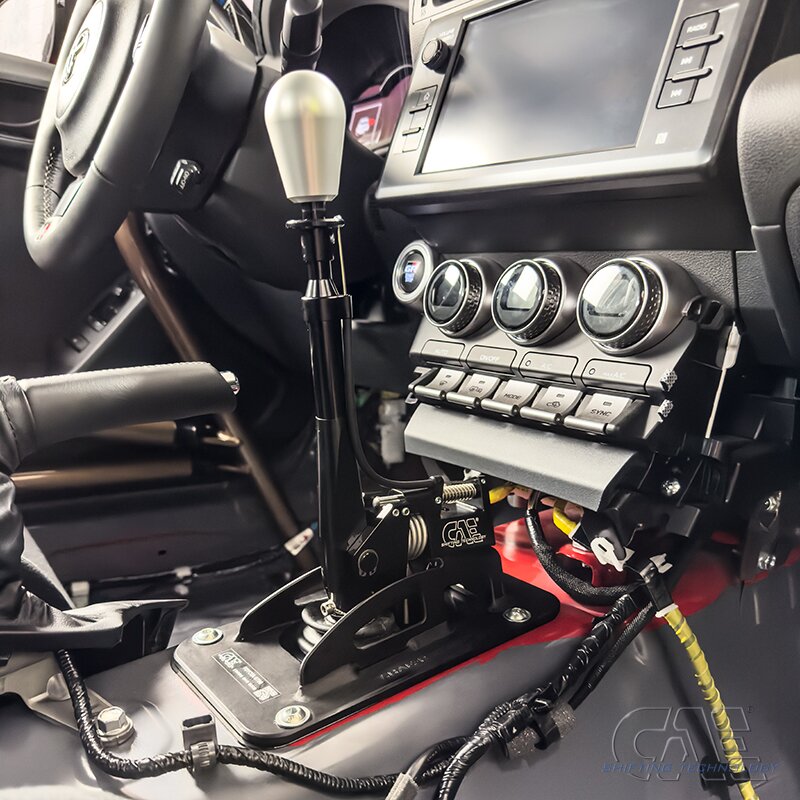

  • CAE Shifter for Subaru BRZ Toyota GT86 & GR86 2022+  with 6 speed manual transmissions, standard H-pattern
  • Short and super-precise shifting travel, exclusively H-pattern.
  • The clutch system remains in its original form.

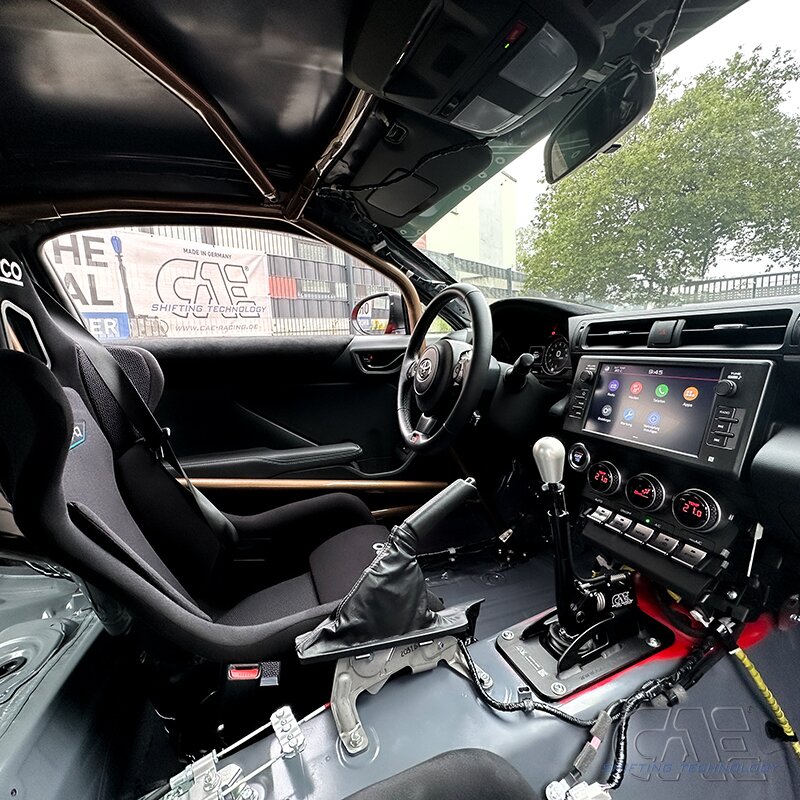

  • Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
  • Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
  • Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 & 6mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
  • Problem-free shifting of gears under stress or in curves.
  • Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
  • Right/left stops and reverse gear stop adjustable separately.
  • Complete kit for adaptation stock shift rod with all small parts and fastening material

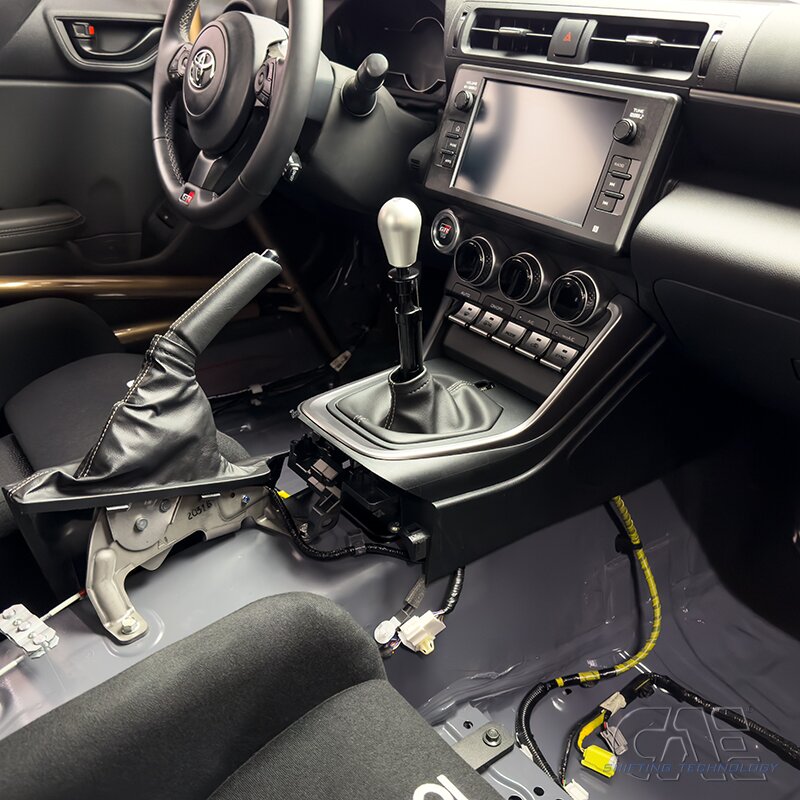

  • centre console have to be slightly modified fo Installation

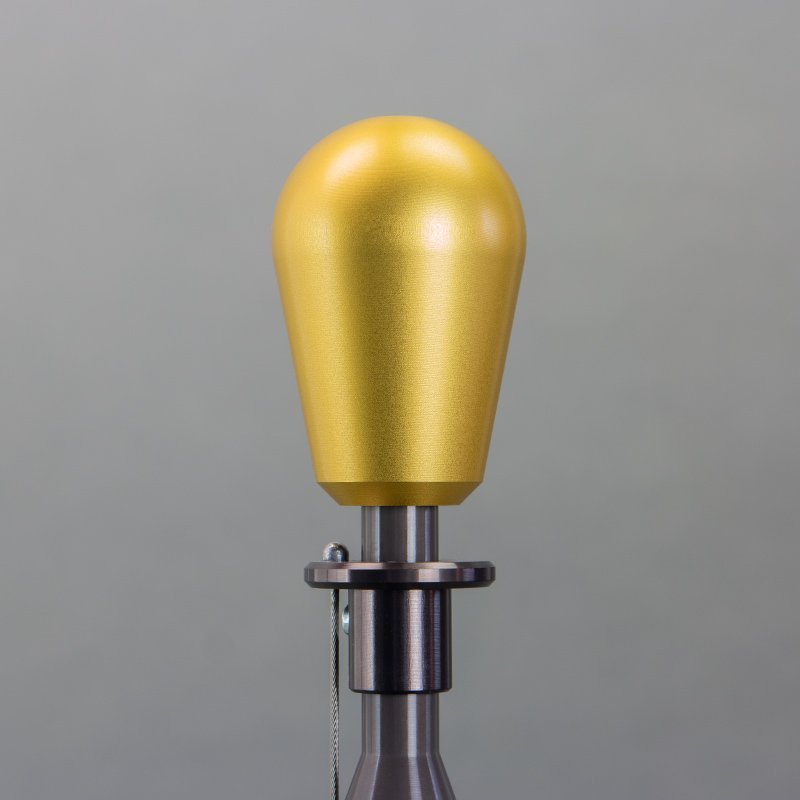

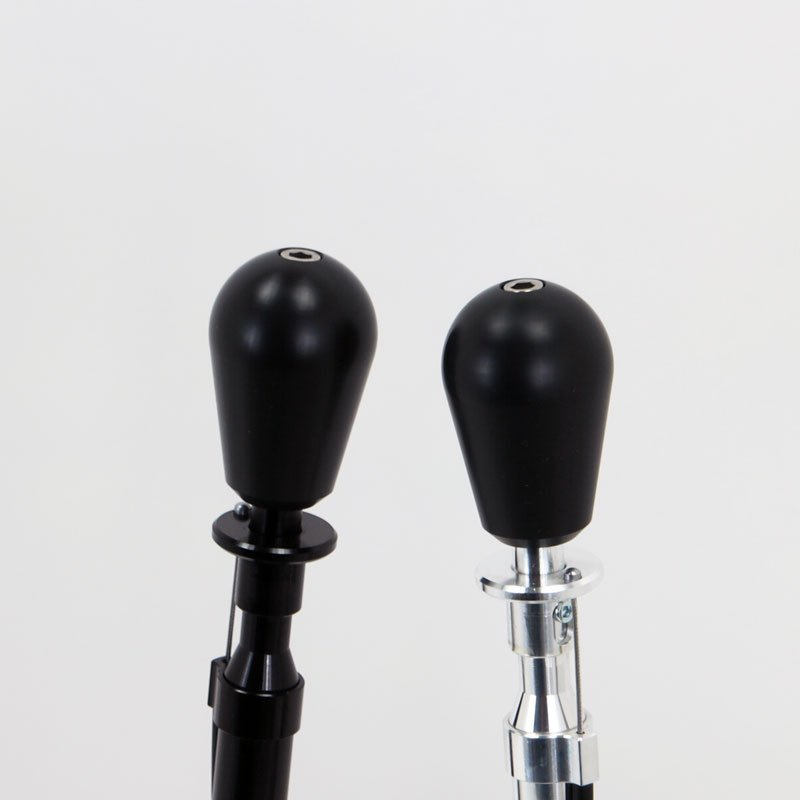

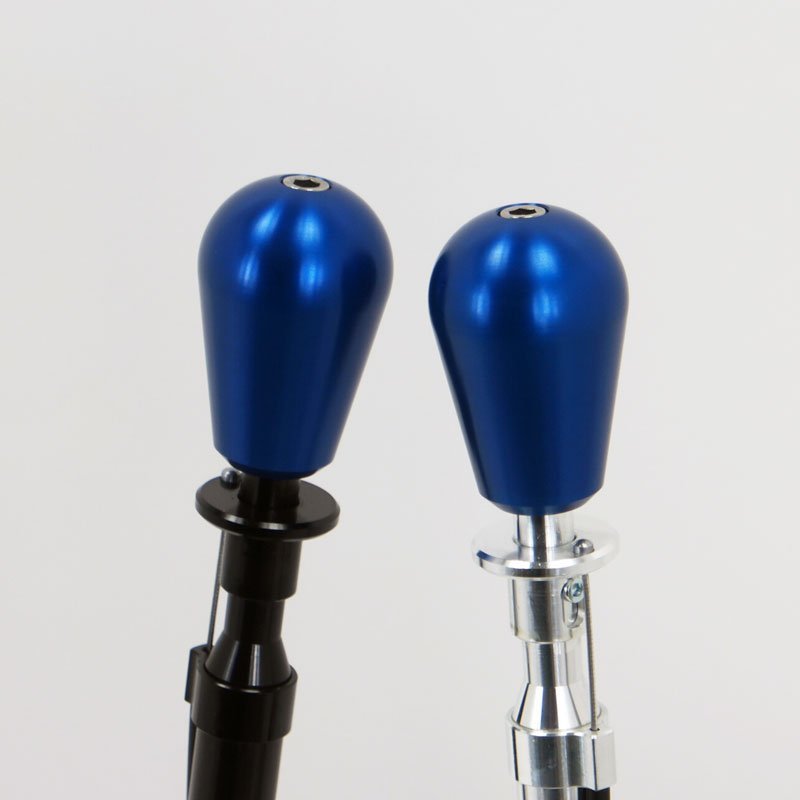

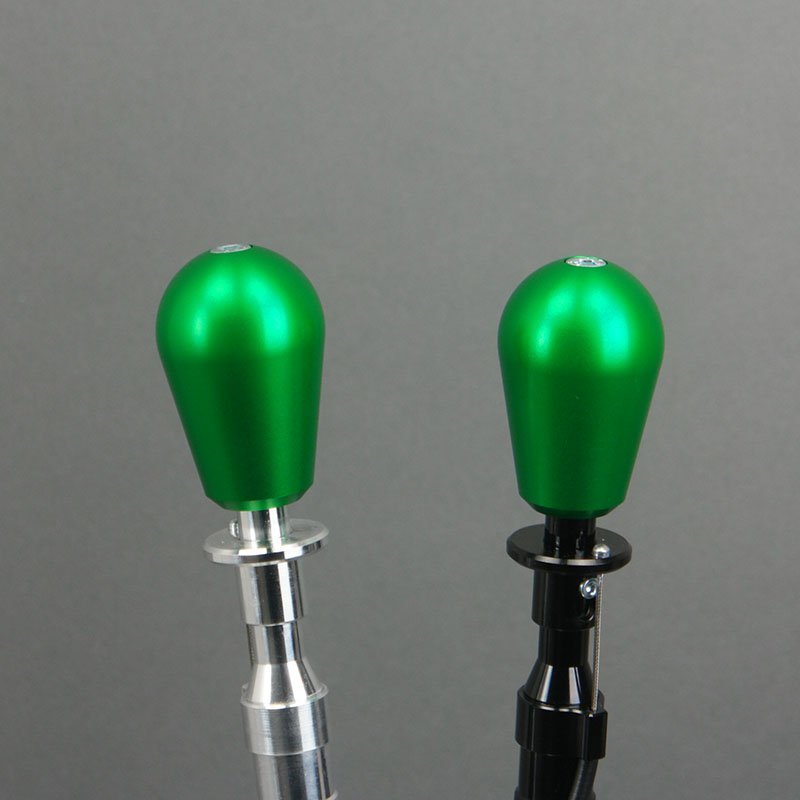

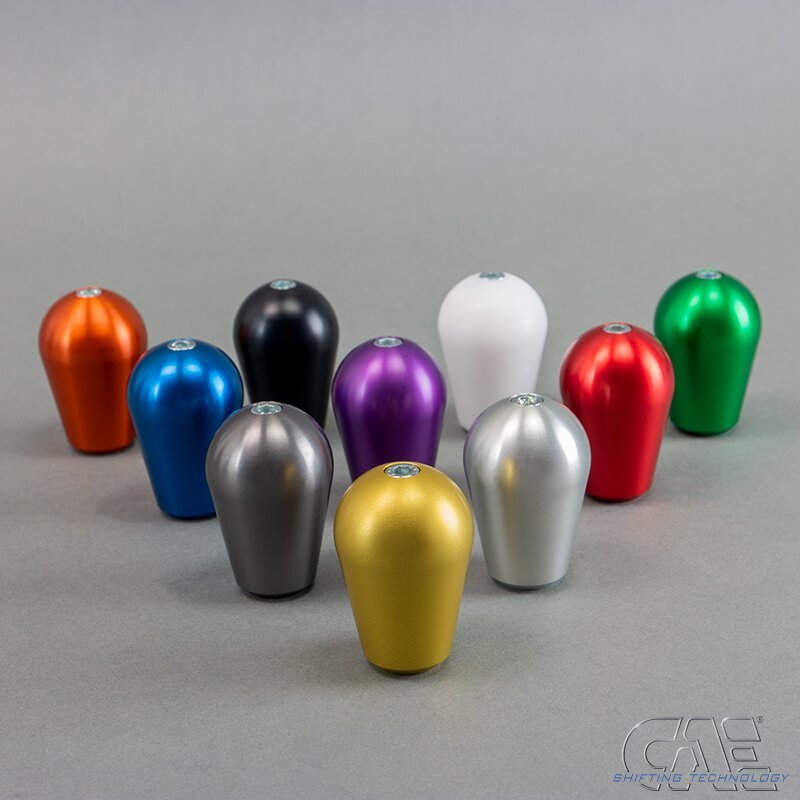

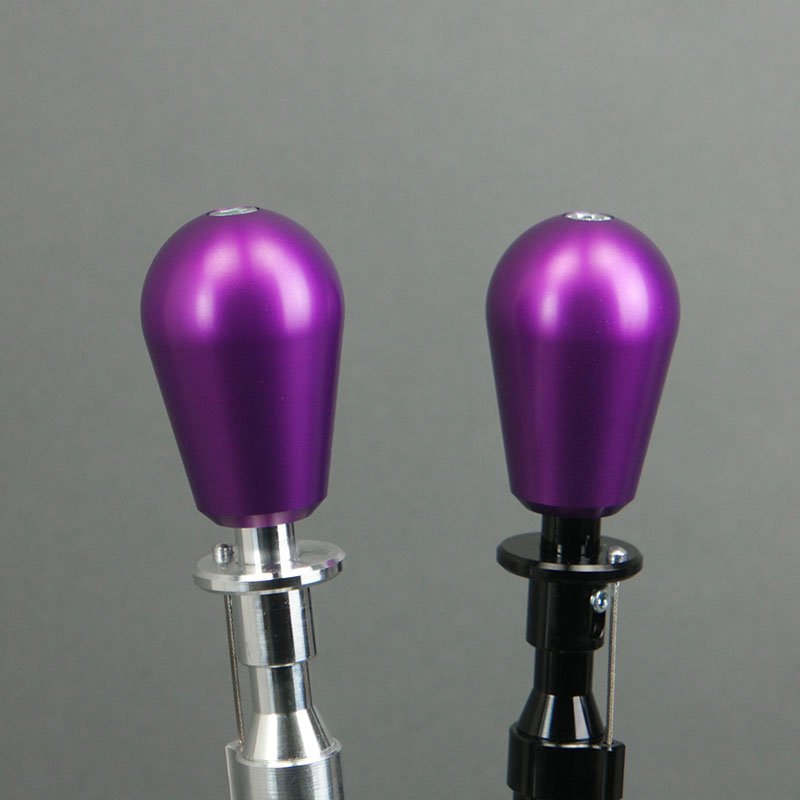

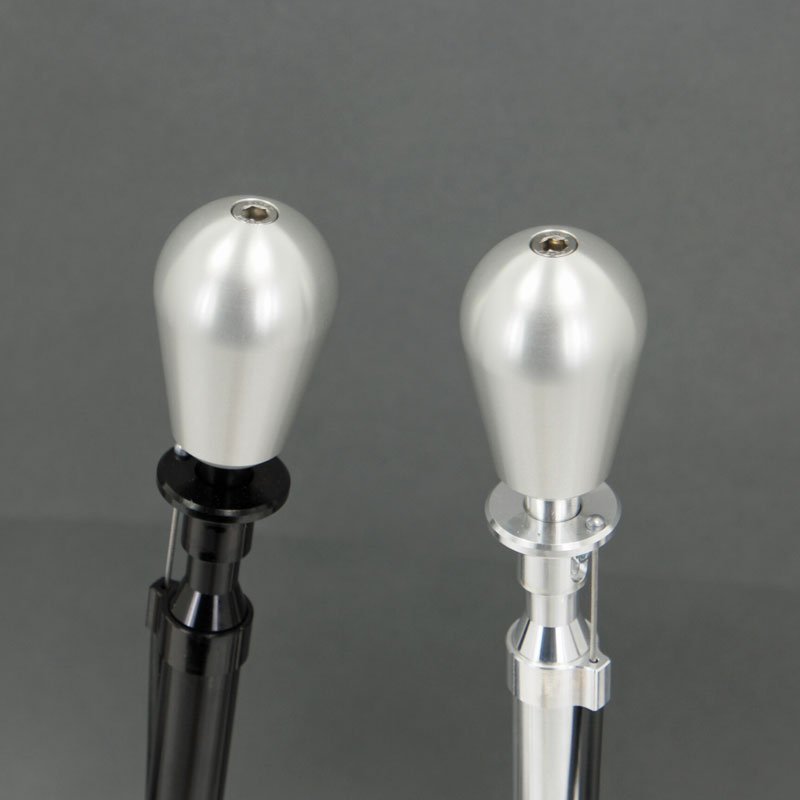

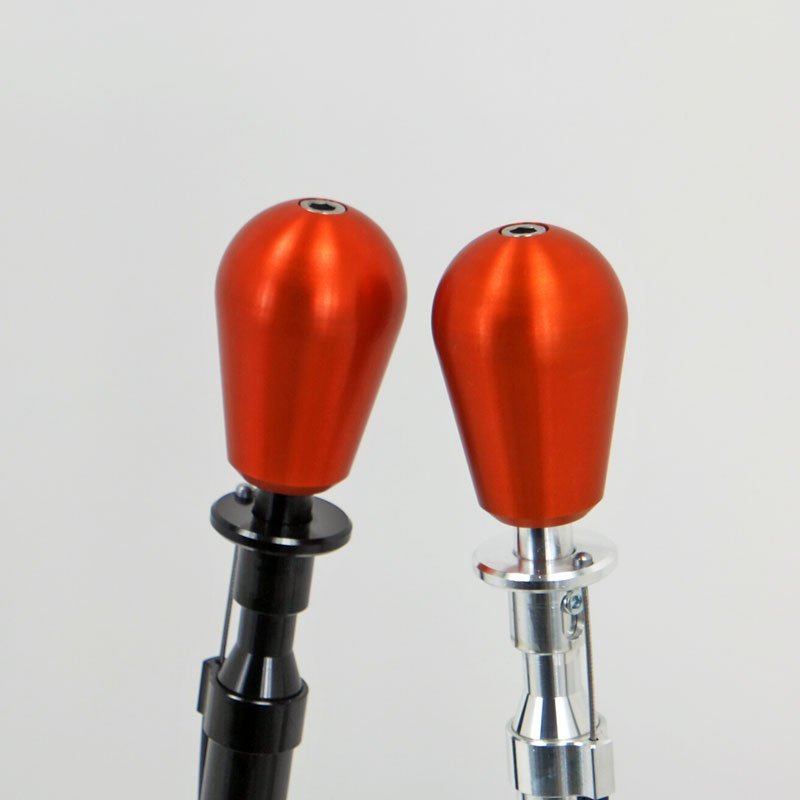

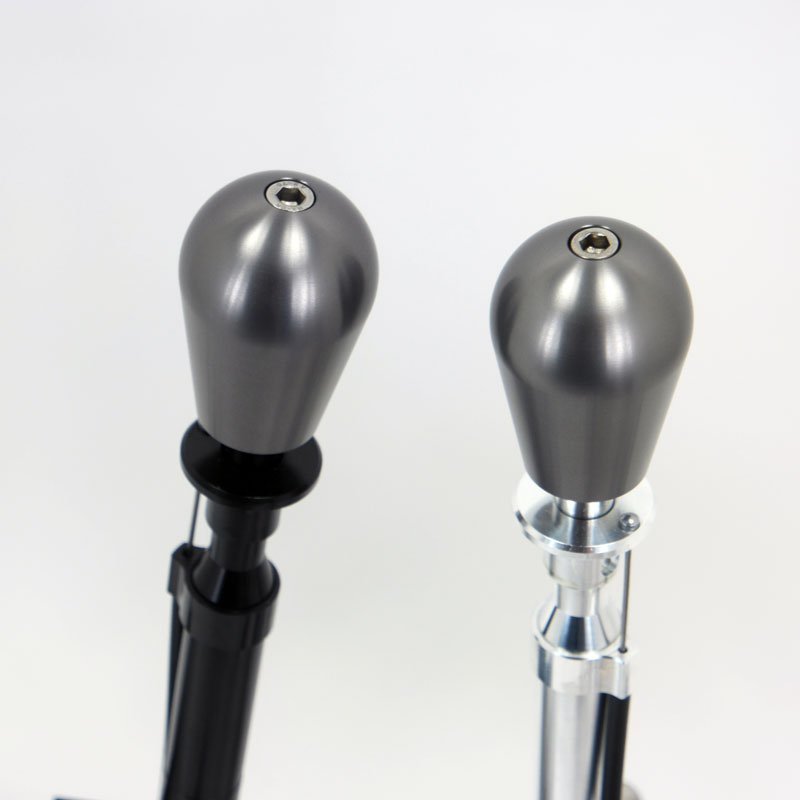

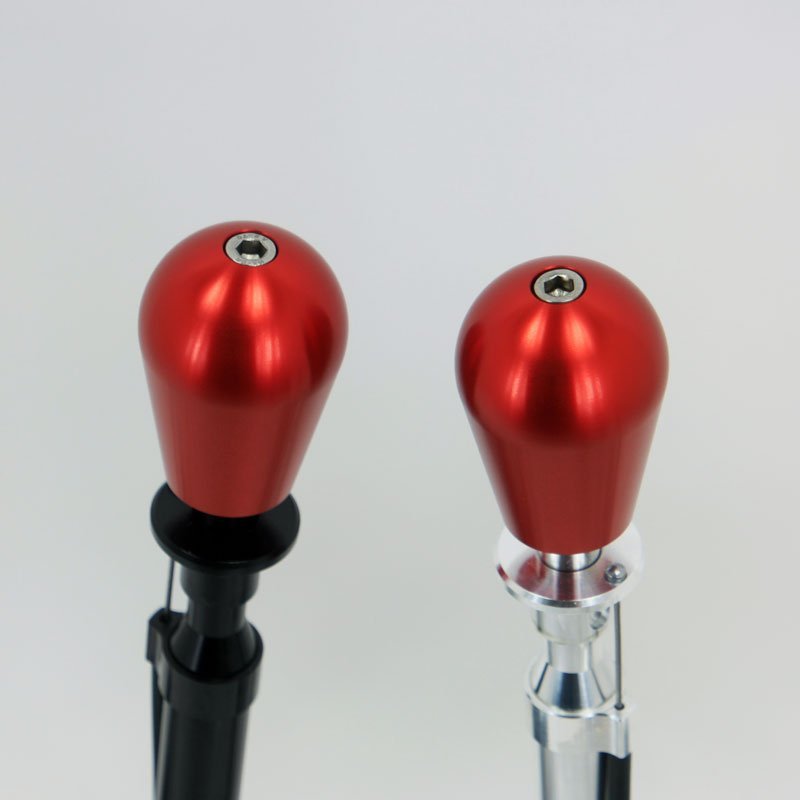

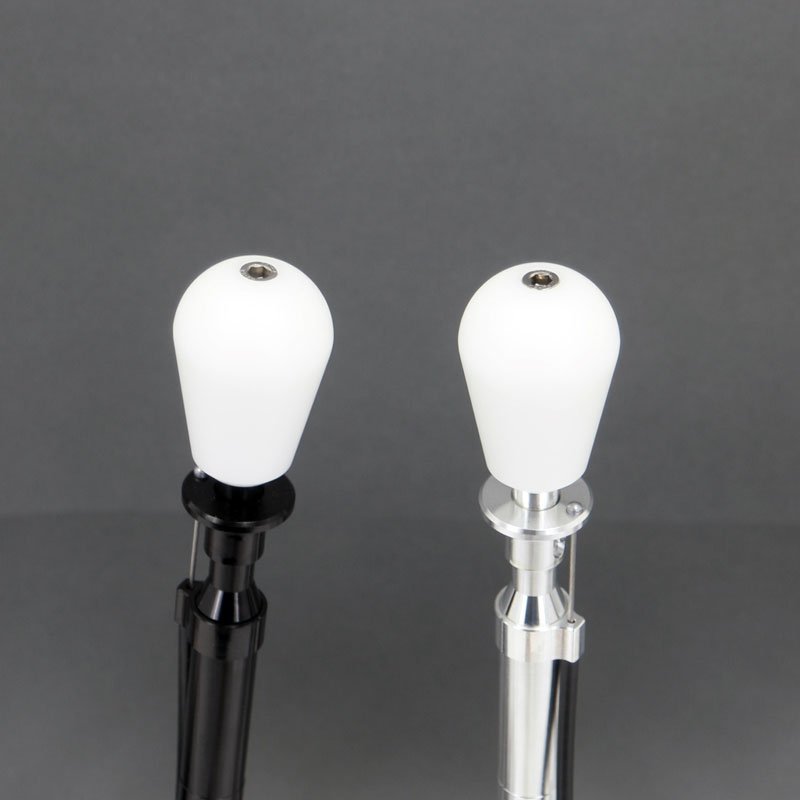

  • Surface of the shifter and shift knob selectable in different versions, optional against extra charge wrapped with grey alcantara with colored X-seam


Total height: approx. 380 mm
Total length: approx. 225 mm
Dimensions of base plate: approx. 225 x 125 mm
Shifting travel: approx. 65 mm
Selector travel (transverse direction): approx. 65 mm
Weight (complete): approx. 1,05 kg
Offset of the gear lever knop (back / up): approx. 20 / 80 mm

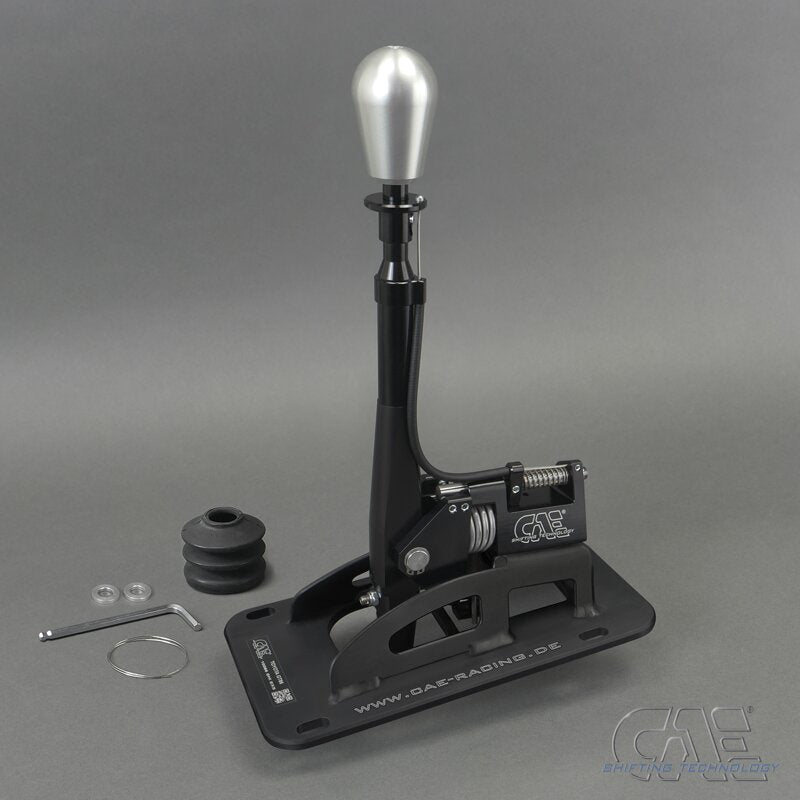

Delivery: Shifter completely assembled, Cover sheet with rubber boot, all screws and small parts

Installation instructions for download: see below

ATTENTION
TÜV PARTS CERTIFICATE is available for this Shifter.
The legal use in road traffic is therefore possible without any problems after the assessment by a testing organization.
please ask in your country about the applicable regulations
https://cae-racing.de/TUEV-Part-certificate



Delays of 6-9 Weeks possible for out of stock CAE Shifters

CAE Ultra Shifter Installation Manual GT86, FRS, BRZ Gen 1

CAE Ultra Shifter Installation Manual GR86, BRZ Gen 2
