CAE Ultra Shifter for VW Corrado 02A Black Anodized

CAE Ultra Shortshifter for VW Corrado with 02A Gearboxes

• Short and super-precise shifting travel, exclusively H-pattern and suitable for 5- and 6-gear transmissions.
• The coupling system remains in its original form.
• Racing-style appearance.

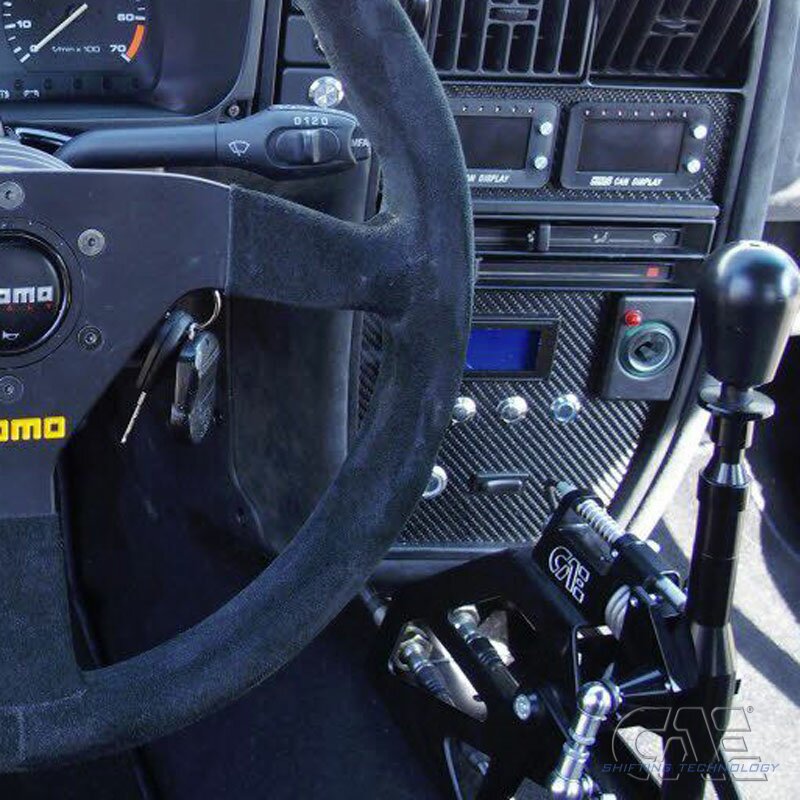

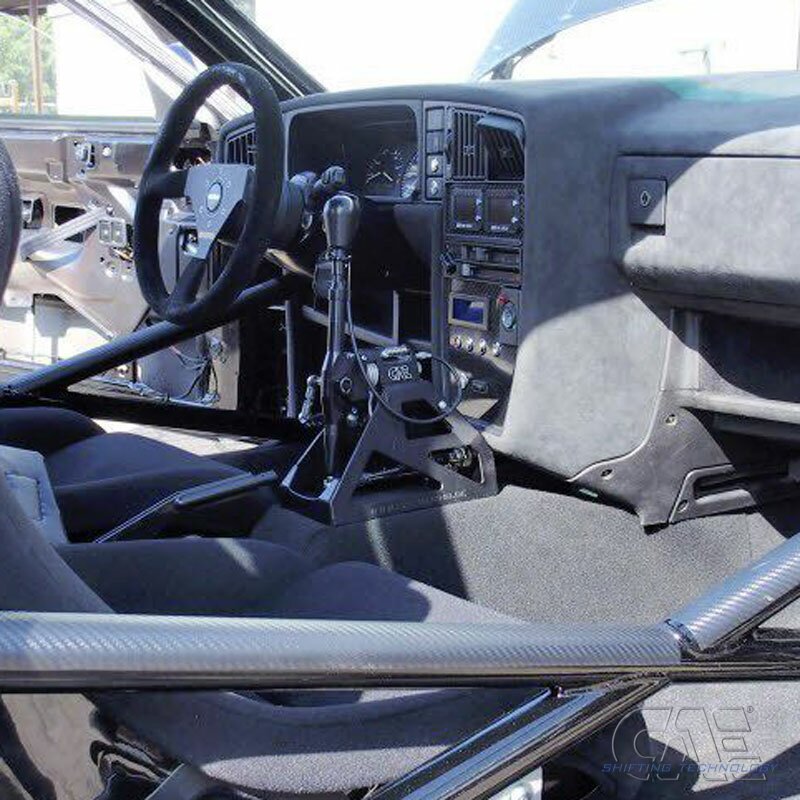

• Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
• Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
• Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
• Problem-free shifting of gears under stress or in curves.
• Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
• Right/left stops and reverse gear stop adjustable separately.
• Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.
• Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.

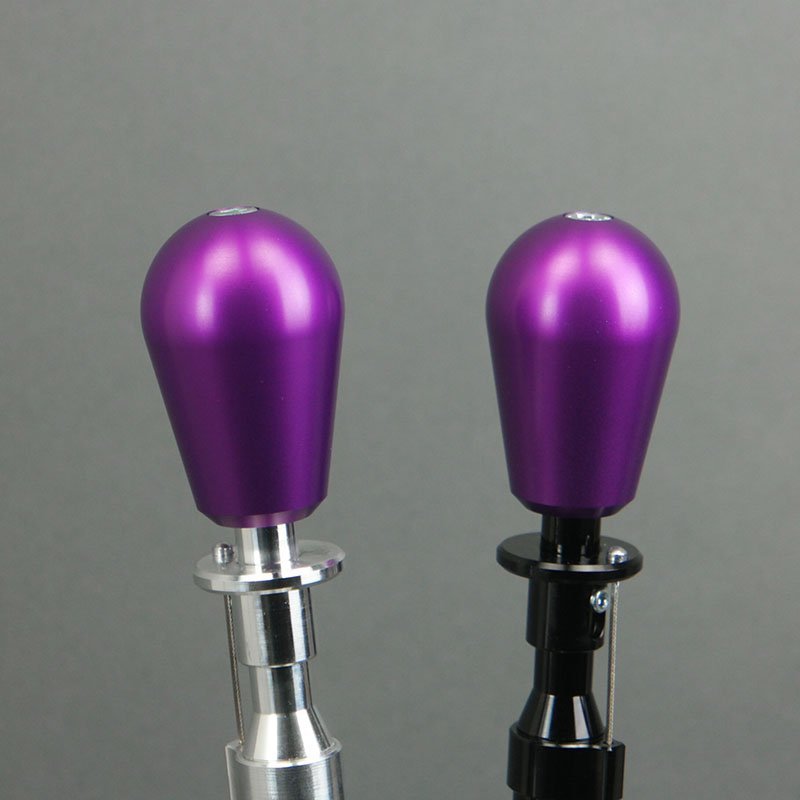

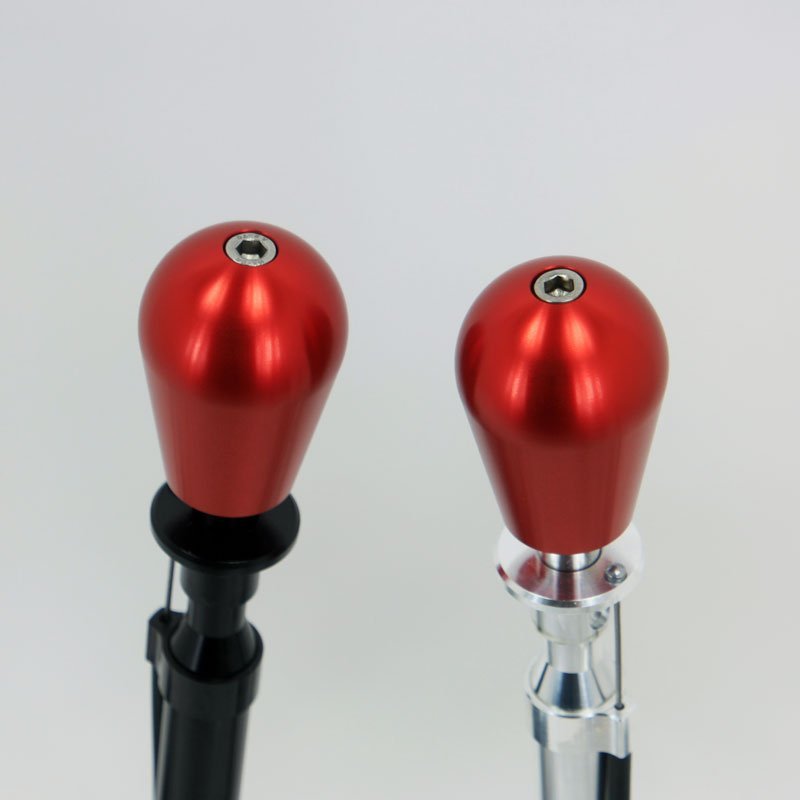

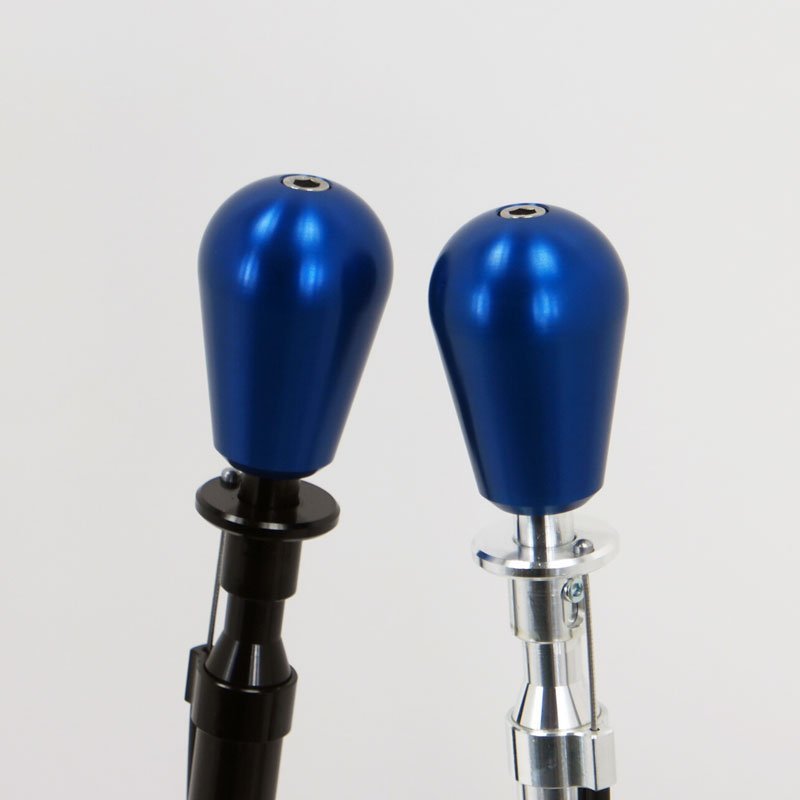

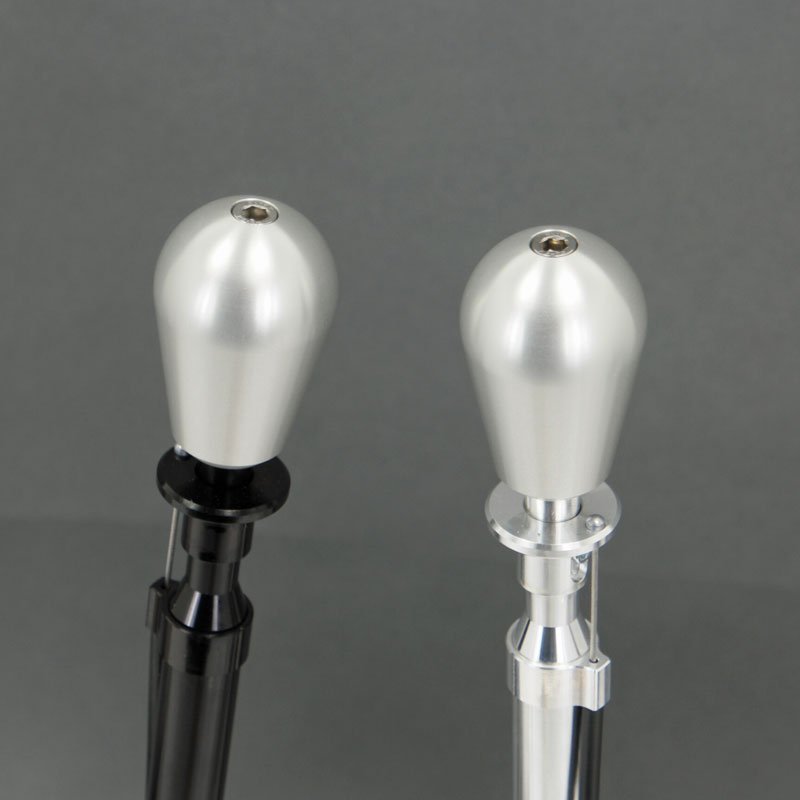

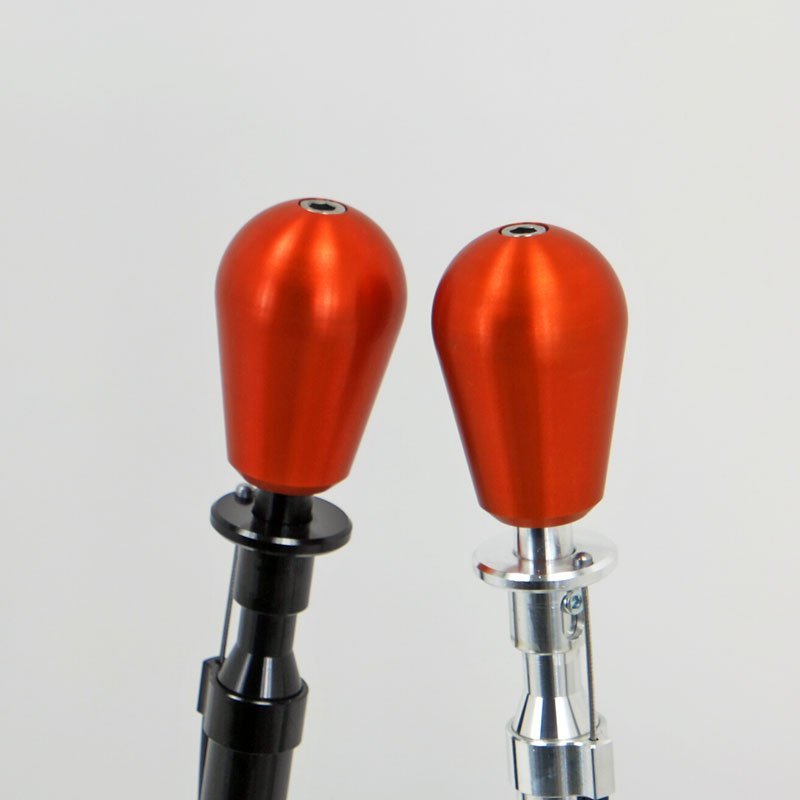

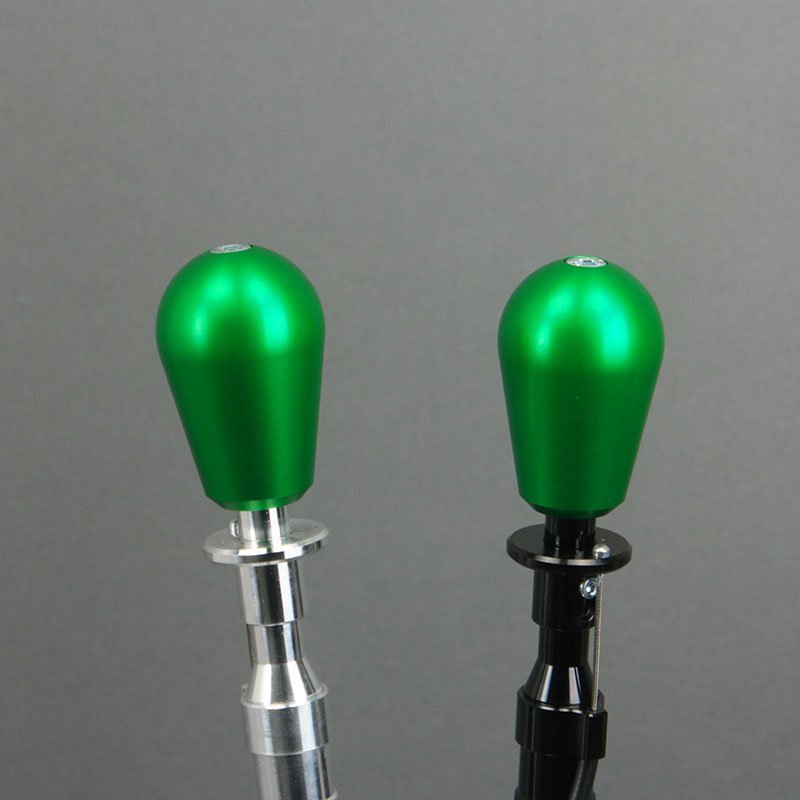

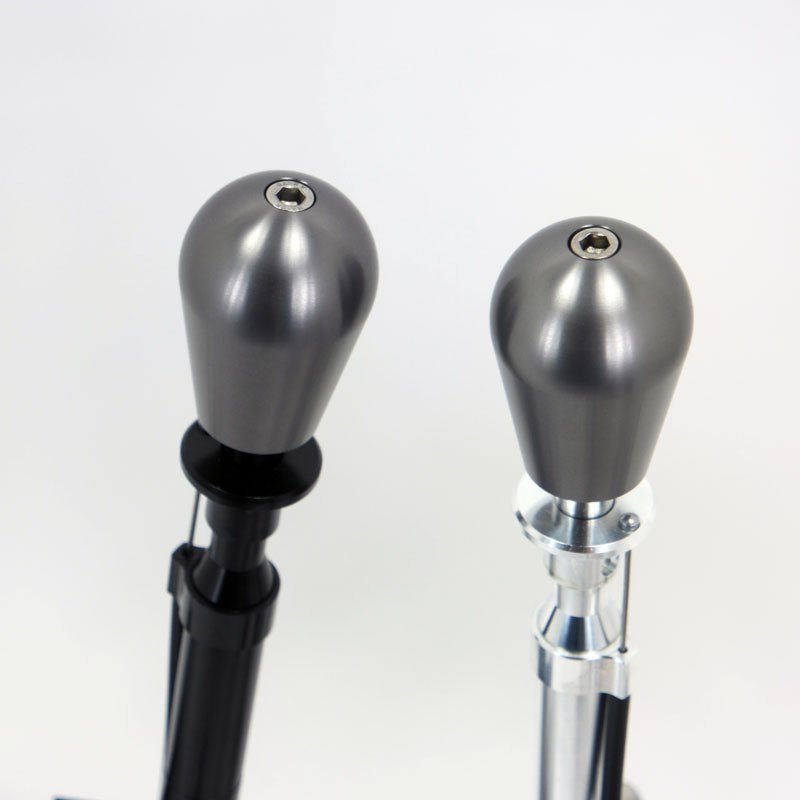

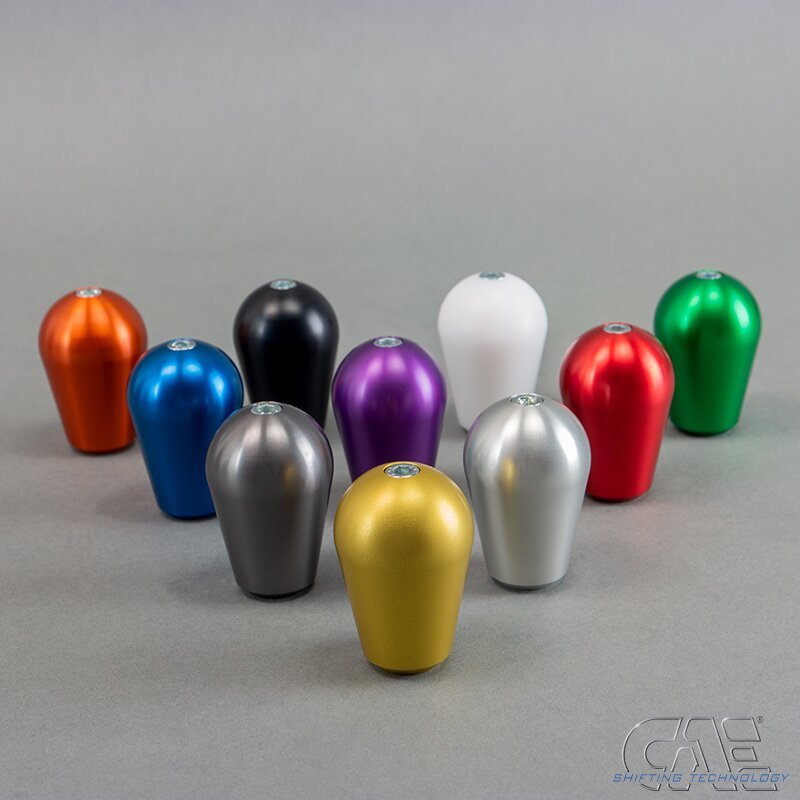

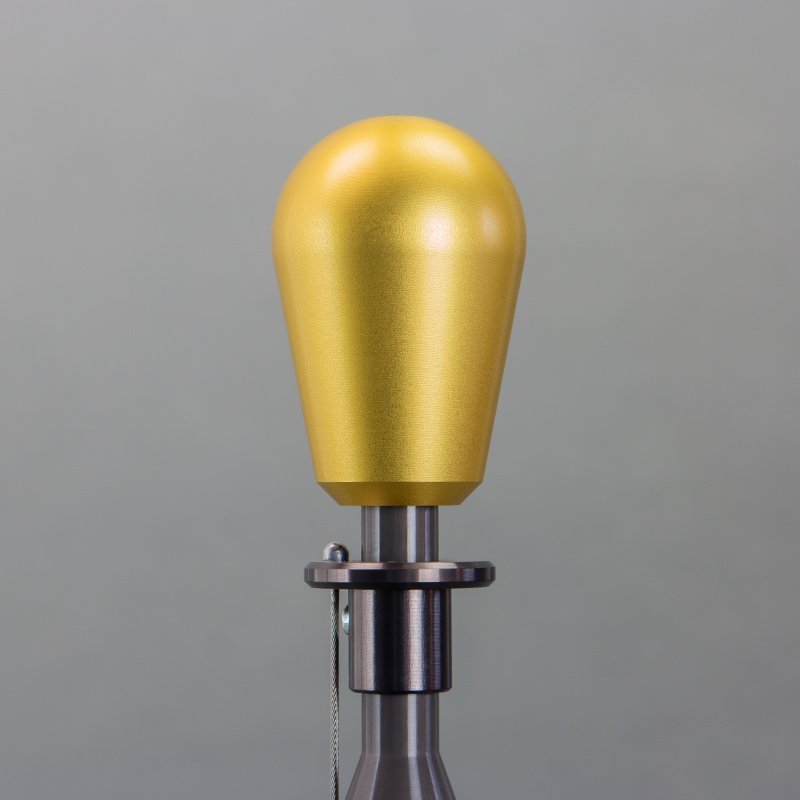

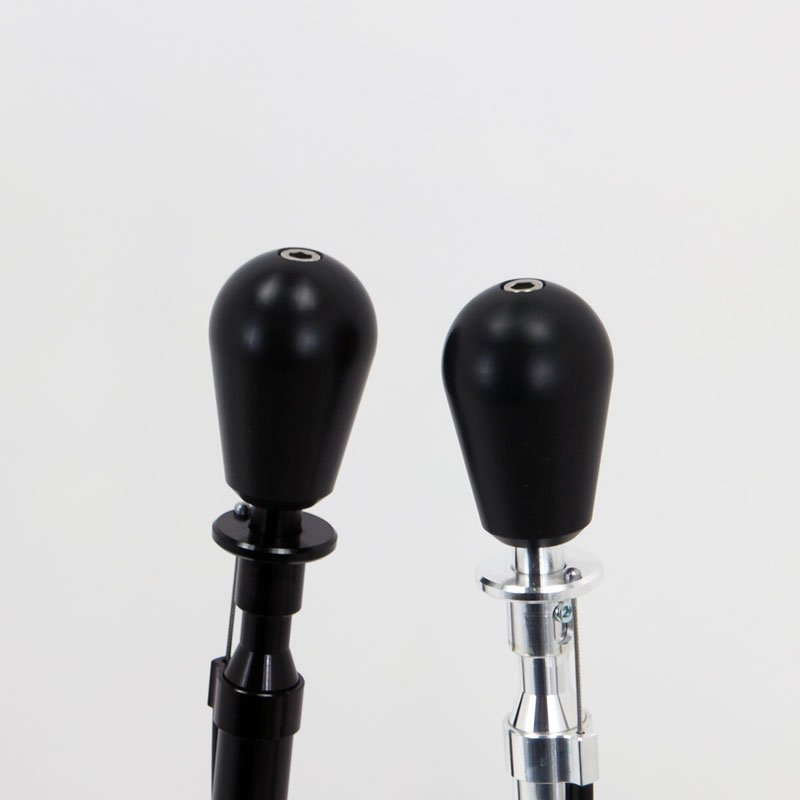

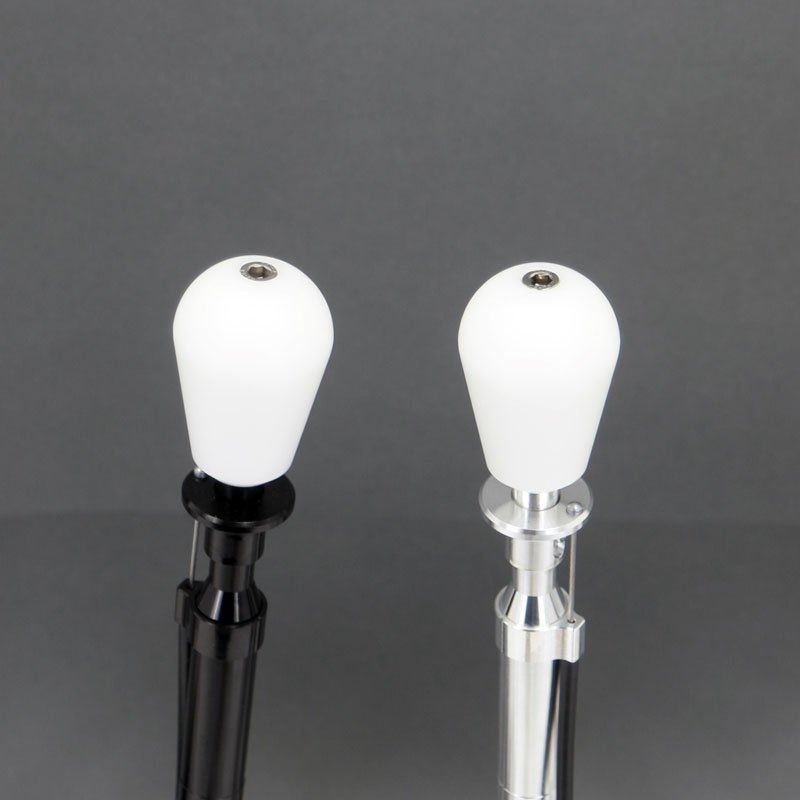

• Shift knob free selectable in different versions/ Colors


  Total height:	approx. 320 mm
  Total length:	approx. 220 mm
  Dimensions of base plate:	approx. 230 x 115 mm
  Shifting travel:	approx. 65 mm
  Selector travel (transverse direction):	approx. 65 mm
  Weight (complete):	approx. 3,3 kg
  Offset of the gear lever knop (back / up):	approx. 60 / 130 mm

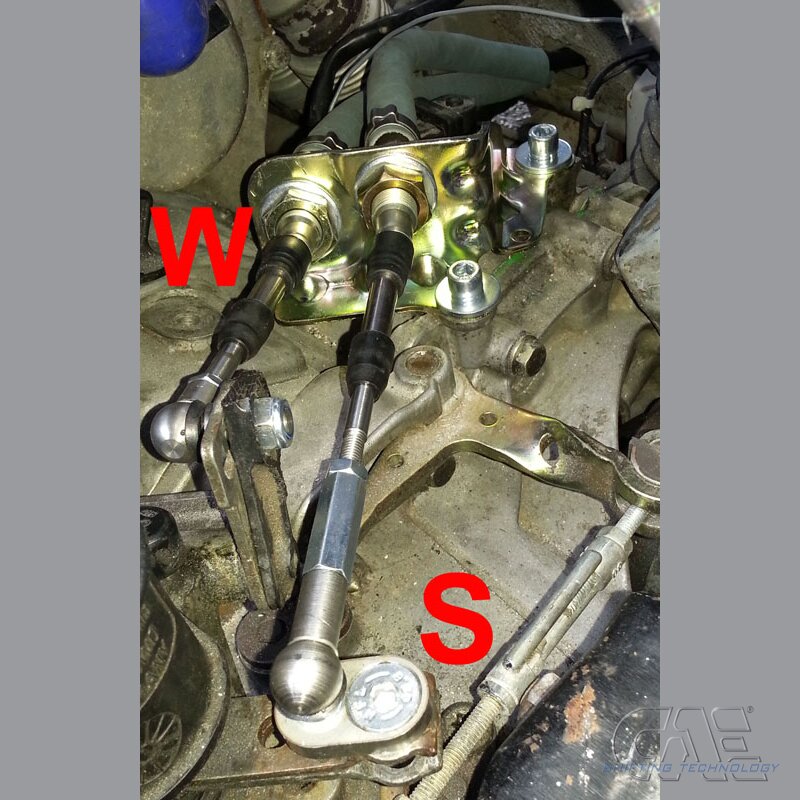

  After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall. Shifter is delivered as a complete kit including CAE HD gearshift cables. Optimal adapted for 02A transmission in which the gearshift cables arrive side by side on the transmission. 02A transmission with gearshift cables, which lie one above the other must be converted to the other version! Find the suitable gearbox cable bracket (10113WID) under "Accessories" (see below).

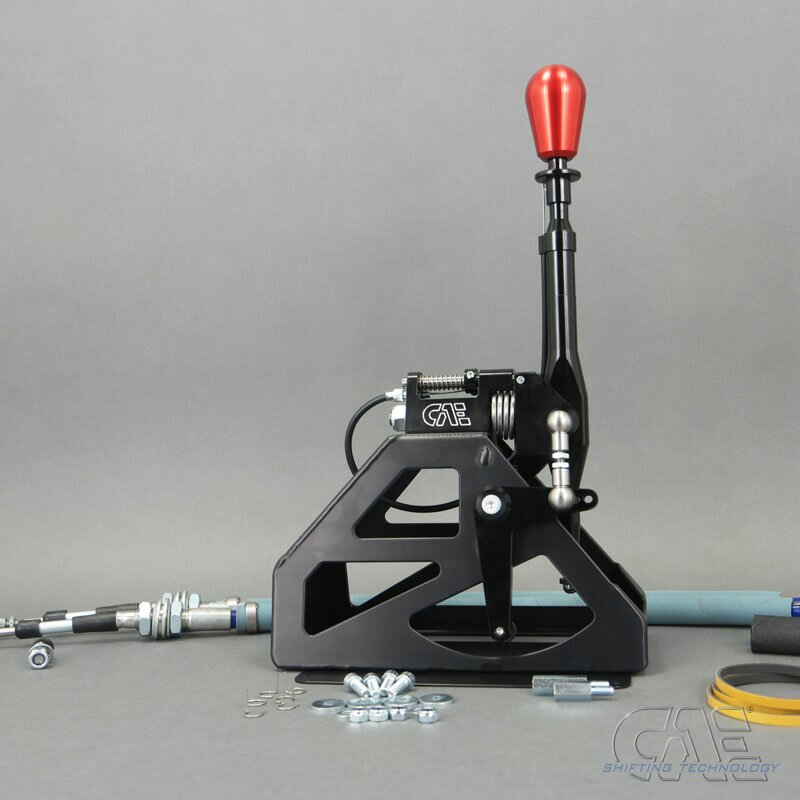

  Delivery: Shifter completely assembled, covering plate for tunnel opening, CAE HD gearshift cable, all screws and small parts, installation instructions

  CAUTION
  Almost all shifters are available with german TÜV papers and are therefore street legal
  Please ask before ordering
