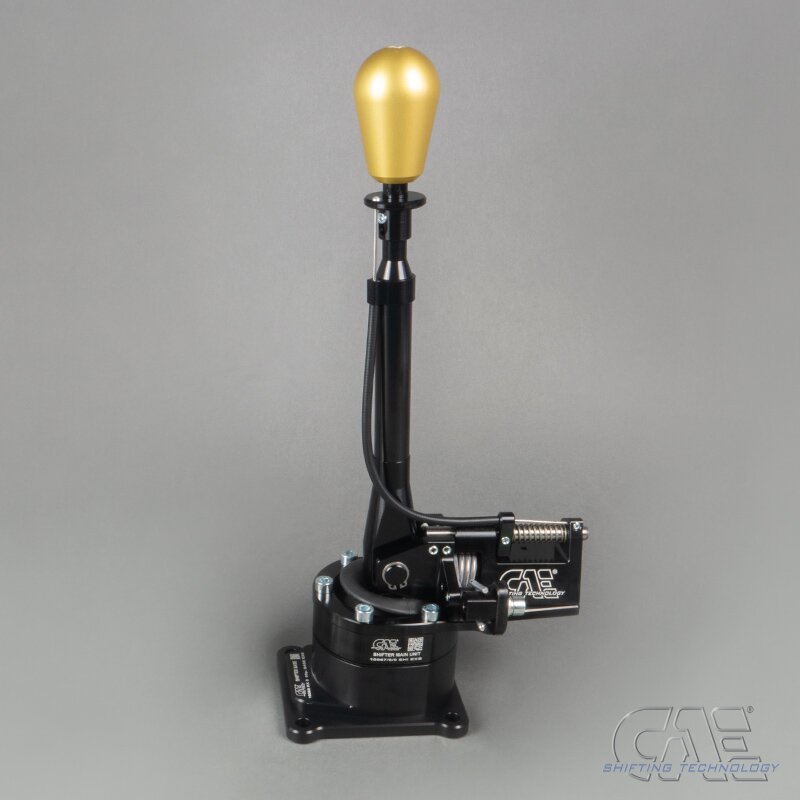

CAE Ultra Shifter for Mazda RX8 6 Speed Black Anodized

CAE Ultra Shifter for Mazda RX8 mk1 (2004-2008)
with 6-Speed Gearbox (only Aisin)

•  !! this Shifter WONT work with 5 Speed Gearbox !!

  • Short and super-precise shifting travel, exclusively H-pattern.
  • The clutch system remains in its original form.
  • Racing-style appearance.
  • Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 55 mm.
  • Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
  • Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy
  • Problem-free shifting of gears under stress or in curves.
  • Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
  • Right/left stops and reverse gear stop adjustable separately.
  • Complete pre mounted shifter for direct mounting to the gearbox with all small parts and fastening material.
  • Shifters is intended for vehicles with Center console, it have to be modified sligthly

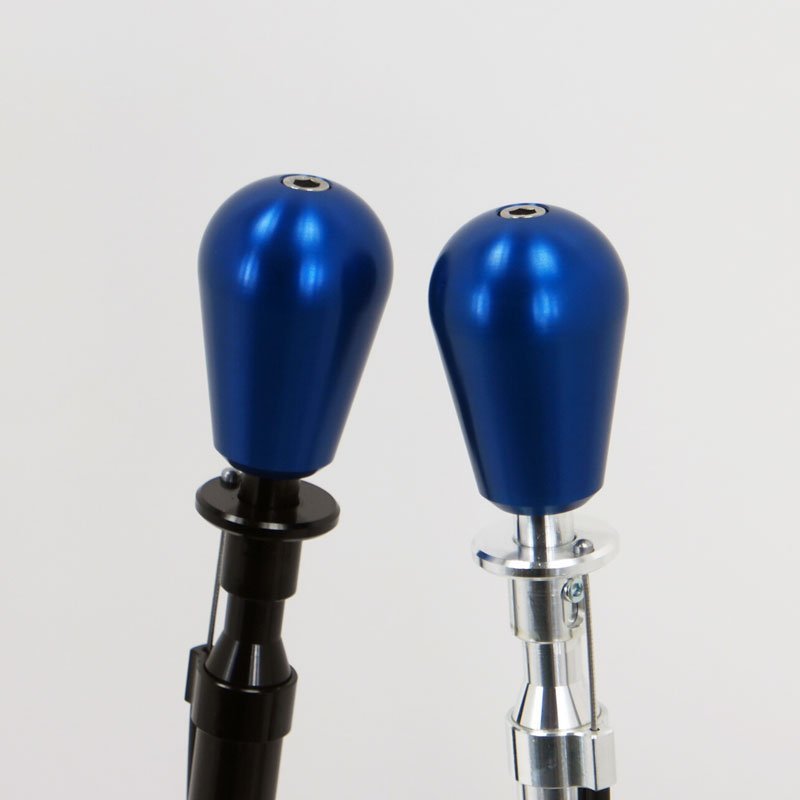

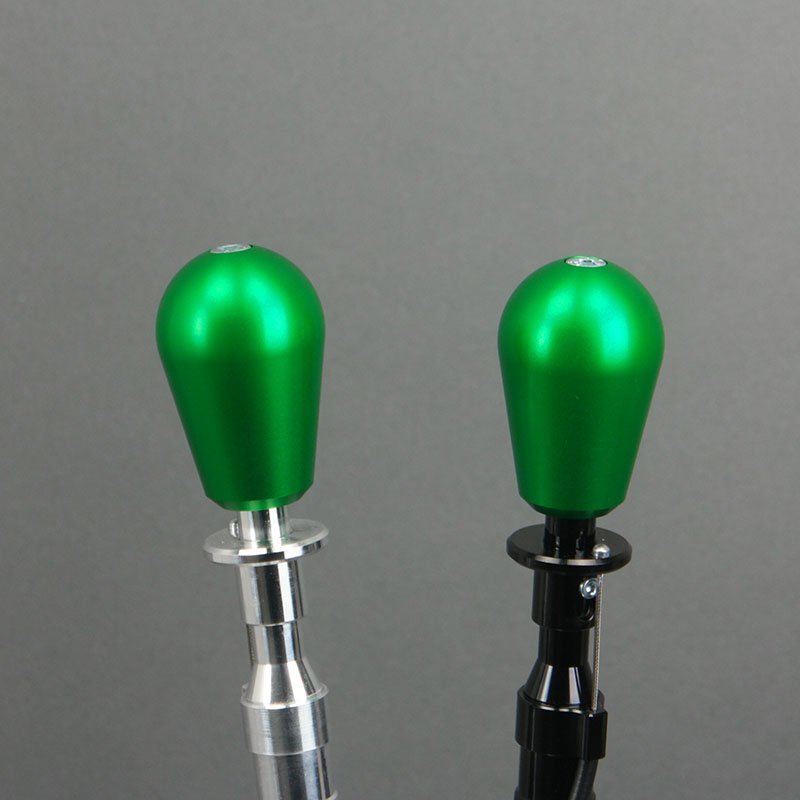

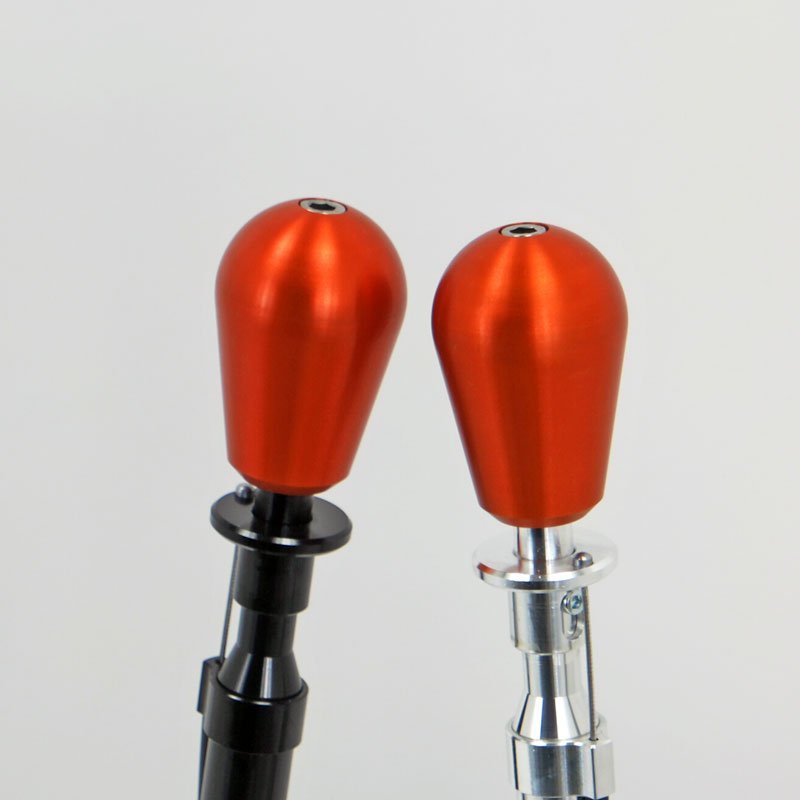

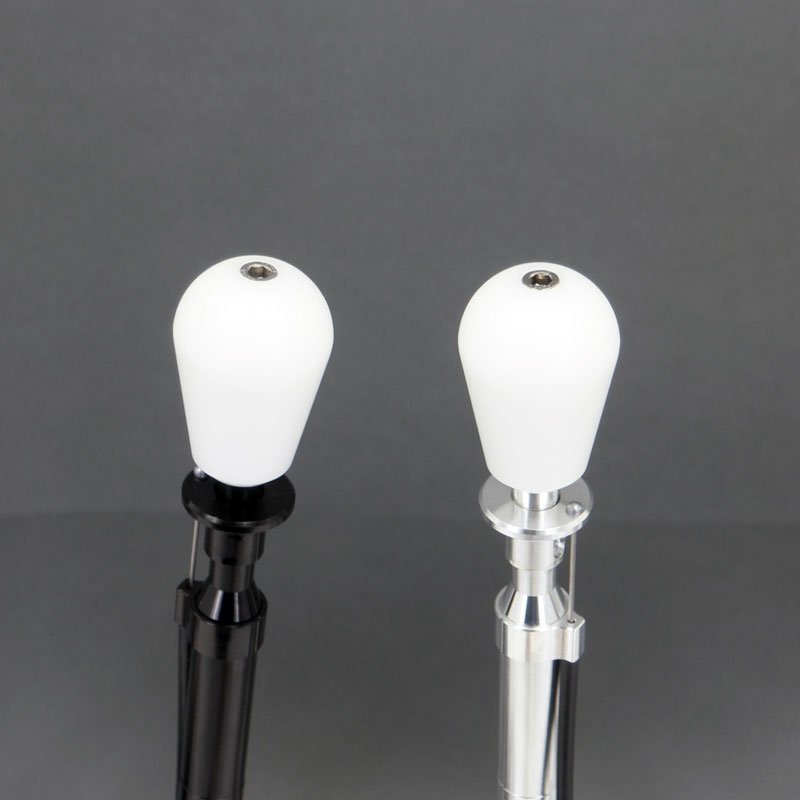

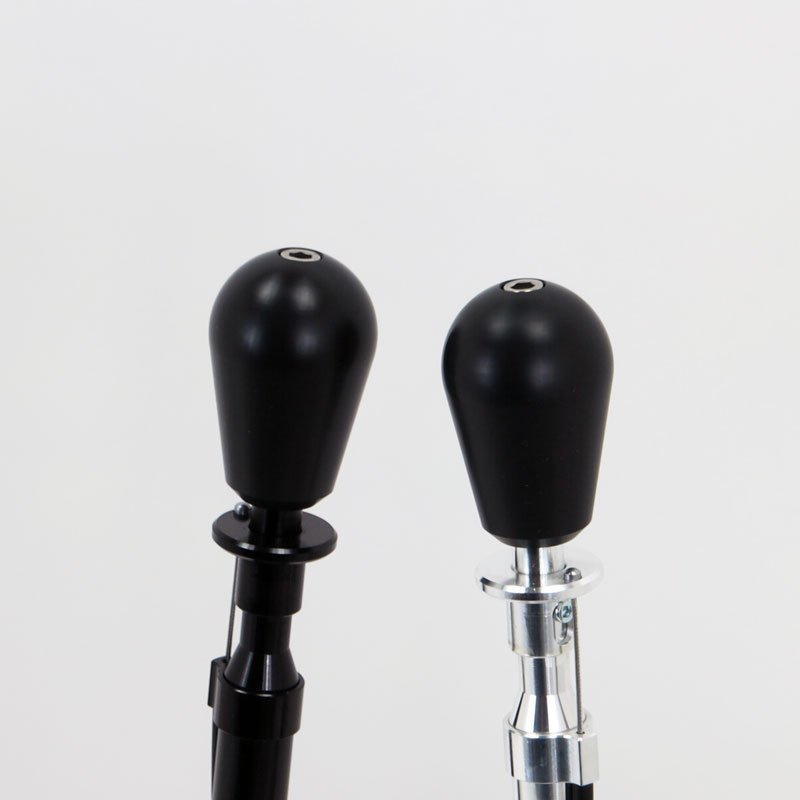

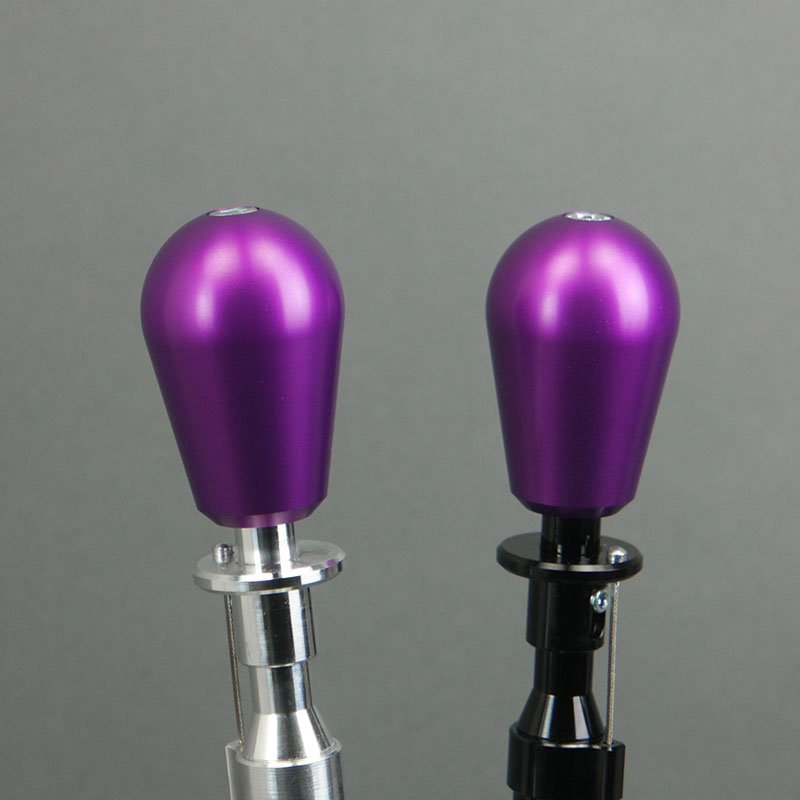

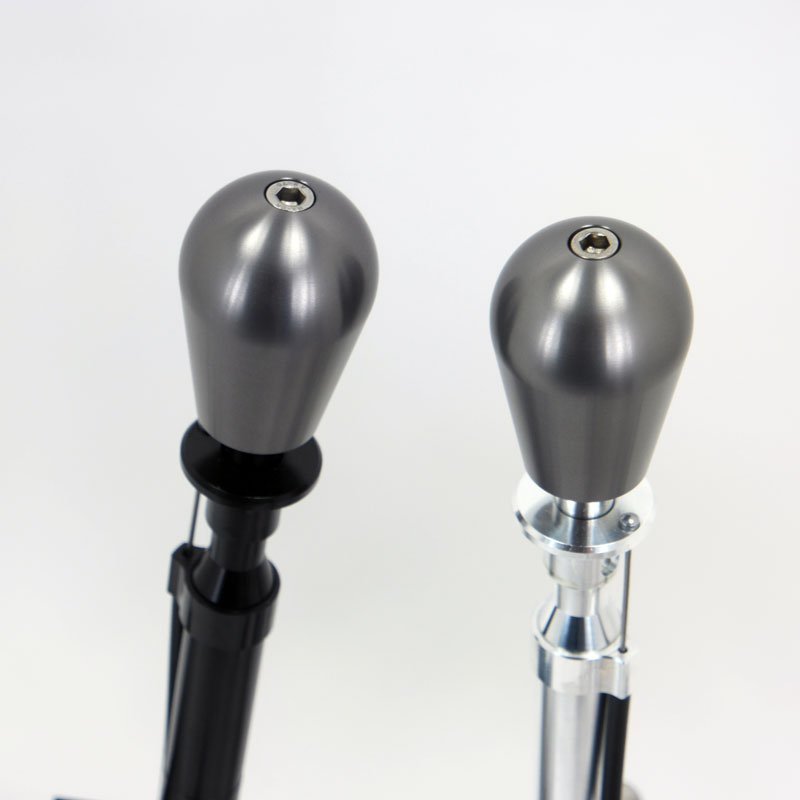

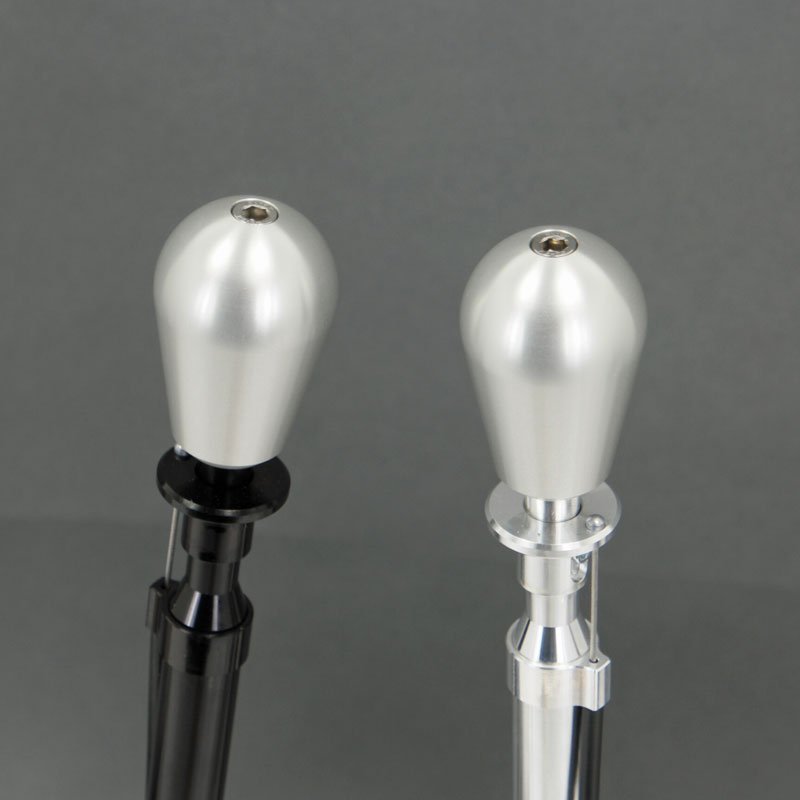

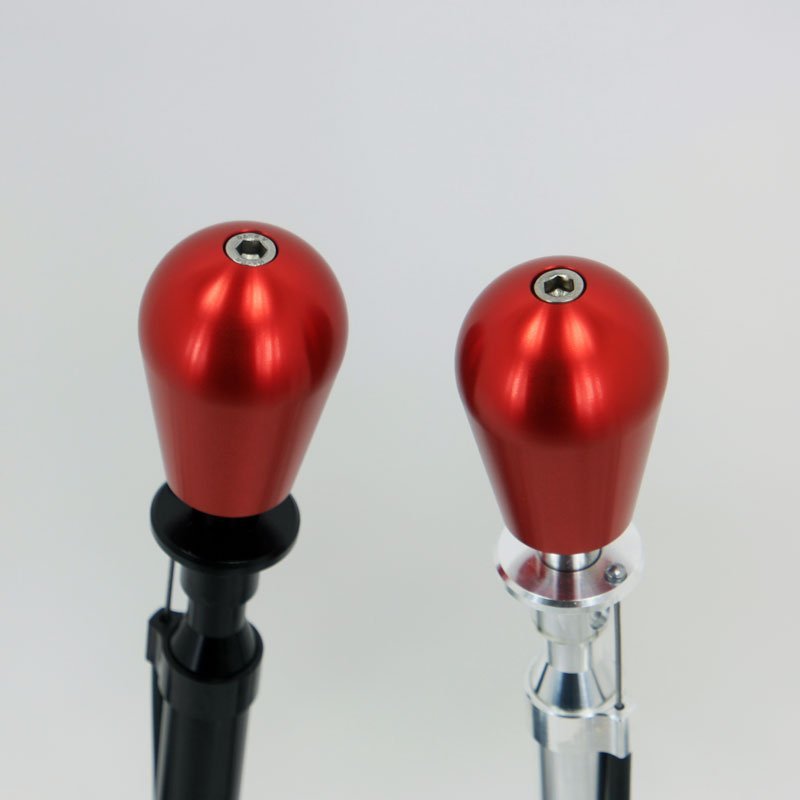

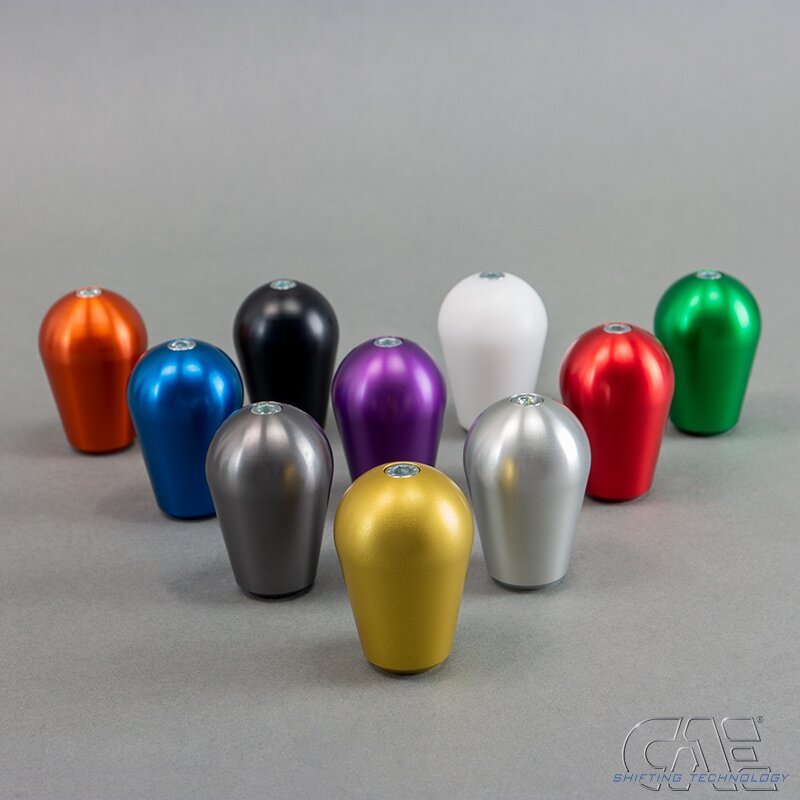

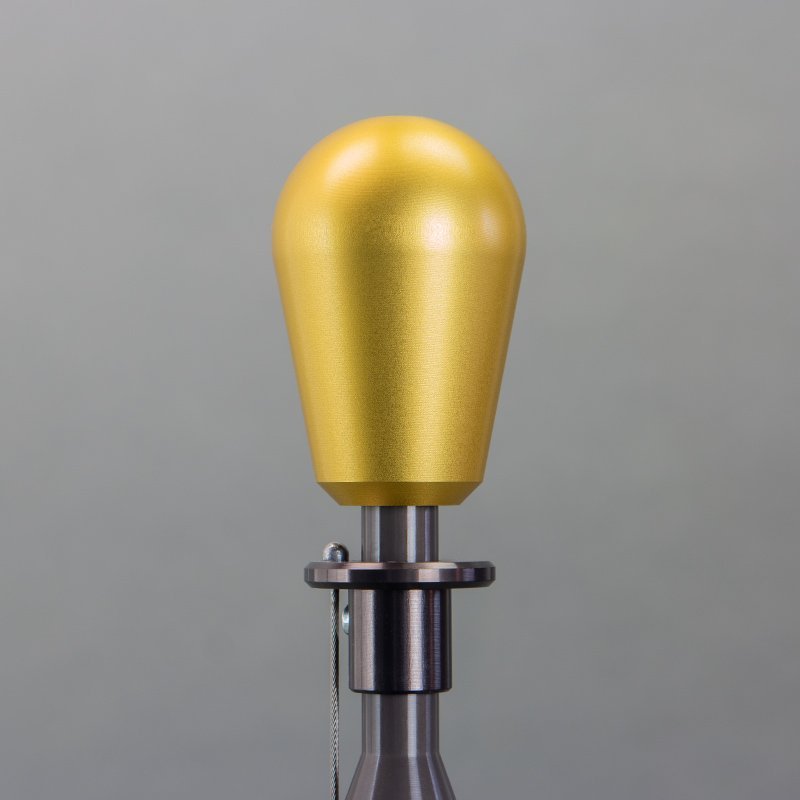

  • Shift knob free selectable in different versions/ colors



    Total height:	approx. 300 mm
    Total length:	approx. 130 mm
    Dimensions of base plate:	approx. 120 x 85 mm
    Shifting travel:	approx. 65 mm
    Selector travel (transverse direction):	approx. 55 mm
    Weight (complete):	approx. 1,05 kg
    Offset of the gear lever knop (back / up):	depending on vehicle type approx. 0 / 100 mm

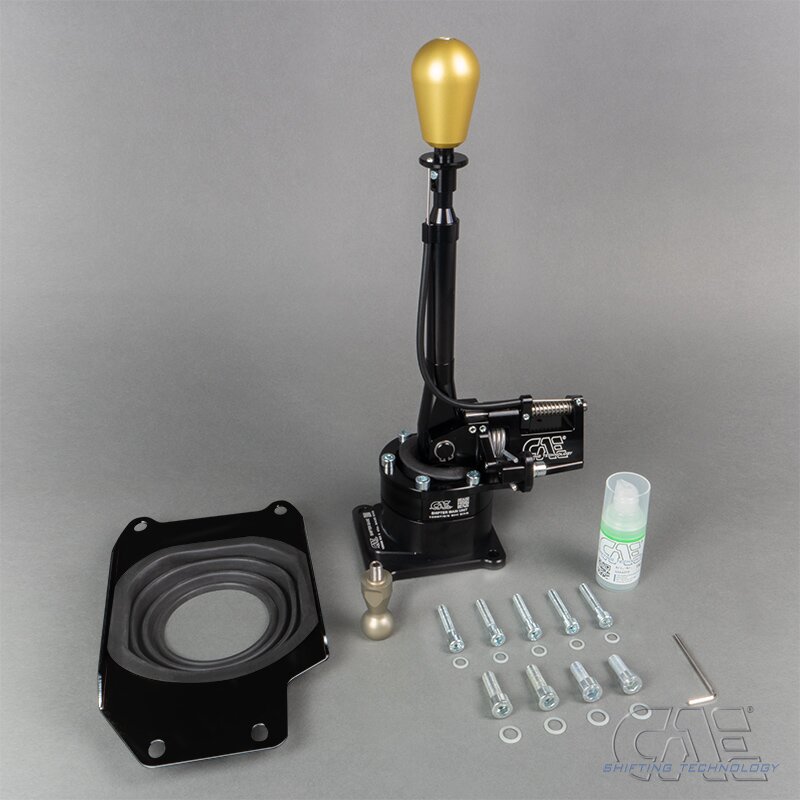

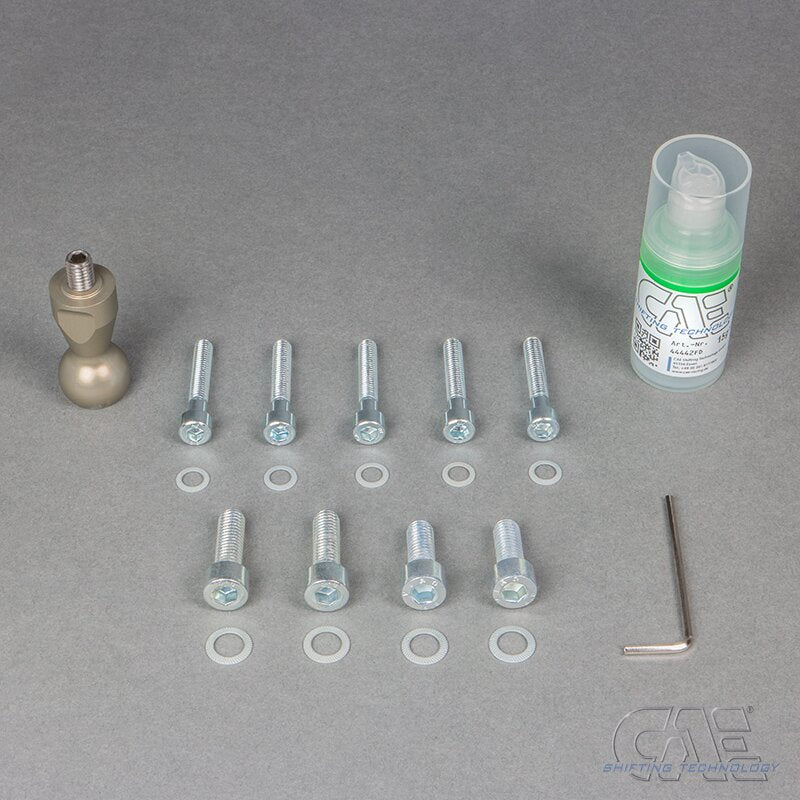

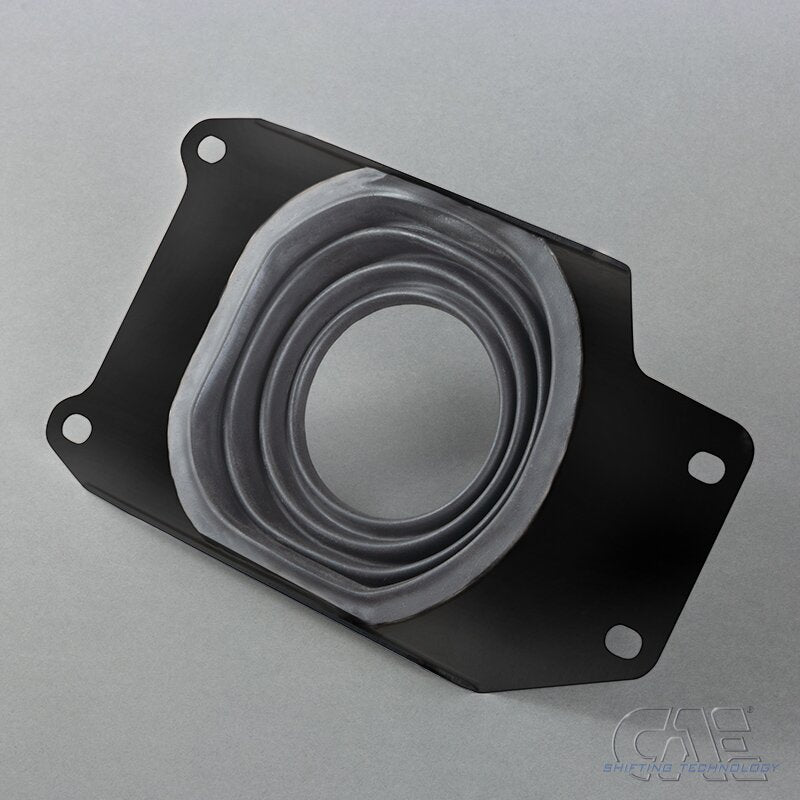

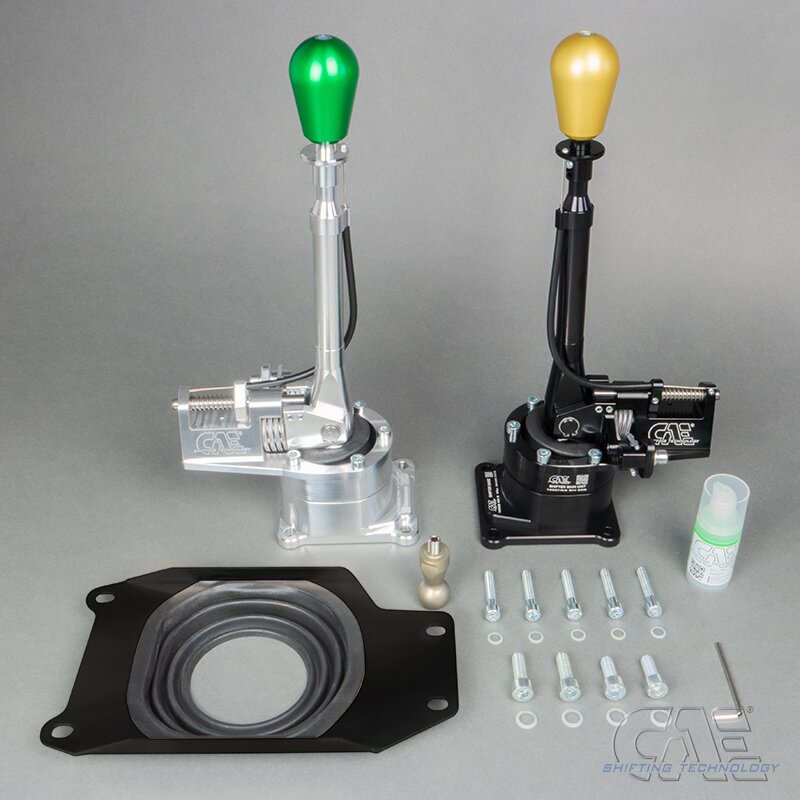

    Delivery: Shifter completely assembled, Sealing sleeve for transmission tunnel, all screws and small parts; Surface sealant.

    Installation Manual for download you will find here behind the "PDF" tab ( coming Soon)

  ATTENTION
  All CAE Ultra Shifters are TÜV® approved and street legal; ; please aks for your certificate while ordering
