SPL Lower Control Arm + Rear Toe Arm + Rear Toe Lockout 08+ WRX/STI

820.00

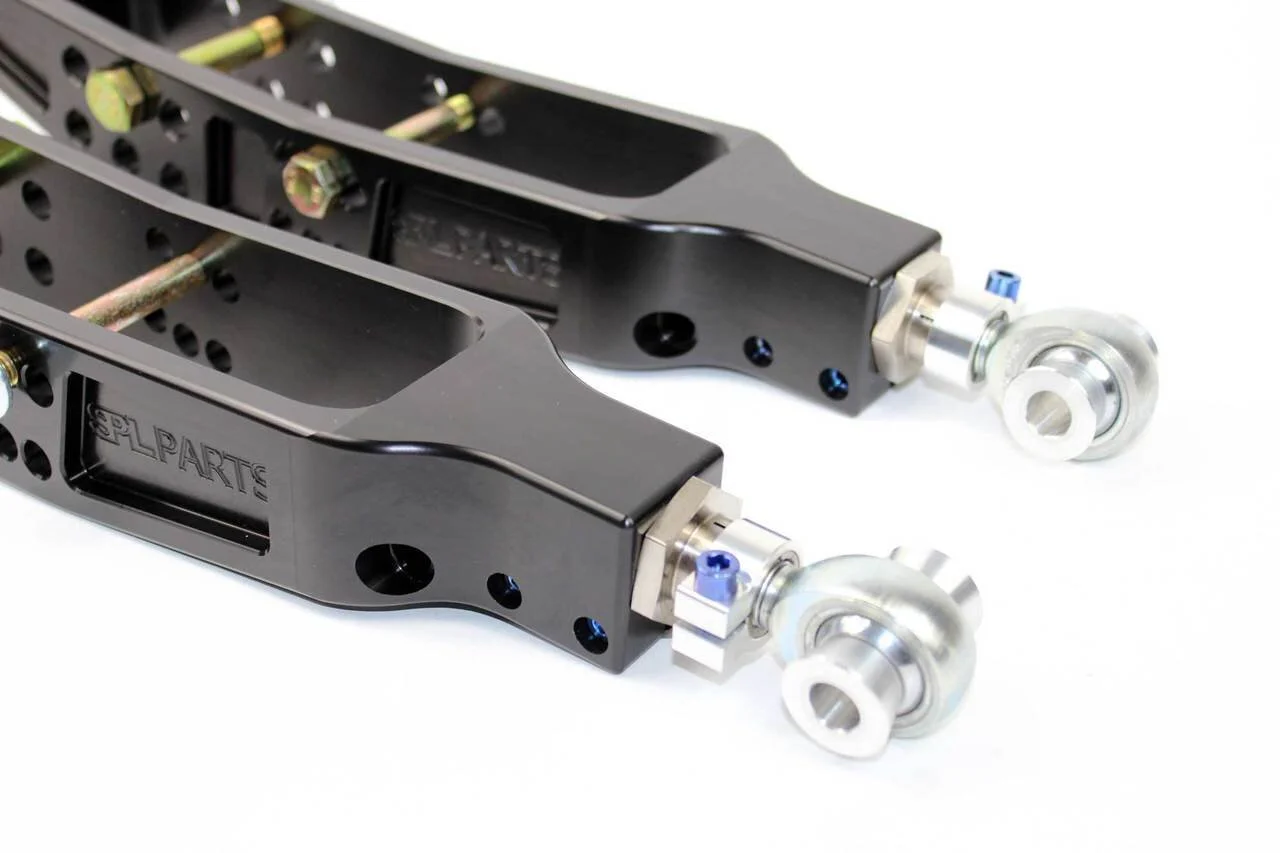

SPL Lower Control Arms

SPL Parts Titanium Series adjustable Rear Lower Camber Arms (RLL) increase stability and response by eliminating bushing deflection and offer a wide range of camber adjustment. These arms are designed for use in high performance street and race vehicles. Without factory camber adjustment, a lowered FR-S/BRZ requires an adjustable control arm to achieve your desired alignment settings to maximize tire wear and handling.  Three position mounting holes for sway bar endlinks and shock mounting allows you to alter geometry to prevent endlink binding, quickly adjust motion ratios, and resulting spring and sway bar effectiveness. Simply put, it’s like having adjustable spring rates without a spring replacement.

Using FEA (Finite Element Analysis) our CNC milled 6061-T6 Billet Aluminum Arms are designed to exceed factory strength and durability. Our exclusive Hybrid Adjuster is comprised of electroless nickel plated 4130 Chromoly. SPL Blue Anodized Titanium hardware and 6061-T6 Aluminum Clamps help reduce weight and prohibit corrosion while offering quick and easy adjustment.

Sold as a pair.

Made in the USA.

SPL Rear Toe Arms

SPL Parts adjustable Rear Toe Arms (RTA) for the Scion FR-S and Subaru BRZ platform increase stability and response by eliminating bushing deflection and offer a wide range of toe adjustment. These arms are designed for use in high performance street and race vehicles.  A lowered FR-S/BRZ will need adjustment to get toe back in spec to ensure proper tire wear and handling.  Even small changes to ride height and camber will affect toe settings.  Black Anodized 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment.  The included Eccentric Lockout (EL) kit replaces the factory eccentric bolts.  Eccentric bolts are known to slip during hard cornering altering your alignment settings.  Installing our Eccentric Lockout kit will allow the toe arms to safely be unbolted and bolted back on the car while maintaining alignment settings.  Our lockout plates are CNC machined from 6061-T6 Aluminum and supplied with CAD plated grade 10.9 hardware for absolutely zero slip.

Sold as a pair.

Made in the USA.

Application: 2013+ Scion FR-S/Subaru BRZ/Toyota GT86, 2008+ Subaru WRX

Quantity:
Add To Cart

Additional Info

SPL Parts Rear Camber Arms Features:
•    Lightweight Aluminum and Titanium construction
•    Electroless nickel plated 4130 Chromoly Hybrid Adjuster for quick adjustment
•    Computer Aided Design with the aid of Finite Element Analysis
•    Low friction 3-piece Teflon lined FK Heim Joints/Rod Ends made in CT, USA
•    Multiple mounting points for shock and sway bar provides motion ratio adjustment
•    CAD plated grade 10.9 hardware

SPL Parts Adjustable Rear Toe Arms Features:
•    Lightweight Aluminum, Titanium, and Stainless Steel construction
•    Gun-drilled 2024 Aluminum to reduce unsprung weight
•    Computer Aided Design with the aid of Finite Element Analysis
•    Rotating clamp design allows for easy access to lock down your alignment settings
•    Low friction 3 piece Teflon lined FK Heim joints/rod ends
•    Included Eccentric Lockout Kit
